What is Geomembrane HDPE 1mm And its Applications?
Geomembrane HDPE 1mm is a artificial barrier liner manufactured from high-density polyethylene (HDPE) resin with a nominal thickness of 1mm. This material is famend for its high-quality chemical resistance, extraordinarily excessive impermeability, tremendous UV resistance, and accurate mechanical strength. Its core characteristic is to serve as a dependable impermeable barrier layer, principally utilized in environmental safety and civil engineering fields. Examples consist of landfill and tailings pond liners, synthetic lake seepage control, wastewater therapy pond covers, and leak prevention in a range of water conservancy projects. It stands as one of the key substances for establishing cutting-edge environmental infrastructure.
1. What is Geomembrane HDPE 1mm?
1.1 Geomembrane HDPE 1mm: A Comprehensive Overview
High density polyethylene geomembrane, specially these with a 1mm thickness specification, are a broadly used and widely wide-spread cloth in geotechnical engineering and environmental protection. This 1mm geomembrane is manufactured thru blow molding or extrusion processes, the place HDPE liner is heated and extruded via a mould to shape a non-stop film, making sure uniform thickness and most appropriate cloth quality. Its uncooked material, high-density polyethylene, is a polymer famend for its great chemical resistance, durability, and mechanical properties. The 1mm thickness represents a quintessential element in attaining a stability between cost-effectiveness and performance. This geomembrane liner finds considerable application in eventualities such as landfill liner, pond liner, canal liner, and secondary cofferdam systems.
1.2 Defining Geomembrane HDPE 1mm: The Role of Material and Thickness (1mm)
To wholly outline a 1mm thick excessive density polyethylene HDPE geomembrane, one need to apprehend the crucial synergy between its material composition and bodily thickness. The 1mm thickness is no longer arbitrarily set however a cautiously chosen benchmark fee that achieves an greatest stability between overall performance and cost-effectiveness. This thickness promises wonderful puncture and tear resistance, making sure long-term integrity beneath vast hundreds and stresses. Compared to thinner liners, it varieties a greater sturdy barrier, successfully containing unstable natural compounds (VOCs) and gases. Essentially, “HDPE” defines the liner's intrinsic pleasant and performance, whilst “1mm” quantifies its robustness, sincerely setting up its suitability for high-demand impermeable initiatives such as landfill liner, tailings dam, and industrial pond.
1.3 Why Choose Geomembrane HDPE 1mm?
- Exceptional Chemical Resistance: HDPE is really inert, providing exceptional resistance to a huge vary of aggressive chemicals, acids, alkalis, and solvents, making it best for containing leachate and industrial waste.
- Superior Mechanical Strength: The 1mm thickness geomembrane presents excessive tensile strength, puncture resistance, and environmental stress crack resistance (ESCR), making sure the liner keeps its integrity at some stage in and after installation.
- Impermeable Barrier: Geo membranes HDPE 1mm gives an extraordinarily low hydraulic conductivity, efficaciously stopping the migration of drinks or vapors into the surrounding soil and groundwater, a fundamental aspect in environmental protection.
- UV and Weather Resistance: Carbon black components are blanketed to shield the polymer from ultraviolet radiation degradation, permitting for prolonged out of doors publicity besides huge loss of performance.
- Cost-Effectiveness: While presenting top class performance, its sturdiness and lengthy carrier lifestyles (often exceeding 50 years) limit the want for future remediation or replacement, imparting awesome lifecycle value.
2. How Geomembrane HDPE 1mm is Produced (Detailed Process)
2.1 Geomembrane HDPE 1mm Raw Material Selection and Preparation
2%–3% carbon black for fine UV stabilization, which prevents cloth degradation underneath sunlight.
Antioxidants to withstand thermal oxidation throughout manufacturing and discipline use.
Optional processing aids to decorate soften drift and sheet uniformity.
The manufacturing starts offevolved with top class high-density polyethylene (HDPE) resin pellets, chosen for their most suitable chemical resistance and mechanical strength.
- To make certain long-term durability, the pellets are blended with cautiously measured additives:
The mixing technique is executed below strict manage to assurance homogeneity, so that each and every phase of the geomembrane famous the identical bodily and chemical properties.
2.2 Geomembrane HDPE 1mm Melting and Extrusion
The blended HDPE combination is fed into a large-capacity extruder, the place it is progressively heated to a molten kingdom underneath managed temperatures and pressures.
The molten fabric is then compelled thru a flat sheet die, forming a non-stop sheet of HDPE.
At this stage, the goal 1mm thickness is roughly established. The flat die is exactly engineered to distribute the molten polymer evenly, minimizing versions in thickness.
2.3 Calendering and Thickness Calibration
Final thickness calibration to a tolerance of 1.0mm ± 0.1mm.
Surface smoothing, developing a dense, uniform, and defect-free finish.
Rapid cooling, which stabilizes the polymer shape and prevents warping or shrinkage.
The freshly extruded sheet at once enters a multi-roll calendering system, the place a number of polished metal rolls follow excessive pressure.
- This system achieves more than one functions:
Advanced temperature and strain controls make certain steady cloth nice for the duration of the manufacturing run.
2.4 Online Quality Monitoring
As the sheet passes thru the calendering line, computerized thickness scanners continually reveal the geomembrane.
The device detects any micro-deviation in thickness, with real-time changes made to keep uniformity.
This on line monitoring ensures that the whole geomembrana 1mm roll meets stringent global requirements for impermeability and strength.
2.5 Cooling, Trimming, and Finishing
After leaving the calendering rolls, the membrane hdpe undergoes a remaining cooling stage, the place it absolutely solidifies whilst holding its engineered dimensions.
The sheet edges are exactly trimmed to cast off irregularities and hold uniform roll width.

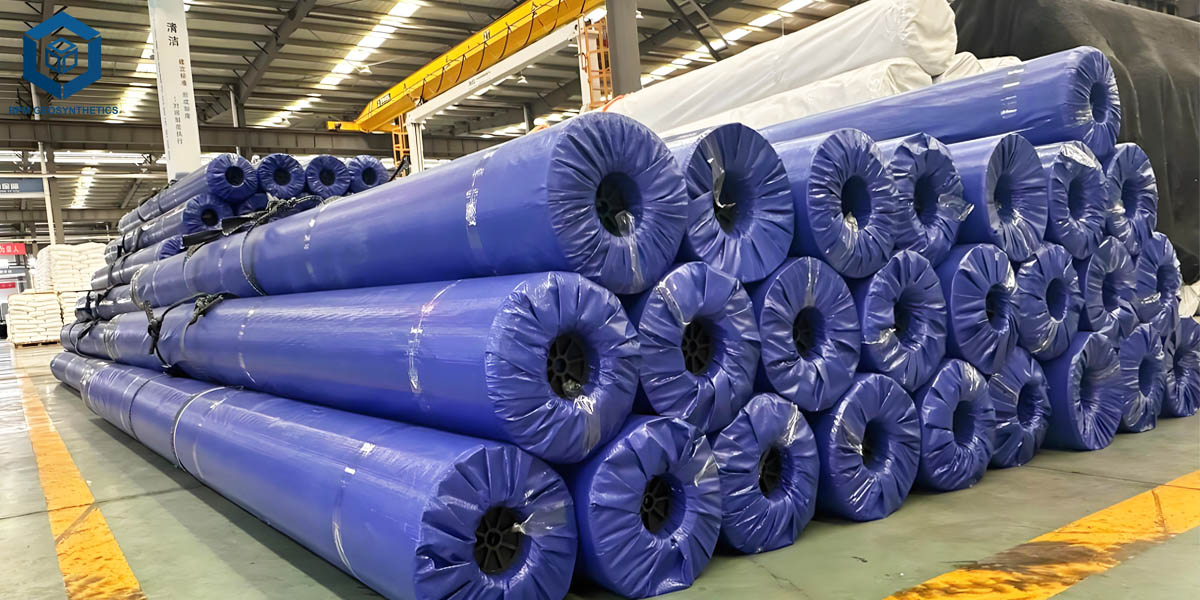

The completed product is then wound into giant rolls, which approves for simpler handling, storage, and transportation.
2.6 Labeling, Packaging, and Shipment
Each roll is labeled with entire product specifications, inclusive of thickness, width, length, batch number, and manufacturing date.
Rolls are wrapped and packaged to guard towards dust, moisture, and bodily harm at some point of storage or shipping.
Finished rolls are then transferred to warehouses or without delay organized for cargo to undertaking web sites worldwide.
2.7 Process Control and Assurance of Quality
Throughout production, each and every step is monitored underneath strict first-rate manage protocols.
Samples are examined for tensile strength, puncture resistance, elongation, and impermeability earlier than approval.
This ensures the impermeable geomembrane is free of impurities, pinholes, or defects, making it appropriate for indispensable functions such as landfill liners, wastewater ponds, reservoirs, and mining containment systems.
3. Meeting ASTM and GRI Standards for Geomembrane HDPE 1mm
ASTM Standards provide the foundational check strategies and material houses that all HDPE geomembrane should meet. Key requirements for a 1mm HDPE liner include:
- ASTM D5199: Standard Test Method for Measuring the Nominal Thickness of Geosynthetics. This verifies the HDPE geomembrane liner meets the 1mm specification.
- ASTM D6392: Standard Test Method for Determining the Tensile Properties of geomembrane sheet. This measures electricity and elongation.
- ASTM D1004: Standard Test Method for Tear Resistance (Graves Tear) of the hdpe membrane.
- ASTM D7238: Standard Test Method for Effect of Exposure of Unstressed high density polyethylene geomembrane to Liquids. This evaluates chemical resistance.
- ASTM D7409: Standard Test Method for Carbony Content of Polyethylene Geomembrane, indicating resin first-class and oxidative resistance.
Furthermore, most North American tasks require compliance with GRI-GM13, the "Standard Specification for Test Methods, Test Properties and Testing Frequency for polypropylene geomembrane." This specification is extra complete than person ASTM tests; it consolidates all vital overall performance properties—including density, soften index, tensile properties, tear resistance, puncture resistance, stress crack resistance, and carbon black content—into a single, stringent specification with minimal required values and checking out frequencies. A manufacturer's Certificate of Compliance (CoC) pointing out conformance to GRI-GM13 presents engineers and proprietors with the self belief that the furnished 1mm HDPE geomembrane is match for its supposed motive and will supply long-term performance.
4. Geomembrane HDPE 1mm Application
4.1 Geomembrane HDPE 1mm for Environmental Containment

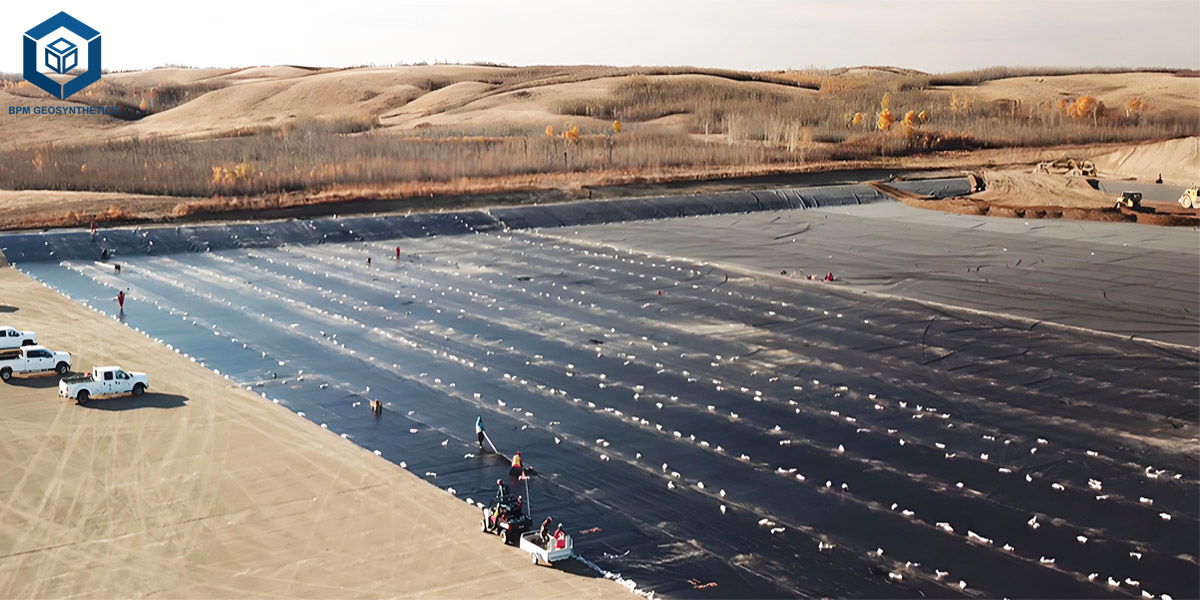

This is the most annoying application. In modern sanitary landfills, the 1mm HDPE geomembrane is the foremost liner in composite liner systems, stopping poisonous leachate from contaminating soil and groundwater. Similarly, in mining operations, it traces tailings dams and heap leach pads, containing harsh chemical compounds and heavy metals used in mineral extraction, thereby safeguarding surrounding ecosystems.
4.2 Geomembrane HDPE 1mm for Water Resources & Conservation
Here, the geomembrane's function shifts from containment to preservation. It is the impermeable geomembrane liner of desire for potable water reservoirs, irrigation canals, and decorative or leisure lakes, appreciably decreasing seepage losses and making sure environment friendly water storage and delivery. In aquaculture and shrimp farming ponds, it presents a clean, managed environment, prevents water loss, and simplifies pond cleansing and maintenance.
4.3 Geomembrane HDPE 1mm for Civil & Industrial Applications
Its utility extends to infrastructure projects. It is used as a capillary damage and vapor barrier beneath highways and rail lines to forestall subsoil erosion. In wastewater remedy plants, it strains anaerobic lagoons and sludge tanks. Industrial purposes include secondary containment around gas storage tanks and chemical processing areas, mitigating the hazard of unintentional spills.
From keeping apart hazardous waste to making sure water security, the 1mm HDPE geomembrane is an fundamental aspect in constructing a sustainable and resilient infrastructure.
Conclusion
HDPE Geomembrane 1mm is a synthetic impermeable fabric with high-density polyethylene as its core uncooked material. Its 1mm thickness achieves an most fulfilling stability between durability, cost-effectiveness, and versatility.
The Best Project Material Co., Ltd.（BPM Geosynthetics）is a specialised producer of geomembrane, operating its very own unbiased production amenities and proprietary formulations. With 5 manufacturing lines, each day output reaches eighty tons. succesful of producing each 1mm smooth geomembrane and 1mm textured geomembrane. Product first-class complies with ASTM widespread and GRI-GM13 specifications. BPM's 1mm geomembrane, wonderful through exquisite chemical stability, UV ageing resistance, and mechanical strength, serves as a necessary engineering answer for fluid migration limitations and environmental safety in touchy areas. Its purposes have elevated past ordinary landfill and mining seepage manipulate into rising sectors such as strength (e.g., stormwater administration in photovoltaic fields), agriculture (large-scale biogas slurry storage), and ecological restoration (isolation of contaminated sites). This evolution displays the development of engineering seepage manipulate science from “passive protection” to “active ecological regulation.” Beyond being a element of infrastructure, this cloth serves as a crucial engineering car for reaching sustainable improvement goals.
