Application of BPM Geomembranes in Oil Gas Industry
The oil and gas industry needs robust, chemical-resistant, and long-lasting containment buildings to safely manipulate petroleum products, manner water, drilling fluids, and exceptional hazardous liquids. Whether it is upstream exploration, midstream storage, or downstream refining, the hazard of environmental contamination due to leakage is a steady concern.
BPM geomembranes are engineered high-performance liners that supply optimum containment and environmental safety throughout a large vary of oil and gas industry applications. Designed to stand up to aggressive hydrocarbons, excessive temperatures, and mechanical stress, BPM liners are trusted by operators worldwide.
1. BPM Geomembranes Solve Key Challenges in Oil Gas Industry
Oil and gas operations are regularly carried out in some of the world’s most disturbing environments—from arid deserts and offshore structures to mountainous areas and arctic permafrost. These websites expose substances to a mixture of chemical aggression, mechanical stress, temperature extremes, and logistical constraints. In such harsh conditions, standard containment substances regularly fail to meet long-term overall performance standards.
BPM HDPE geomembranes are specially designed to overcome these challenges, presenting a durable, adaptable, and regulatory-compliant answer for protected and advantageous containment.
1.1 High Chemical Exposure
Oilfield operations contain direct contact with crude oil, diesel, drilling muds, procedure chemicals, and saline produced water, all of which are particularly corrosive.
BPM HDPE liners are examined per ASTM D543 for chemical compatibility.They face up to degradation from hydrocarbons, acids, alkalis, and solvents.Prevent leaching of poisonous supplies into surrounding soils and aquifers.
1.2 Extreme Temperature Fluctuations
Oilfields in deserts or arctic areas ride temperatures ranging from -40°C to over 60°C, inflicting traditional substances to crack or soften.
BPM geomembranes stay bendy and steady throughout broad temperature ranges.Formulated with carbon black and antioxidants for long-term UV and thermal resistance.Suitable for uncovered purposes and freeze–thaw cycles.
1.3 Rough or Irregular Subgrades
Uneven terrain, sharp gravel, or compacted clay can puncture or tear weaker liners throughout or after installation.
BPM HDPE geomembranes provide excessive puncture energy (per ASTM D4833).Compatible with cushioning geotextiles to decorate protection.Excellent tear resistance ensures structural integrity beneath load.
1.4 Complex Installation Conditions
Remote drilling sites, restricted access, and tight timelines make normal liner set up challenging and labor-intensive.
BPM resources prefabricated panels to limit subject welding time.Seam welding the use of warm wedge or extrusion welding strategies is adaptable to web page conditions.Onsite education and technical guide make sure applicable deployment even in restricted locations.
2. BPM Geomembranes Used in the Oil and Gas Industry
2.1 Drilling Mud Pits and Reserve Pits
Drilling operations generate massive volumes of drilling fluids and cuttings, which regularly encompass oil, heavy metals, and chemical additives. BPM HDPE geomembranes are used to line these pits, developing a secure barrier that prevents contaminants from seeping into the surrounding soil or groundwater. These liners face up to constant chemical exposure, mechanical stress from heavy equipment, and temperature fluctuations widespread at drilling sites. By imparting reliable containment, geomembranes help operators comply with environmental insurance policies and minimize highly-priced cleanup risks.
2.2 Secondary Containment Systems
In oilfields and refineries, secondary containment is a vital safety measure to manipulate viable leaks or spills from storage tanks, pipelines, and chemical storage areas. BPM geomembranes are deployed underneath these facilities as an impermeable lining layer. In case of most vital containment failure, the geomembrane effectively captures and isolates hazardous liquids, stopping soil contamination and environmental damage. These liners are engineered to face up to hydrocarbon exposure, UV radiation, and long-term chemical degradation, making positive lasting protection and regulatory compliance.
2.3 Frac Water Storage Ponds
Hydraulic fracturing requires large volumes of water and chemicals, which have to be saved on-site before than injection. BPM geomembranes are used to line frac water ponds to make positive impenetrable containment and stop seepage of possibly toxic substances. These liners are designed to face up to the problematic chemical combos used in fracking fluids and to endure stresses from equipment and fluctuating liquid levels. Properly lined ponds embellish operational effectivity at the same time as defending the surrounding environment from contamination.
2.4 Produced Water Evaporation Ponds
Produced water, a spinoff of oil extraction, in many instances consists of dissolved salts, hydrocarbons, and heavy metals. BPM geomembranes line evaporation ponds to safely contain this fluid at some stage in the evaporation process. The liners have to be surprisingly resistant to salinity and chemical attack, as well as succesful of withstanding immoderate temperatures in open, sun-exposed environments. By stopping seepage into the subsurface, geomembranes defend groundwater belongings and enable operators to manipulate produced water in an environmentally guilty and most affordable manner.

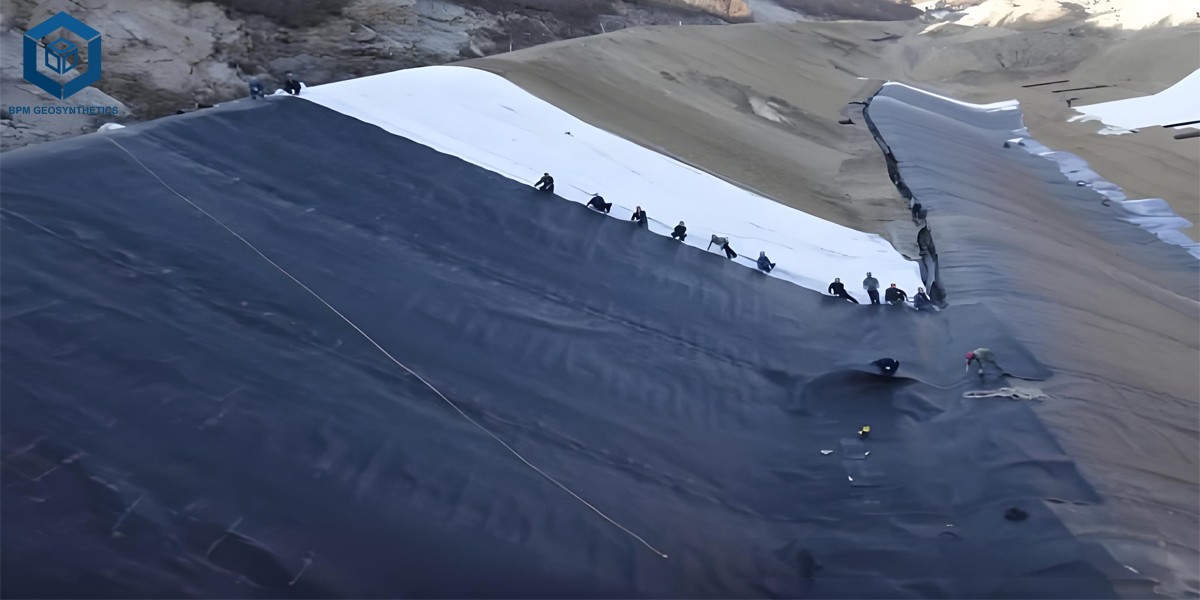

2.5 Refinery Waste Containment Cells
Refineries generate secure and semi-solid waste materials, consisting of oily sludge, spent catalysts, and contaminated soil. BPM geomembranes are used to line waste containment cells, forming an impermeable barrier that isolates hazardous and non-hazardous waste. These buildings often include composite lining alternatives (e.g., HDPE geomembrane + geosynthetic clay liner) to meet strict nearby and global necessities for industrial landfill design.
3. Practical Application Case of BPM Geomembranes in Oil Gas Industry
Application Case 1: Secondary Containment Liner System for Oil Terminal in the Middle East
Project Overview
- Location: Dammam Industrial Zone, Eastern Province, Saudi Arabia
- Project Type: Crude Oil Storage Terminal – Secondary Containment System
- Total Lined Area: 520,000 m²
- Product Used: 2.0mm HDPE smooth geomembrane + 500gsm geotextile
- Client: National Petroleum Logistics Company
Project Background
As section of Saudi Arabia’s infrastructure modernization program, a new strategic crude oil storage terminal was once built in Dammam to help countrywide reserves and export logistics. The terminal blanketed 15 above-ground storage tanks ranging from 50,000 to 200,000 barrels in capacity.
Due to strict environmental guidelines imposed by using the Saudi Environmental Authority and API standards, the facility required a robust secondary containment system to forestall hydrocarbon leakage into surrounding soil or groundwater in the match of tank failure or pipeline rupture.
Problems and Challenges
- Chemical Resistance: The liner gadget wanted to face up to extended contact with hydrocarbons, inclusive of crude oil, diesel, and cleansing agents.
- High Temperatures: The region’s ambient temperatures frequently exceed 50°C, and tank surfaces journey radiant heating.
- Mechanical Loads: Heavy gear visitors and gravel cowl necessitated excessive puncture resistance.
- Regulatory Compliance: The gadget had to meet worldwide containment requirements (API 650/652, ASTM D5885).
- Installation Area: Large, open containment berms required a quickly and uniform set up to forestall wind uplift and wrinkling.
Solution via BPM Geosynthetics
After big technical discussions, BPM engineered and furnished a personalized containment lining system, including:
2.0mm Smooth HDPE Geomembrane
- Made from virgin high-density polyethylene with >20% carbon black content
- Superior resistance to crude oil, refinery chemicals, and UV exposure
- Passed ASTM D5747 and D5885 checks for chemical resistance
500gsm Nonwoven Geotextile
- Installed as an underlayer to guard geomembrane from subgrade gravel
- Additional layer positioned above geomembrane in sure high-traffic areas for cushion
Seam Welding and Quality Control:
- All subject seams joined by means of warm wedge welding and extrusion welding for edges
- Each seam examined the usage of dual-track air strain and vacuum field inspection
- In-situ adverse exams have been carried out weekly and proven by means of third-party labs
Design Features:
- Berms built with 3:1 slopes and toe trenches anchored with concrete weights
- Integrated leak detection device under geomembrane with inspection ports
Installation Highlights
- Materials delivered in 7m-wide rolls to limit on-site seaming
- Daily set up price reached 12,000 m²/day with a skilled crew of 20 technicians
- On-site ambient temperature frequently >45°C — BPM liners maintained dimensional steadiness and flexibility throughout
- Entire set up completed inside 28 working days, 10 days in advance of schedule
Client Feedback
BPM supplied a especially long lasting geomembrane device that met each and every technical and regulatory requirement. Their logistics, discipline support, and technical knowledge had been instrumental in retaining our set up on time and totally compliant. The cloth has proven gorgeous resilience in harsh desolate tract conditions.
Project Outcomes and Long-Term Benefits
- Zero Containment Failures: All tanks exceeded leak simulations and environmental audits
- Environmental Protection: Groundwater included from hydrocarbon seepage, with passive monitoring gadget in place
- Heat & Chemical Durability: After one yr of use, no cracking, bubbling, or mechanical degradation detected
- Regulatory Compliance: Certified by means of third-party employer as conforming to SEEP and API environmental standards
Follow-Up and Expansion
Following the success of this project, NPLC has dedicated to using BPM HDPE liners for Phase II growth (5 extra tanks, 130,000 m²). The mission additionally served as a reference for comparable containment installations in Kuwait and UAE oil facilities.
Application Case 2: Oil Storage Facility Secondary Containment System – Middle East
- Client: National Oil Company
- Location: United Arab Emirates
- Project Type: Secondary Containment Lining System for Above-Ground Oil Storage Tanks
- Product Used: 2.0mm HDPE Smooth Geomembrane
- Total Area Covered: 180,000 rectangular meters
Project Background
The patron operates one of the greatest oil terminals in the Middle East. With the enlargement of its above-ground crude oil storage tank farms, there used to be a fundamental requirement to improve the secondary containment system in compliance with global environmental regulations.
To make sure any achievable leaks or spills from the tanks would now not contaminate the soil or groundwater, an impermeable lining device was once vital below the complete containment area, such as berms and drainage channels.
Challenges Faced
- Extreme Environmental Conditions:Daytime temperatures handed 50°C, inflicting enlargement and contraction stress on liner materials.
- Chemical Resistance Needs:The containment machine had to be resistant to hydrocarbons, together with crude oil, diesel, and plausible chemical additives.
- Large Coverage Area & Tight Timeline:With 12 tanks in parallel construction, the geomembrane set up wanted to be carried out shortly and successfully besides disrupting ongoing civil works.
- Regulatory Compliance:The task was once difficulty to strict environmental monitoring and third-party audits to meet worldwide oil spill prevention standards.
BPM Solution Provided
To tackle these challenges, BPM supplied a complete containment liner gadget solution:
- Product:Supplied 2.0mm HDPE Smooth Geomembrane, regarded for its most effective chemical resistance, UV stability, and excessive tensile strength.
- Custom Fabrication:Factory-fabricated panels have been pre-welded into massive rolls to speed up area deployment and limit seam welding.
- On-Site Technical Support:BPM’s licensed technicians labored with the contractor’s group to oversee deployment, habits great manage checks (air strain testing, vacuum field testing), and help in liner anchoring and seam welding.
- Seam Welding & Quality Assurance:All seams had been welded the usage of automated fusion welders with non-stop QC documentation. Testing protected adverse seam checks and non-destructive spark/air tests.
Results & Client Feedback
- The geomembrane device used to be mounted 10% beforehand of schedule regardless of severe weather, thanks to pre-fabrication and skilled deployment teams.
- The last containment device passed all environmental inspections and earned full regulatory approval.
- The consumer pronounced zero leakage or renovation issues after 24 months of operation, confirming the liner’s long-term overall performance underneath hydrocarbon exposure.
- The assignment has due to the fact that turn out to be a reference case for future oil tank amenities throughout the region.
Client Testimonial:
BPM’s technical crew and product high-quality a long way handed our expectations. The geomembrane set up used to be fast, reliable, and totally compliant with our standards. We reflect onconsideration on BPM a strategic provider for all future storage projects.

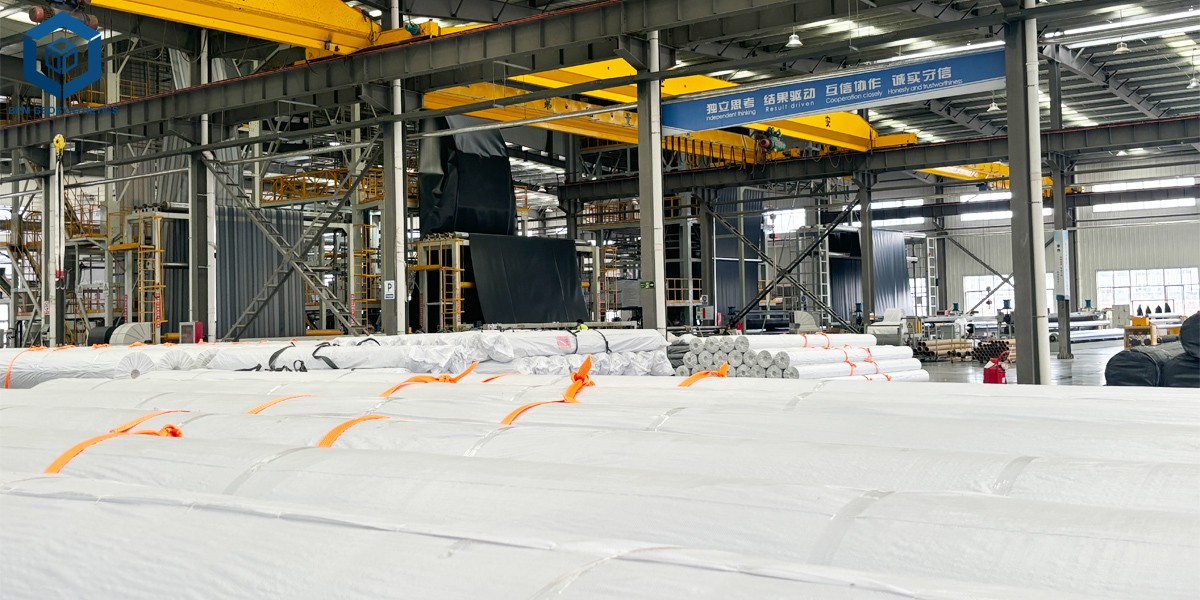

4. Why Choose BPM as a Geomembrane Supplier for Oil and Gas Projects?
- Over 18 years of experience in global energy infrastructure
- Exported to over 100 countries
- Lab-tested, field-proven materials
- Custom sizing and delivery options
- On-site technical support available
