Application of BPM Geomembranes in Dam Storage
Dams and water storage reservoirs play a imperative function in water conservation, irrigation, flood control, hydropower generation, and ecosystem management. One of the critical issues in dam engineering is making sure long-term impermeability and structural stability. BPM geomembranes provide an effective, high-performance answer for lining and waterproofing dam reservoirs, embankments, and associated hydraulic structures.
1. Importance of Geomembranes in Dam Storage
Water seepage via dam reservoirs or embankments can lead to extreme consequences, together with slope instability, inside erosion , or even catastrophic failure. To mitigate these dangers and make certain sustainable water storage, geomembrane liners are extensively adopted as a key engineering manage measure.
2. Key Applications of BPM Geomembranes in Dam Storage Projects

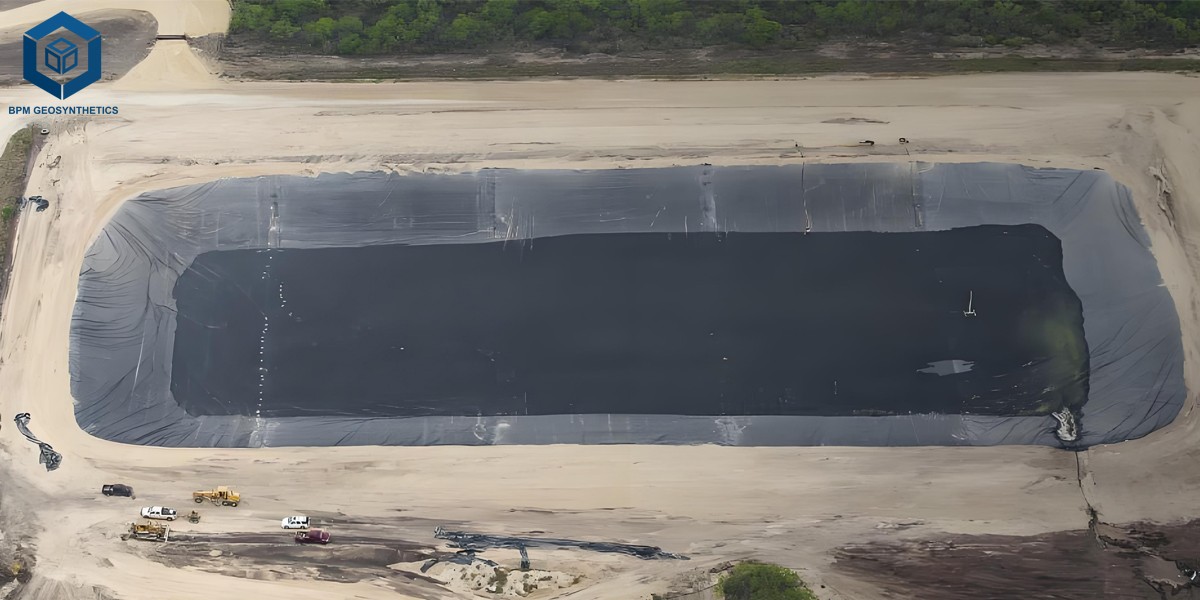

2.1 Reservoir Bottom Lining
High-density polyethylene (HDPE) geomembranes are broadly used on the backside floor of reservoirs to structure an uninterrupted, impermeable barrier that successfully prevents water from penetrating into the soil and rock layers below. This software is vital in areas with porous or unstable subsoils the place water losses can be significant. Reservoir backside lining improves the effectivity of dam operation and environmental safety through keeping water conservation tiers and stopping groundwater pollution.
-Function: Prevent vertical seepage and water loss.
-Advantages: Maintain reservoir capacity, shield aquifers from pollution, and decrease the erosion hazard of permeable roadbeds.
-Typical projects: irrigation dams, municipal reservoirs, emergency water storage.

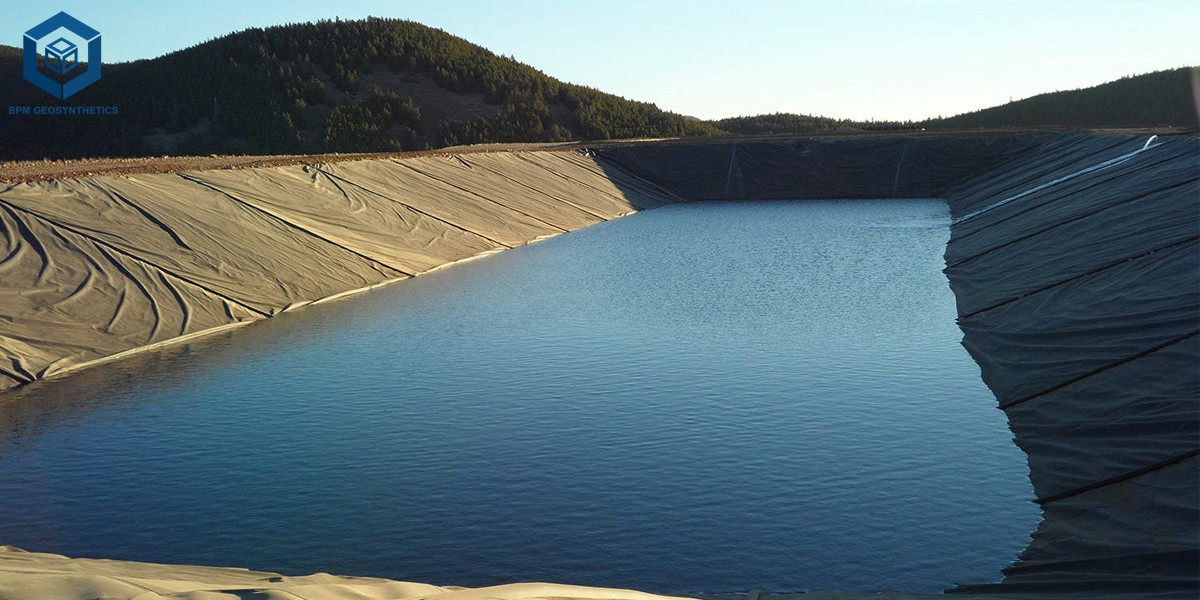

2.2 Upstream Face Lining of Earth-rock Dams
For earth and rockfill dams, geomembranes are usually established on the upstream slope as a watertight membrane to quit dam physique seepage. This facility can extensively decrease inside erosion, enhance the structural integrity of the dam, and prolong its provider life. Geomembranes can additionally be uncovered or protected with defensive layers such as concrete slabs, soil or riprap, relying on web site guidelines and design preferences.
- Function: Stops seepage from penetrating via the dam structure.
- Advantages: Extends dam life, prevents slope instability, and improves security of high-head reservoirs.
- Installation: Can be used with a geotextile blanket or concrete cover, relying on publicity and slope.
2.3 Seepage Control in Auxiliary Dams and Their Ancillary Structures
In complicated dam constructions consisting of auxiliary dams, spillways or diversion channels, BPM geomembranes are used to make certain secure seepage thru all structural components. These ancillary amenities frequently pass a range of hydraulic substances and tough terrain, making flexible, chemical-resistant geomembranes the satisfactory preference to seal surfaces and give up sudden water loss or erosion.
- Function: Ensures that there are no susceptible factors in the dam tools thru which water can escape.
- Advantages: Improves the effectivity of accepted reservoirs and protects adjoining land from waterlogging.
-Applications: Pumped storage projects, hydropower reservoirs, canal banks and spillways.
2.4 Rehabilitation of Leaking Reservoirs
When ancient reservoirs and dams commence to exhibit signs and symptoms of leakage, retrofitting with geomembranes can supply a quick, environment friendly and inside price range solution. Compared with whole reconstruction, putting in a geomembrane lining requires minimal excavation and injury to the current structure. It can repair impermeability, enhance reservoir overall performance and lengthen the existence of the facility besides excessive civil engineering costs.
-Function: Acts as a sealing layer on cracked concrete, eroded clay or degraded asphalt linings.
-Advantages: Fast installation, noticeably cheaper solution, and minimal affect on present day development or operations.
-Example uses: Retrofitting agricultural ponds, repairing leaking historic dams, repairing lining injury in industrial reservoirs.
3. Why Choose BPM Geomembranes for Dam Storage?
Selecting the proper lining device is imperative to the long-term success, safety, and cost-efficiency of dam and reservoir projects. BPM Geomembranes stand out as a desired answer for dam storage purposes due to their tested performance, engineering versatility, and globally relied on quality.
3.1 Superior Impermeability
BPM geomembranes, specifically these made of HDPE and LDPE, provide extraordinarily low permeability—typically <1×10⁻¹³ cm/s—ensuring most water retention. This is quintessential in each arid climates the place each drop things and in environmentally touchy areas the place seepage ought to be prevented at all costs.
3.2 High Mechanical Strength
Designed to function below pressure, BPM geomembranes grant outstanding tensile strength, puncture resistance, and tear resistance, making them appropriate for each deep reservoirs and embankments with heavy overburden or rocky foundations. Their robustness ensures long-term overall performance even below hydrostatic stress and settlement.
3.3 Excellent Chemical and UV Resistance
BPM HDPE geomembranes are quite resistant to a large vary of chemicals, making them perfect for reservoirs that save irrigation water, industrial manner water, or chemically handled supplies. Additionally, they are UV-stabilized to withstand degradation from solar exposure—an essential gain in uncovered dam faces or arid environments.
3.4 Adaptable to Various Dam Designs
Whether for reservoir backside lining, upstream slope facing, saddle dam sealing, or retrofit lining, BPM geomembranes are well suited with a couple of dam configurations. They are additionally effortlessly built-in into composite liner structures with geotextiles, GCL, or concrete covers, relying on the engineering design.
3.5 Rapid and Efficient Installation
BPM geomembrane substances large, prefabricated rolls and helps installation with fusion welding technology for strong, leak-free seams. Their bendy material houses permit for easy deployment on uneven terrain, steep slopes, or irregular shapes, lowering labor fees and building time.
3.6 Long-Term Cost Savings
Although geomembranes might also have a greater preliminary fabric value than regular clay liners, they supply enormous lifecycle price advantages by way of decreasing seepage losses, minimizing preservation needs, and extending dam provider life. The end result is decrease whole price of ownership.

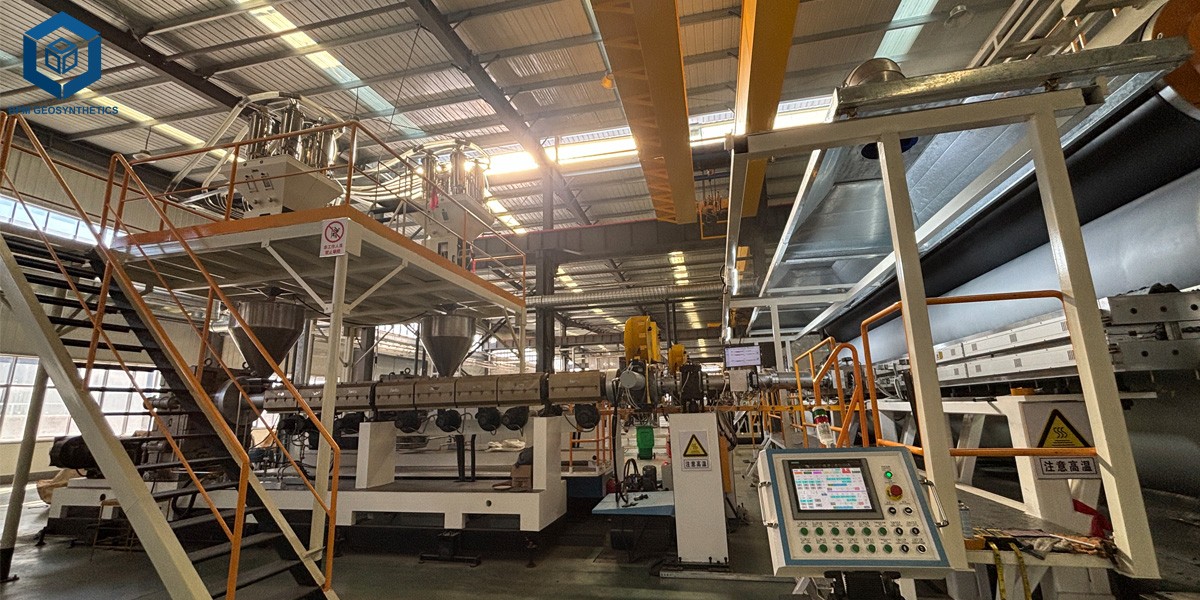

3.7 Global Project Experience and Technical Support
With initiatives in over 100 countries and purchasers throughout irrigation, hydropower, municipal water, and mining sectors, BPM Geosynthetic brings world expertise to every dam project. The organization gives customized solutions, on-site technical guidance, and third-party-certified quality for certain challenge success.
3. Practical Application Cases of BPM Geomembranes in Dam Storage

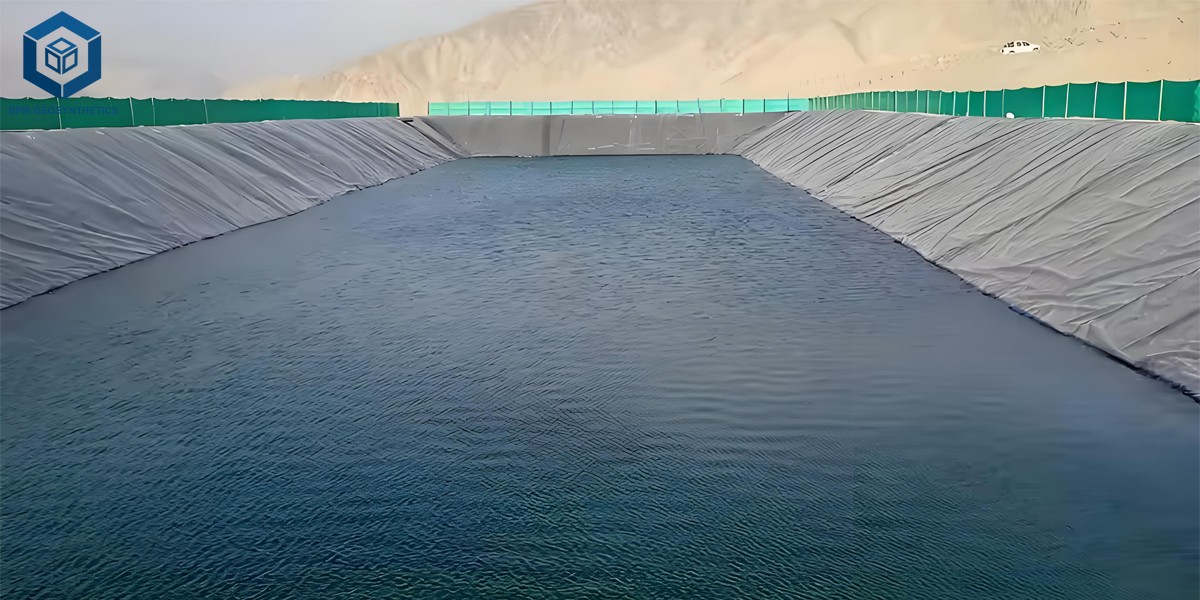

Case 1: HDPE Geomembrane Lining for Agricultural Dam in Central Asia
Project Overview
- Location: Almaty Region, Kazakhstan
- Project Type: Irrigation Water Storage Dam
- Lined Area: 450,000 m²
- Product Used: 1.5mm clean HDPE geomembrane + nonwoven geotextile
- Client: Regional Water Resources Authority
Project Background
The Almaty area faces ordinary water shortage in the course of the summer time season due to constrained rainfall and excessive evaporation. To aid agricultural irrigation and enhance meals security, the authorities initiated the building of a giant off-channel earthfill dam reservoir. The dam used to be designed to keep eight million cubic meters of floor runoff and snowmelt water.
As the reservoir was once to be developed over alluvial soil with negative impermeability, seepage manipulate grew to be a main engineering priority. The task required a high-performance liner device to stop water loss and ensure reservoir safety.
Challenges and Requirements
- High Seepage Risk: The herbal floor consisted of unfastened sandy and gravel soils with excessive permeability.
- Large Surface Area: The lined vicinity passed 250,000 m², such as each the reservoir backside and embankment slopes.
- Extreme Temperatures: The vicinity experiences broad temperature variants from -25°C in wintry weather to +40°C in summer.
- Time Constraints: The development agenda used to be tight due to the seasonal nature of the water glide and irrigation demand.
- Durability: The liner wished to ultimate for over 20 years with minimal maintenance.
Solution Provided through BPM
After technical evaluate and consultation, BPM Geosynthetics proposed a whole lining machine using:
1.5mm Smooth HDPE Geomembrane:
- Manufactured with UV-stabilized virgin HDPE resin
- Excellent chemical resistance and dimensional stability
- Certified to ISO9001 and CE standards
200gsm Needle-Punched Nonwoven Geotextile:
- Installed as a cushioning layer below the geomembrane
- Prevented puncture from sharp gravel or subsoil irregularities
Fusion Welding Technology:
- All seams had been welded the usage of computerized warm wedge welding machines
- Seam energy examined on-site per ASTM D6392
On-Site Technical Support:
BPM furnished a senior technician to information neighborhood crews and make certain appropriate installation, QA/QC, and testing.
Construction Highlights
- Geomembrane was once delivered in 12-meter-wide rolls for quicker deployment
- Installation charge averaged 10,000 m²/day at some stage in top phases
- Daily integrity trying out was once carried out the usage of air strain check and vacuum field methods
- A gravel ballast trench used to be used alongside the perimeter to anchor the geomembrane edges
Results and Client Feedback
After commissioning, the reservoir effectively held water at some stage in the first irrigation season with zero detectable seepage. Satellite moisture evaluation established minimal water loss, and on-site inspections confirmed no liner harm or stress points.
BPM’s geomembrane gadget carried out past expectations. The technical crew supplied quintessential support, and the reservoir is now completely operational except leakage. This answer helped us preserve precious water and assist neighborhood farming communities.
Impact and Benefits
- Water Loss Reduction: Estimated annual financial savings of over 700,000 m³ of water
- Cost Efficiency: Lower long-term preservation charges in contrast to clay core or concrete liners
- Sustainability: Enhanced regional water safety and agricultural productivity
- Scalability: The success of this challenge has led to comparable liner functions in neighboring provinces

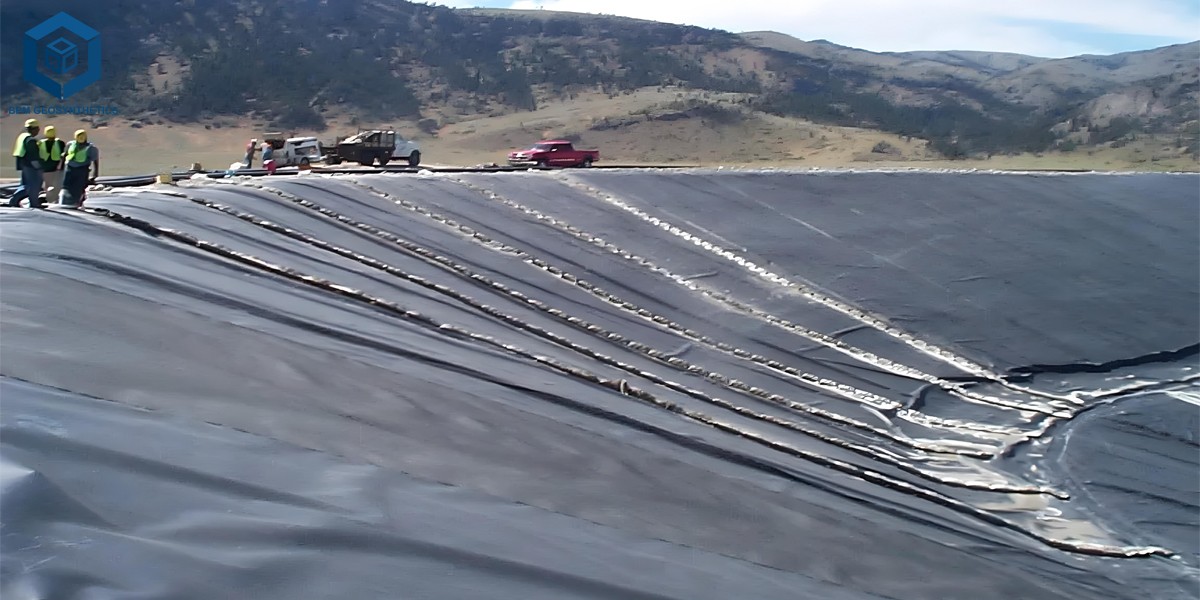

Case 2 : LLDPE Geomembrane for Hydropower Dam in South America
Project Overview
- Location: Cusco Region, Peru (Andean Highlands)
- Project Type: Mountain Hydropower Dam – Water Storage Basin
- Total Lined Area: 470,000 m²
- Product Used: 1.5mm textured LLDPE geomembrane + 300gsm geotextile
- Client: Peruvian Ministry of Energy and Mines
Project Background
As phase of a country wide strength diversification plan, the Peruvian authorities funded the development of a run-of-river hydropower facility in the Cusco highlands. To adjust seasonal glacial soften and enhance energy technology consistency, a high-altitude storage basin was once developed at 3,900 meters above sea level.
The basin was once surrounded by using unstable mountainous terrain with fractured rock and free scree. An impermeable liner used to be indispensable to maintain water, stop seepage into the fractured bedrock, and keep away from any infection of surrounding highland wetlands.
Challenges and Technical Requirements
- Extreme Altitude and Cold Climate: Temperatures regularly fell beneath freezing; UV publicity was once excessive at excessive elevation.
- Uneven and Rocky Subgrade: Subgrade required a liner that ought to conform to irregular terrain and withstand puncture.
- Slope Stability: Steep slopes intended excessive shear stress and slippage risk.
- Environmental Sensitivity: The basin used to be placed close to a fragile wetland ecosystem, requiring strict leak prevention.
- Limited Construction Window: Only 4 months have been on hand for set up due to seasonal weather.
Solution through BPM Geosynthetics
To tackle the above, BPM proposed a composite lining system designed for flexibility, durability, and slope adherence:
1.5mm Textured LLDPE Geomembrane:
- Provided greater elongation at smash and flexibility than HDPE
- Textured floor better interface friction with steep slopes
- UV-resistant and appropriate for uncovered stipulations at altitude
300gsm Needle-Punched Geotextile:
- Laid underneath the liner for subgrade safety and puncture resistance
- Installed in two layers in high-pressure areas (toe region and drain outlets)
Anchor Trench Design:
- Perimeter and crest anchoring trenches had been bolstered with concrete blocks to face up to uplift and sliding
- Wind uplift trying out carried out prior to liner deployment
Full QA/QC Monitoring:
- Every welded seam underwent air channel stress testing
- On-site lab carried out shear and peel energy checks in compliance with ASTM D7002
Construction and Implementation
- Materials had been airlifted to the website due to faraway access
- Despite the harsh environment, the geomembrane used to be set up at a charge of 6,000–8,000 m²/day
- Textured geomembrane carried out properly on steep inclines, casting off the want for geogrid reinforcement
- Local people obtained education from BPM engineers on dealing with and welding methods at excessive elevation
Results and Client Feedback
The task was once achieved on time, and the basin has now been operational for two full moist seasons. Water retention passed format expectations, and the liner gadget has proven no signs and symptoms of slippage, leakage, or UV degradation.
Client Feedback:
The overall performance of BPM’s LLDPE geomembrane below high-altitude stress used to be remarkable. It treated cold, terrain, and wind publicity higher than expected. The textured floor gave us introduced self belief on steep zones. We exceptionally advise BPM for complicated dam or reservoir projects.
Project Benefits and Long-Term Impact
- Leakage Prevention: Protected downstream wetlands from plausible seepage
- Power Generation Stability: Enabled regular water go with the flow for generators year-round
- Environmental Compliance: Met all requirements set with the aid of Peru’s environmental oversight authority (OEFA)
- Replicable Model: Adopted as a widespread for different high-altitude reservoir linings in the Andes
4. Is BPM Geomembrane the Right Partner for Your Dam Storage Project?
With greater than 18 years of experience, exports to over a hundred countries, and third-party certifications (ISO, CE, SGS), BPM presents dependable products, specialist technical support, and a confirmed report in complicated water infrastructure. Whether it’s a new construct or rehabilitation, BPM geomembranes are engineered to perform.
