HDPE Smooth Geomembrane
HDPE smooth geomembrane is a highly splendid waterproofing liner made from high-density polyethylene. Its HDPE smooth geomembrane enhances typical overall performance in a range of applications, which encompass landfills, reservoirs, and containment systems. This geomembrane is designed to supply brilliant chemical resistance, durability, and impermeability, making it a appreciated wish for environmental protection and containment solutions.
- High Durability: Built to endure harsh local weather stipulations and heavy loads, making positive long-term reliability.
- Excellent Waterproofing: Provides a sturdy barrier toward water infiltration, defending the surrounding environment.
- Cost-Effective: Offers a prolonged lifespan and low maintenance, imparting outstanding fee for a variety of projects.
HDPE smooth geomembrane is a high-performance waterproofing answer made from high-density polyethylene, famend for its superb sturdiness and chemical resistance. This HDPE smooth geomembrane aspects a smooth surface that enhances its impermeability, making it perfect for a range of purposes along with landfill liners, pond liners, and containment systems. Its development permits it to correctly forestall water infiltration and shield the surrounding surroundings from contamination, making sure compliance with environmental regulations. The light-weight and bendy nature of HDPE smooth geomembrane enables effortless transportation and installation, which can be carried out the usage of welding methods for seamless joints. Additionally, its robustness allows it to face up to harsh climate prerequisites and heavy loads, making sure long-lasting overall performance even in worrying environments. With a lifespan that minimizes protection needs, HDPE smooth geomembrane gives a cost-efficient answer for initiatives requiring dependable containment and environmental protection.
Parameter
ltem | Detailed item | Unit | Standard | Test Frequency | GS075 | GS010 | GS015 | GS020 | GS030 |
Mechanical Properties | Thickness | mm | D5199 | per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | D1505/D792 | 90.000kg | 0.94g/cc | ||||||
Tensile Properties | |||||||||
Yield Strength | KN/m | D6693 Type Iv | 9.000 kg | 11 | 15 | 22 | 29 | 44 | |
Break Strength | KN/m | 20 | 27 | 40 | 5 3 | 80 | |||
Yield Elongation | % | 12 | 12 | 12 | 12 | 12 | |||
Break Elongation | % | 700 | 700 | 700 | 700 | 700 | |||
Tear Resistance | N | D1004 | 20.000kg | 93 | 125 | 187 | 249 | 374 | |
Puncture Resistance | N | D4883 | 20.000kg | 240 | 320 | 480 | 640 | 960 | |
Stress Crack Resistance | Hr. | D5397 | per GRl GM-10 | 300 hr. | |||||
Carbon black content | % | D4218 | 9.000kg | 2.0-3.0% | |||||
Carbon black dispersion | D5596 | 20.000kg | For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 | ||||||
Reference Properties | Oxidative Induction Time | ||||||||
Standard OlT | min | D3895 | 90.000kg | 100 min | |||||
High pressure OlT
| D5885 | 90.000kg | 400 min | ||||||
Oven Aging at 85°C retained after 90 days
| % | D5721 | per each formulation | 55% | |||||
Standard OlT | D3895 | 80% | |||||||
High pressure OlT | D5885 | 80% | |||||||
UV Resistance | |||||||||
High Pressure OlT_% retained after 1600 hrs | % | D5885 | per each formulation | 50% | |||||
Roll Size | Roll widthe | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size stability | % | 2% | |||||||
HDPE Smooth Geomembrane Features
1. High Chemical Resistance: HDPE smooth geomembranes are resistant to a broad vary of chemicals, inclusive of acids, bases, and solvents. This makes them appropriate for purposes involving hazardous materials, making sure protection and compliance with environmental standards.
2. Impermeable Barrier: The HDPE smooth geomembrane presents magnificent impermeability, efficaciously stopping water infiltration and defending underlying soil and groundwater from contamination. This characteristic is essential for purposes like landfill liners and reservoir covers.
3. Durability and Longevity: Designed to stand up to harsh environmental conditions, HDPE smooth geomembranes showcase excessive tensile electricity and resistance to UV radiation, excessive temperatures, and bodily abrasion. This sturdiness ensures a lengthy carrier lifestyles with minimal maintenance.
4. Ease of Installation: The light-weight and bendy nature of HDPE smooth geomembranes lets in for simple managing and installation. They can be without difficulty welded collectively to create seamless joints, improving typical overall performance and integrity.
5. Cost-Effectiveness: With a lengthy lifespan and low renovation requirements, HDPE smooth geomembranes grant a within your budget answer for quite a number containment and waterproofing projects, handing over great fee over time.
6. Versatile Applications: Suitable for a vast vary of applications, together with landfill liners, water reservoirs, irrigation ponds, and aquaculture facilities, making them a versatile preference for environmental safety and containment needs.
7. Eco-Friendly Option: HDPE smooth geomembranes are recyclable, contributing to sustainable practices in development and waste management, thereby lowering their environmental impact.
Applications of HDPE Smooth Geomembrane
1. Landfill Liners: HDPE smooth geomembranes are widely used as liners in landfills to prevent leachate from contaminating soil and groundwater. Their impermeable nature ensures that hazardous waste is contained effectively.
2. Water Reservoirs: These geomembranes serve as liners for water reservoirs and storage tanks, preventing water loss due to seepage and maintaining water quality by protecting against external pollutants.

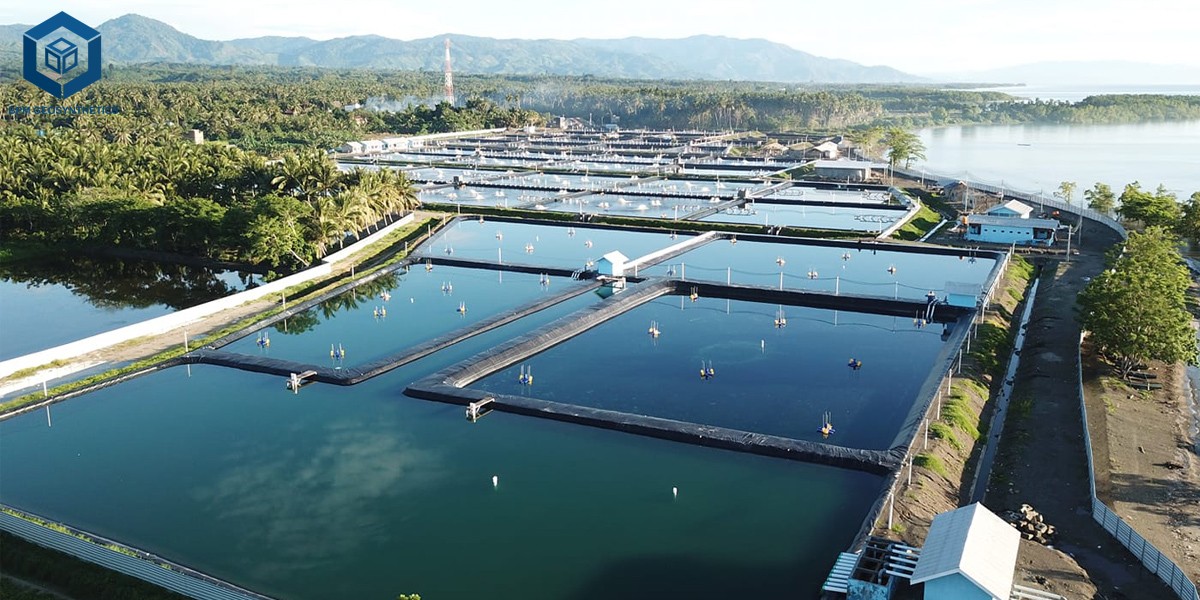

3. Pond Liners: In agricultural and aquaculture settings, HDPE smooth geomembranes are utilized to line ponds, ensuring water retention and quality while preventing contamination from surrounding soils.
4. Wastewater Treatment: In wastewater treatment facilities, HDPE geomembranes are employed to line lagoons and basins, providing a barrier that prevents the escape of harmful substances and ensures efficient treatment processes.
5. Mining Operations: They are used in tailings ponds and heap leach pads in the mining industry to contain toxic materials and prevent environmental pollution, safeguarding surrounding ecosystems.
6. Chemical Storage: HDPE smooth geomembranes are ideal for lining storage areas for chemicals and hazardous materials, ensuring safety and compliance with environmental regulations.
7. Green Roof Systems: In sustainable building practices, these geomembranes are integrated into green roofs to provide waterproofing while allowing for drainage and water retention for plant growth.
8. Environmental Remediation: HDPE geomembranes play a crucial role in isolating contaminated sites during remediation projects, preventing the spread of pollutants and facilitating clean-up efforts.
These applications demonstrate the versatility and effectiveness of HDPE smooth geomembranes in providing reliable containment and environmental protection across various industries.
