PVC Dam Liners

Tired of water loss, costly seepage, and constant pond maintenance? Water is your most valuable resource, and an unreliable dam lining can cost you thousands in lost water, soil erosion, and structural repairs. Engineered for maximum durability and effortless installation, our Premium PVC Dam Liners provide an impermeable, highly flexible barrier designed to lock every drop of water in place. Whether you are managing an agricultural reservoir, a commercial aquaculture pond, or a large-scale industrial basin, our UV-stabilized PVC geomembranes deliver ultimate leak protection that stands the test of time.

1. PVC Dam Liners Quick Specifications & Instant Inquiry

- Material: 100% Virgin Grade PVC Resin (Non-toxic & Eco-friendly)

- Thickness Range: 0.2 mm – 3.0 mm (Custom thickness available upon request)

- Roll & Panel Sizes: Standard widths from 2.0m to 10.0m

- Thermal Stability: -30°C to +70°C (All-weather performance)

- Quality Standards: ISO9001 | ISO14001 | CE Certified | SGS Lab Tested

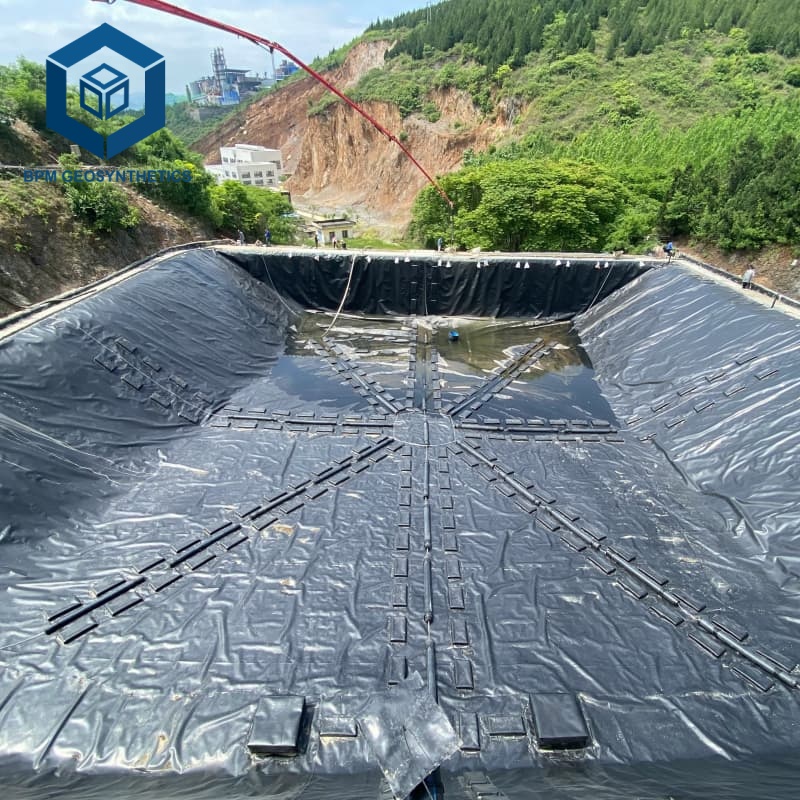

- Primary Applications: Farm Dams, Agricultural Reservoirs, Aquaculture (Fish & Shrimp Ponds), Artificial Lakes, Industrial Containment

- In Stock & Ready to Ship. Custom Sizes Available

2. PVC Dam Liners Key Features & Differentiating Advantages

2.1 Exceptional Flexibility & Slope Adaptation

Unlike rigid HDPE geomembranes, PVC possesses high elasticity and elongation (>300%). It comfortably conforms to irregular contours, rocky subgrades, and sloping embankments without stretching thin or tearing.

2.2 Factory Prefabrication — Save 50% On-Site Labor

We can pre-weld large custom-sized panels (up to 1,000–2,000 m² per sheet) under strict factory quality control. When delivered to your job site, simply unroll and anchor — reducing field welding by up to 50% and cutting total installation time drastically.

2.3 Advanced UV & Weathering Protection

Formulated with high-grade UV stabilizers, anti-oxidants, and non-migrating plasticizers. Our PVC liners resist solar degradation, ozone exposure, and severe freeze-thaw cycles, offering a design service life of 10 to 15+ years.

2.4 Non-Toxic & Aquaculture Safe

Certified safe for aquatic life and agriculture. Zero heavy metals or harmful chemical leaching, making it ideal for freshwater fish ponds, shrimp farming, and crop irrigation storage.

2.5 High Tear & Puncture Resistance

Engineered to withstand root penetration, soil movement, hydrostatic pressure, and minor mechanical impact during installation.

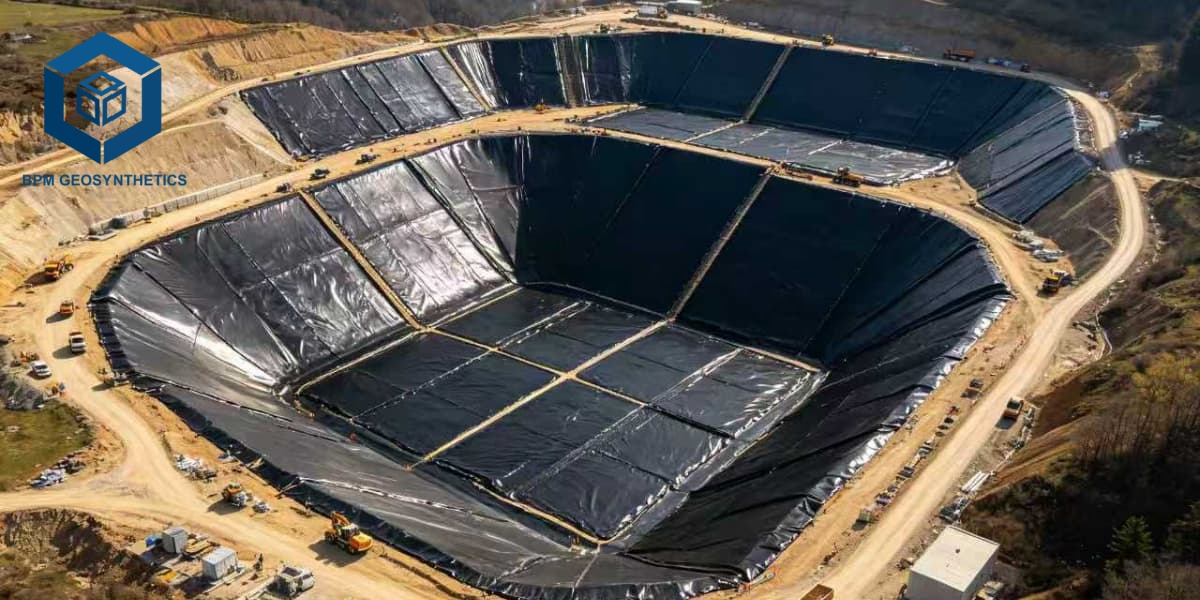

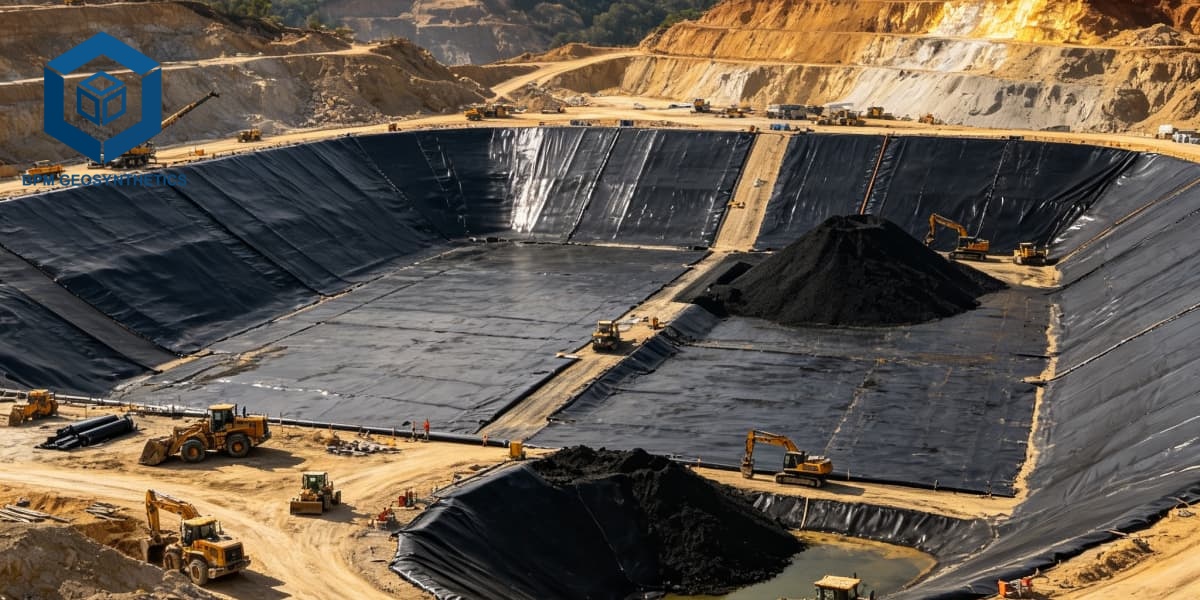

3. Common Applications of PVC Dam Liners

Our BPM Geosynthetics PVC dam liners provide reliable, long-lasting anti-seepage solutions across a wide range of agricultural, commercial, and industrial water management projects.

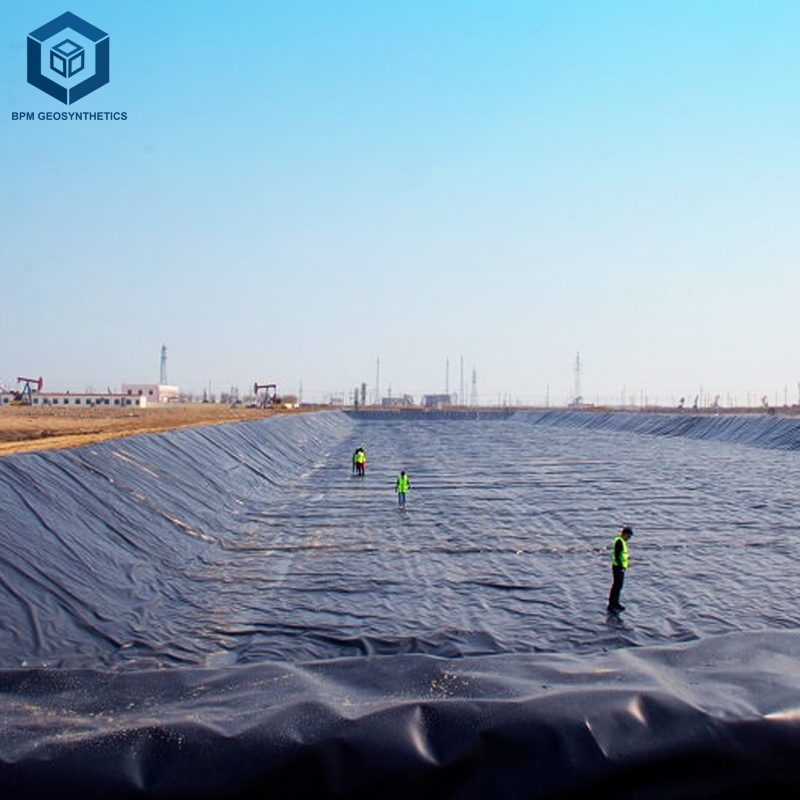

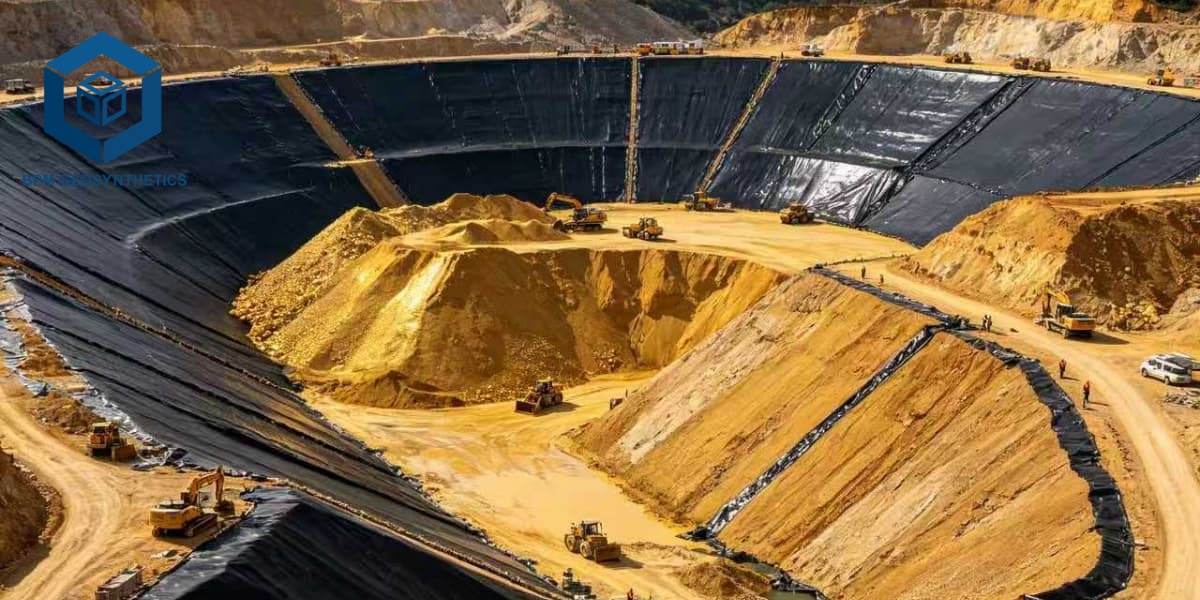

3.1 Agricultural Reservoirs & Irrigation Ponds

- The Challenge: Water loss from seepage in sandy or dry soil reduces crop yields and inflates water management costs.

- The Solution: Our PVC geomembrane liners create an impermeable barrier that seals the reservoir bed completely, securing water reserves to ensure reliable crop irrigation during dry and drought seasons.

3.2 Aquaculture & Commercial Fish/Shrimp Farming

- The Challenge: Unlined earth ponds harbor soil-borne pathogens, cause water turbidity, and are difficult to drain and sanitize.

- The Solution: Provides a smooth, non-toxic, and non-leaching surface that prevents disease transmission, keeps water chemistry stable, and simplifies sludge removal between harvest cycles.

3.3 Golf Courses & Decorative Landscape Lakes

- The Challenge: Irregular water feature contours and decorative rock work are prone to liner tearing and ugly exposed edges.

- The Solution: Thanks to high elasticity, PVC drapes smoothly over complex curves, sharp turns, and terraced slopes. It easily hides underneath stone borders or topsoil for a seamless aesthetic finish.

3.4 Firefighting Water Reserves & Remote Storage

- The Challenge: Remote agricultural farms, timber yards, and industrial facilities need guaranteed water retention for emergency fire suppression.

- The Solution: Delivers cost-effective, zero-leakage water storage basins that stay functional year-round, resisting extreme hot and cold weather without cracking.

3.5 Secondary Chemical & Effluent Containment

- The Challenge: Agricultural run-off, manure slurry, and mild industrial wastewater risk contaminating surrounding groundwater.

- The Solution: Specially formulated to resist mild acids, alkalis, and agricultural chemicals, protecting the environment and ensuring regulatory compliance.

4. Simple 4-Step Installation & Maintenance Guide of PVC Dam Liners

Installing our PVC dam liners is straightforward, saving you time and heavy equipment costs. Follow these 4 steps for a seamless, long-lasting installation:

4.1 Step 1: Subgrade Preparation

- Clear the Surface: Remove sharp rocks, roots, vegetation, and debris from the pond or dam basin.

- Smooth & Compact: Compact loose soil and smooth out major ridges or sharp drops to create a stable base.

- Optional Cushion: Apply a 200–300g non-woven geotextile underlayment if the terrain is particularly rocky or coarse.

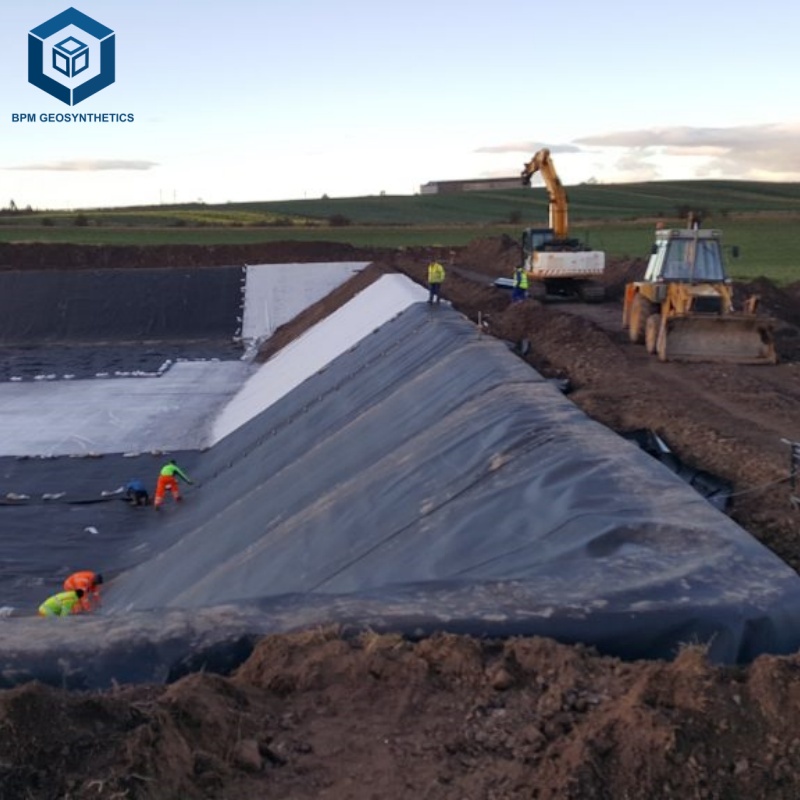

4.2 Step 2: Unrolling & Positioning

- Lay Out Sheets: Unroll the PVC liner across the basin floor and embankments.

- Sun Relaxation: Allow the laid sheets to relax in the sun for 30 to 60 minutes. This softens the material, releases roll tension, and lets the membrane conform naturally to the ground.

- Proper Overlap: Ensure adjacent panels overlap by at least 50 mm to 75 mm (2–3 inches) along the joining edges.

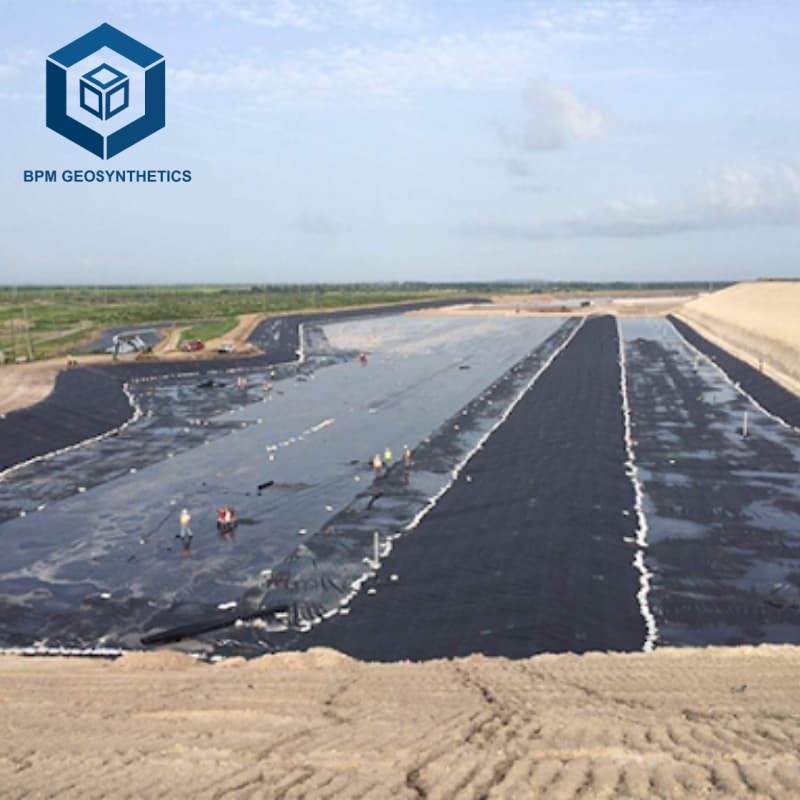

4.3 Step 3: Seaming & Sealing

- Factory Prefabricated Panels: If you ordered pre-welded large geomembrane sheets, minimal to no field seaming is required—simply unfold and position.

- Field Seaming: Fuse overlapping edges using a handheld hot-air welder (welding speed approx. 2–3 m/min) or apply a high-strength PVC solvent adhesive for cold welding.

4.4 Step 4: Anchor Trenching & Backfilling

- Dig Anchor Trench: Excavate a perimeter trench along the top crest of the dam (typically 40 cm deep x 40 cm wide).

- Secure Edges: Drape the outer edges of the liner into the trench.

- Backfill & Compact: Fill the trench with local soil, clay, or gravel and compact thoroughly to prevent wind uplift and liner movement.

4.5 Pro Maintenance & Quick Repair Tip:

Accidentally punctured by machinery or livestock? Repairs require no specialized contractors. Simply clean the damaged area, cut a circular PVC patch extending 50mm past the damage, and fuse it over the hole using a hot-air gun or solvent glue.

5. PVC Dam Liners Material Science & Manufacturing Excellence

5.1 Virgin vs. Recycled PVC Matrix

Unlike low-cost alternatives blended with recycled plastic scraps, our BPM Geosynthetics liners are crafted exclusively from 100% Virgin Polyvinyl Chloride (PVC) Resin. This ensures a consistent polymer chain structure, eliminating micro-voids, internal stress weakness, and unpredictable degradation over time.

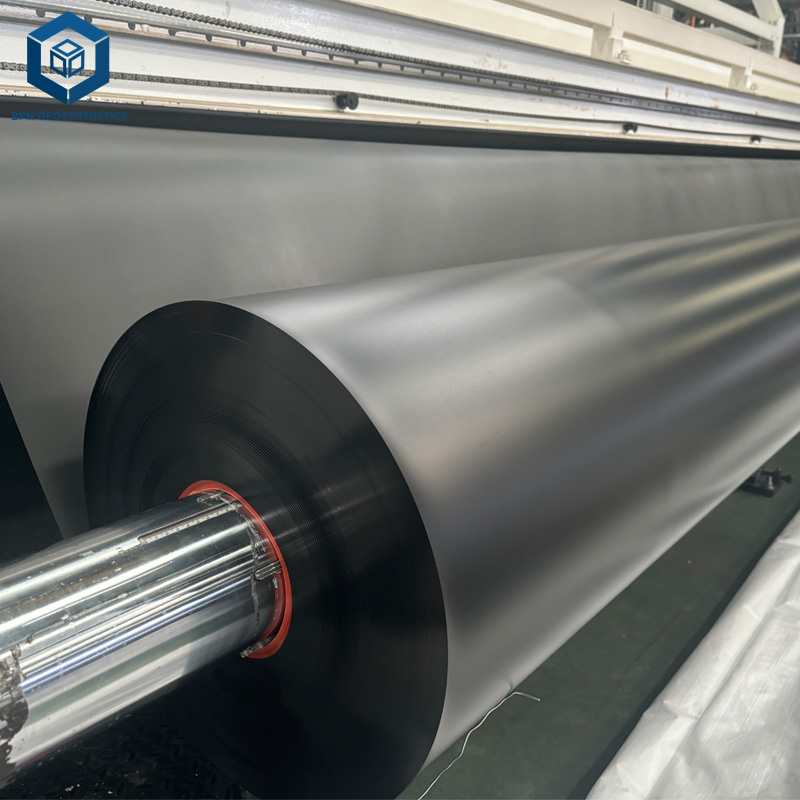

5.2 Advanced Multi-Layer Extrusion Technology

Manufactured using state-of-the-art calendering and extrusion production lines, our geomembranes feature high density, uniform thickness, and superior liquid barrier capability. Every roll undergoes continuous automated thickness monitoring to guarantee batch-to-batch precision.

6. Why PVC Dam Liners Wins for Irregular & Steep Terrains?

While HDPE is widely used in flat landfill sites, PVC lining material excels in dynamic, rocky, and uneven terrain. Below are the key engineering reasons why PVC liner sheet is the superior choice for complex slope and soil conditions:

6.1 Bridging Soil Voids without Tearing

When installed over rough earth, standard rigid liners bridge across gaps. When filled with thousands of tons of water, the pressure snaps rigid plastic. PVC’s high elasticity allows it to stretch down and mold tightly into every cavity without losing thickness or strength.

6.2 Resisting Sharp Rock Punctures & Stress Cracks

Sharp rocks and tree roots create high-stress points. Rigid HDPE suffers from Environmental Stress Cracking (ESC) under prolonged point pressure. Polyvinyl chloride liner safely yields and flexes around sharp subgrade objects, preventing catastrophic leaks.

6.3 Secure Anchor on Steep Embankments

Lining steep dam walls requires high surface friction. PVC’s natural texture offers better grip against earth slopes than slick HDPE, reducing the risk of sliding backfill and simplifying anchor trench placement.

6.4 No Severe Thermal Expansion Wrinkling

Excessive wrinkling in stiff liners creates weak points along field seams. PVC liner pond expands and contracts evenly without forming massive "wave" wrinkles, making site alignment smoother and long-term seam performance far more reliable.

7. PVC Dam Liners Packaging, Global Logistics & Quality Control

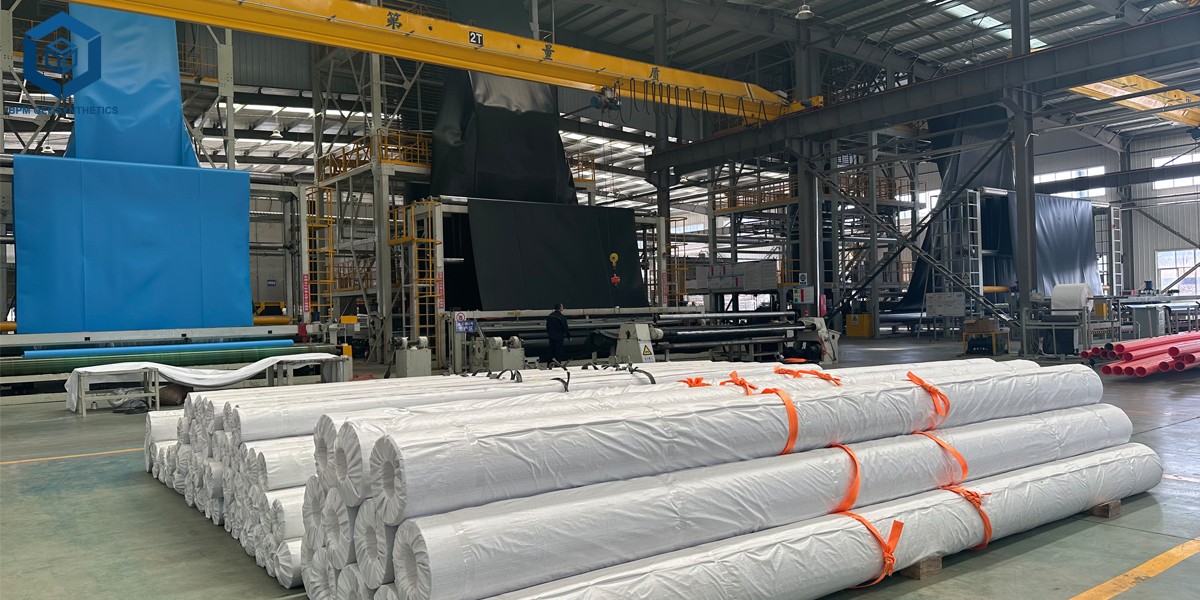

7.1 Export-Grade Secure Packaging

To withstand long-distance ocean transit and harsh handling, all rolls and prefabricated panels are wrapped in heavy-duty UV-resistant woven geotextile fabric and fitted with reinforced inner cores. Custom labeling and color-coded tags are applied for effortless site sorting.

7.2 Strict Quality Control (QC) Standards

Every manufacturing batch is subjected to rigorous internal testing in our ISO-certified lab before dispatch:

- Hydrostatic Pressure Test: Verifies total impermeability under high water pressure.

- Seam Strength Test: Ensures factory welds meet or exceed parent material strength.

- Puncture & Tensile Resistance: Confirms compliance with international ASTM/EN standards.

8. PVC Dam Liners Frequently Asked Questions (FAQ)

Q1: What thickness should I choose for my dam or pond project?

0.2 mm – 0.5 mm: Suitable for short-term water storage, decorative garden ponds, or temporary agricultural covers.

0.75 mm – 1.0 mm: Ideal for standard farm dams, irrigation reservoirs, and aquaculture ponds on smoothed soil.

1.5 mm – 3.0 mm: Recommended for deep reservoirs, rocky subgrades, heavy commercial aquaculture, or industrial effluent containment.

Q2: Can PVC liners be installed in cold or hot weather conditions?

Yes. Our formulation is engineered for thermal stability from -30°C to +70°C. During cold weather, allow the material extra time under ambient sunlight to regain its optimal flexibility before unfolding and seaming.

Q3: Is field seaming difficult for non-professional installation teams?

Not at all. PVC is one of the easiest geomembranes to join. You can use a lightweight handheld hot-air welding tool or apply PVC solvent chemical welding adhesive. For large projects, opting for our factory pre-welded panels reduces on-site seaming by up to 90%.

Q4: Can PVC dam liners be repaired if punctured by livestock or machinery?

Yes! One of PVC's major advantages over other plastics is its ease of repair. Patches can be applied onsite using a handheld hot-air gun or specialized solvent glue, even years after installation.

Q5: Do you provide free samples?

Yes, we provide Free Sample Swatches (A4 size or small roll samples) so you can test the thickness, flexibility, and weld strength before placing a bulk order.

Summary & Final Recommendation

When it comes to safeguarding your water assets, cheap or low-grade lining materials are a false economy. Water loss, structural soil erosion, and constant repairs can quickly outpace your initial savings.

The Best Project Material Co., Ltd. (BPM Geosynthetics) Premium PVC Dam Liners bridge the gap between heavy-duty industrial performance and easy, cost-effective site installation. With superior flexibility for uneven terrains, 100% virgin resin quality, advanced UV stabilization, and factory pre-fabrication options that slash on-site labor by up to 50%, our liners deliver an unbeatable combination of durability and value.

Ready to Protect Your Project?

Don't leave your water storage to chance. Contact our technical engineering team today for free technical advice, custom panel design, and an instant factory-direct quote.

- Free Sample Kits Available: Test our material thickness, elasticity, and weld strength firsthand before ordering.

- Fast Worldwide Shipping: Pre-welded mega-panels and standard rolls dispatched directly to your job site or port.
