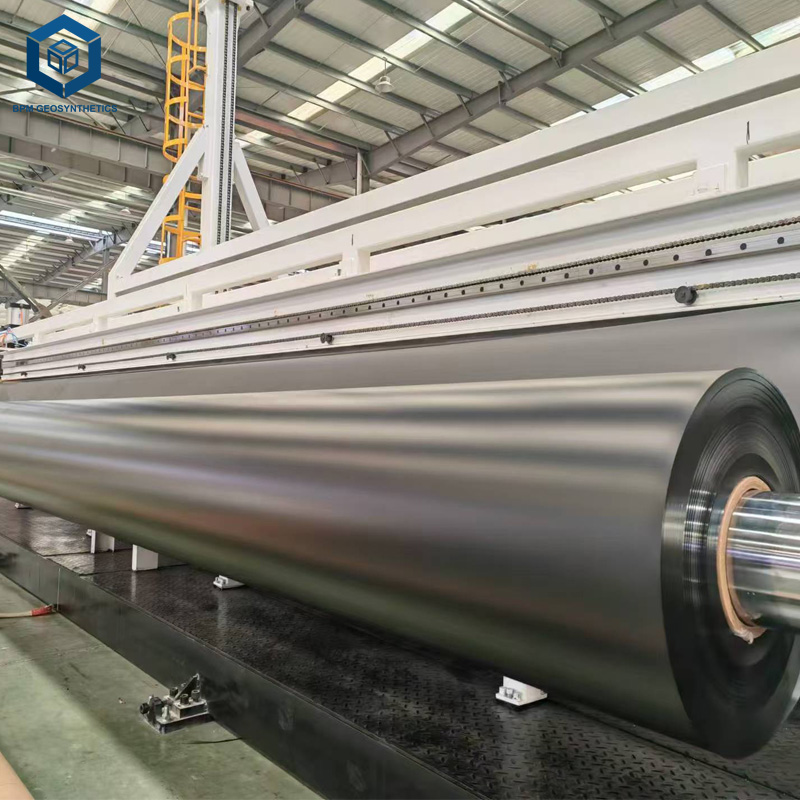

HDPE Geo Membrane
BPM GEOSYNTHETICS is a main producer of exquisite HDPE geo membrane, offering dependable containment and waterproofing options for environmental, mining, agricultural, and landfill projects. Backed by means of cutting-edge manufacturing strains and over 15 years of experience, we supply durable, chemical-resistant liners tailor-made to meet international engineering standards.
1. Factory Direct Supply – ISO-certified facility with large-scale manufacturing capacity
2. Superior Material Quality – Made from one hundred percent virgin HDPE resin with robust UV and chemical resistance
3. Customizable Options – Thickness from 0.5mm to 3.0mm, textured or easy surface, rolls reduce to challenge specs
4. Certified & Tested – Complies with worldwide requirements (ISO, CE, GRI-GM13)
5. One-Stop Service – Technical consultation, set up guidance and after-sales support
HDPE geo membrane are fairly fine obstacles that have won substantial awareness for their versatility and reliability throughout a vary of applications, which include landfill liners, pond liners, and a variety of water containment systems. One of the standout blessings of HDPE geo membranes is their fantastic durability, which allows them to undergo harsh environmental stipulations such as intense temperatures, heavy rainfall, and extended UV publicity barring widespread degradation. This inherent resilience now not solely ensures a lengthy carrier lifestyles however additionally minimizes the want for regular replacements, in the end main to price financial savings over time. In addition to their durability, HDPE geo membranes are famend for their extremely good chemical resistance, which approves them to safely incorporate a huge range of hazardous substances besides the danger of leakage or contamination, thereby defending each the environment and public health. The easy floor of these geo membranes similarly enhances their overall performance via lowering friction, making set up and renovation approaches a whole lot extra manageable and efficient. Furthermore, the lightweight nature of HDPE geo membrane simplifies transportation and managing on site, enabling for quicker deployment and installation. The flexibility of HDPE moreover lets in on hand customization to meet special assignment requirements, making these geo membranes fabulous for a a number of array of applications, from agricultural makes use of to industrial waste management. Overall, the combination of strength, durability, and adaptability makes HDPE geo membrane a preferred desire for engineers and environmental authorities alike who are looking out for reliable and magnificent picks for containment, protection, and environmental safeguarding in a variety of settings.
Parameter
ltem | Detailed item | Unit | Standard | Test Frequency | GS075 | GS010 | GS015 | GS020 | GS030 |
Mechanical Properties | Thickness | mm | D5199 | per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | D1505/D792 | 90.000kg | 0.94 | ||||||
Tensile Properties | |||||||||
Yield Strength | KN/m | D6693 Type Iv | 9.000 kg | 11 | 15 | 22 | 29 | 44 | |
Break Strength | KN/m | 20 | 27 | 40 | 53 | 80 | |||
Yield Elongation | % | 12 | 12 | 12 | 12 | 12 | |||
Break Elongation | % | 700 | 700 | 700 | 700 | 700 | |||
Tear Resistance | N | D1004 | 20.000kg | 93 | 125 | 187 | 249 | 374 | |
Puncture Resistance | N | D4883 | 20.000kg | 240 | 320 | 480 | 640 | 960 | |
Stress Crack Resistance | Hr. | D5397 | per GRl GM-10 | 300 hr. | |||||
Carbon black content | % | D4218 | 9.000kg | 2.0-3.0% | |||||
Carbon black dispersion | D5596 | 20.000kg | For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 | ||||||
Reference Properties | Oxidative Induction Time | ||||||||
Standard OlT | min | D3895 | 90.000kg | 100 min | |||||
High pressure OlT
| D5885 | 90.000kg | 400 min | ||||||
Oven Aging at 85°C retained after 90 days
| % | D5721 | per each formulation | 55% | |||||
Standard OlT | D3895 | 80% | |||||||
High pressure OlT | D5885 | 80% | |||||||
UV Resistance | |||||||||
High Pressure OlT_% retained after 1600 hrs | % | D5885 | per each formulation | 50% | |||||

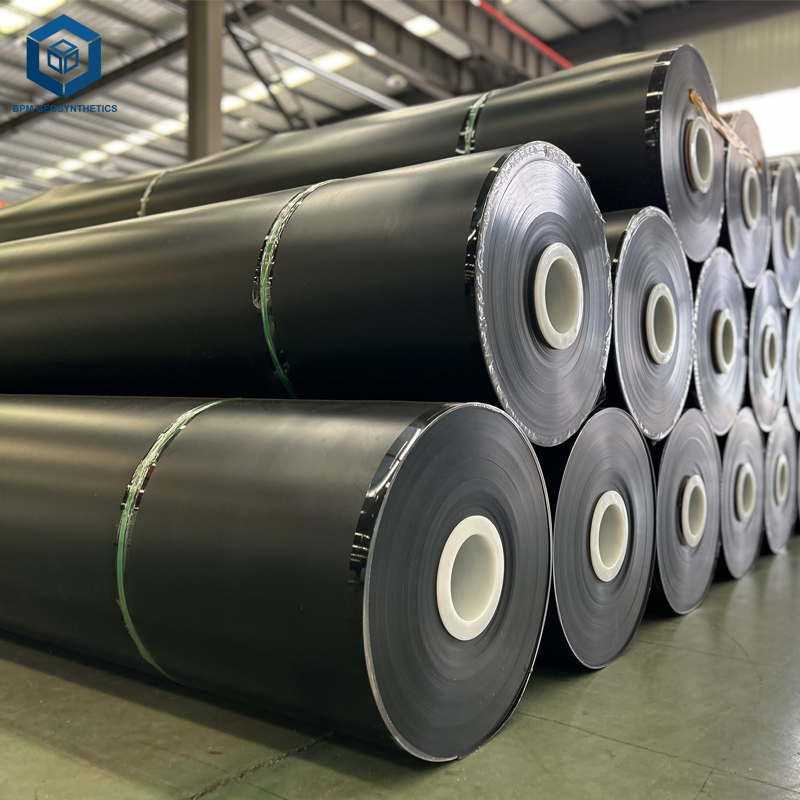

Roll Size | Roll widthe | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size stability | % | 2% | |||||||
HDPE Geo Membrane Features
1. High Durability: HDPE geo membranes are designed to face up to harsh environmental conditions, which includes severe temperatures and UV exposure, making sure a lengthy lifespan.
2. Chemical Resistance: They furnish exquisite resistance to a giant fluctuate of chemicals, making them excellent for containing hazardous components without threat of leakage or degradation.
3. Water Impermeability: HDPE geo membranes grant an nice barrier in opposition to water, stopping seepage and leakage in functions such as landfill liners and pond liners.
4. Flexibility: These HDPE geo membranes are flexible, allowing for handy set up and adaptation to a vary of project shapes and sizes, which enhances their versatility.
5. Smooth Surface: The easy texture of HDPE geo membranes reduces friction, facilitating easier handling, installation, and maintenance.
6. Lightweight: Their lightweight nature simplifies transportation and on-site handling, making set up faster and increased efficient.
7. Customizable Thickness: HDPE geo membranes come in extra than a few thicknesses, allowing for customization based totally absolutely on specific challenge requirements and environmental conditions.
8. Environmental Protection: They aid stop sickness of soil and groundwater, contributing to environmental security and compliance with regulatory standards.
9. Cost-Effective: The lengthy lifespan and low renovation necessities of HDPE geo membranes make them a low-priced answer for many applications.
10. Ease of Welding: HDPE geo membranes can be without problems welded collectively the use of more than a few techniques, ensuring robust seams and similarly improving their integrity as a barrier.
Applications of HDPE Geo Membrane

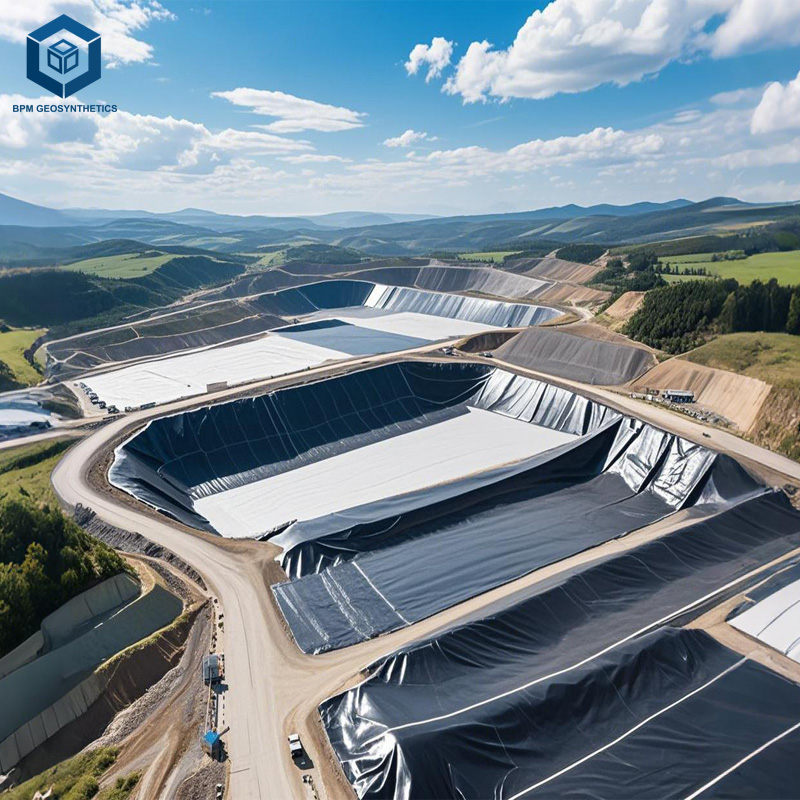

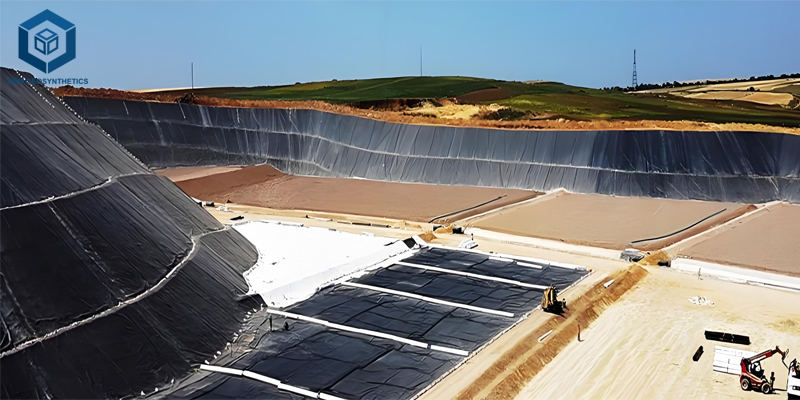

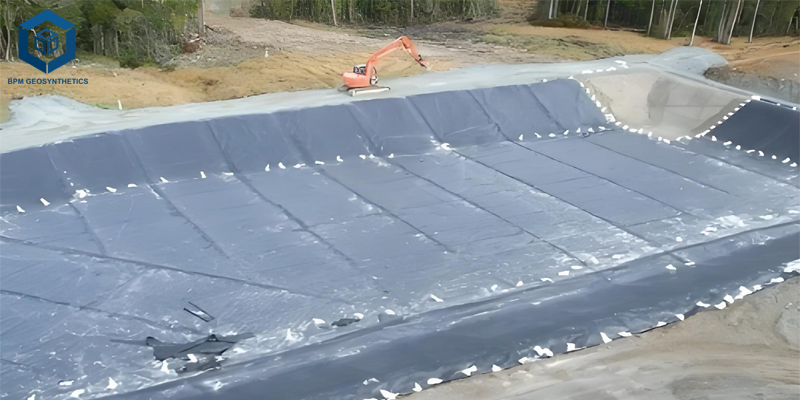

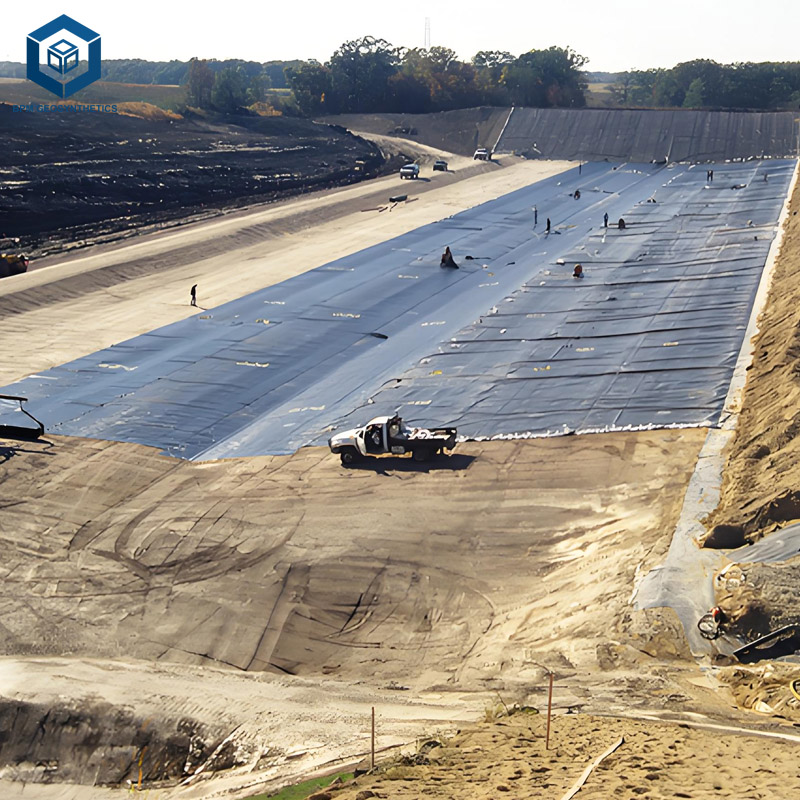

1. Landfill Liners: HDPE geo membranes are especially used as liners in landfills to forestall leachate from contaminating the surrounding soil and groundwater, making superb environmental protection.

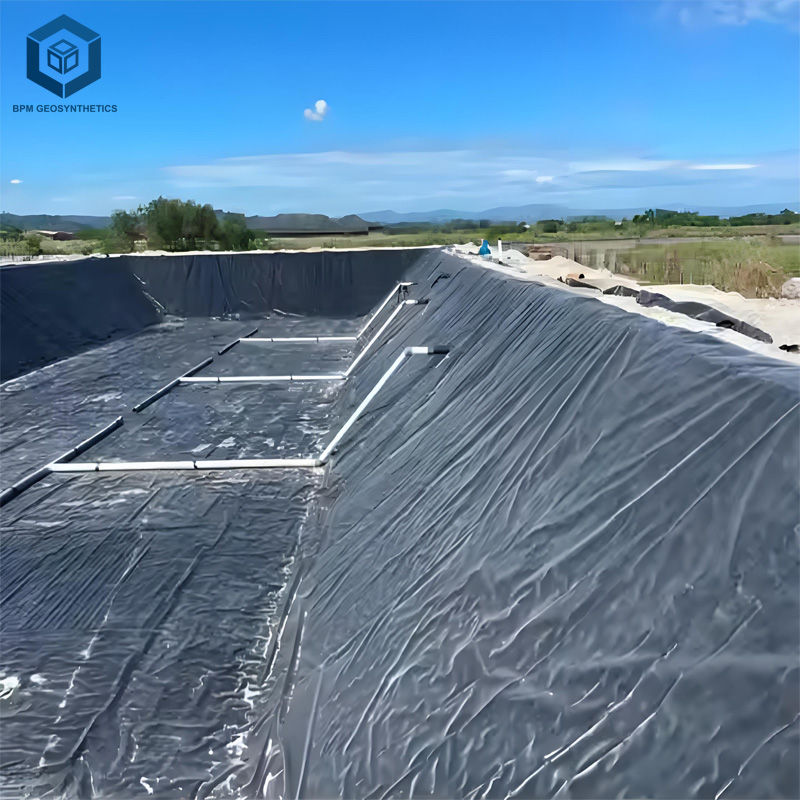

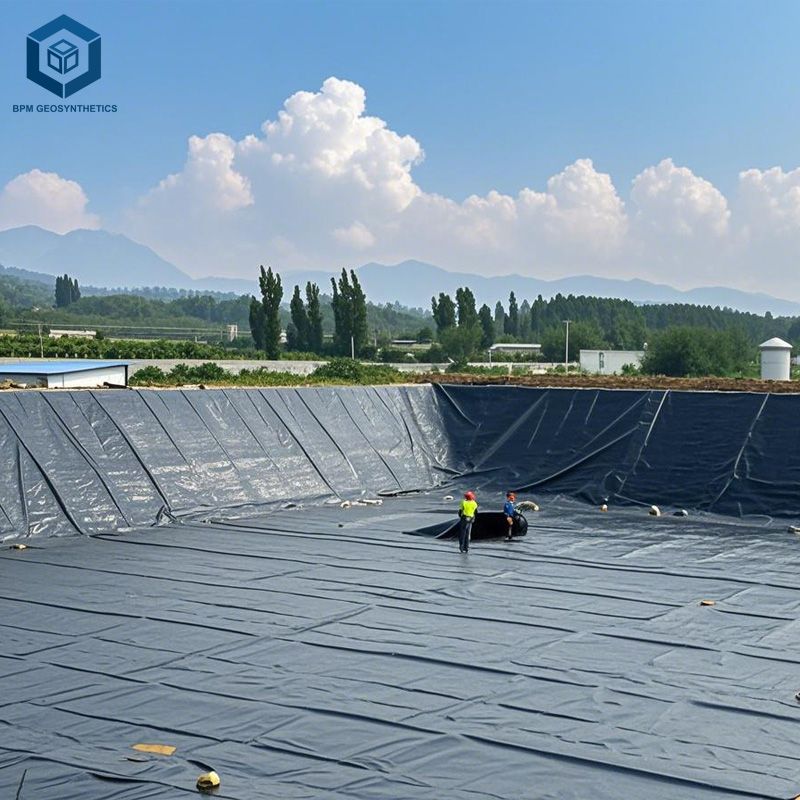

2. Pond Liners: These HDPE geo membranes serve as nice liners for ponds and reservoirs, stopping water loss due to seepage and defending water exquisite from exterior contaminants.
3. Wastewater Treatment: HDPE geo membranes are utilized in wastewater remedy facilities to create impermeable limitations that consist of sludge and prevent the get away of damaging substances.

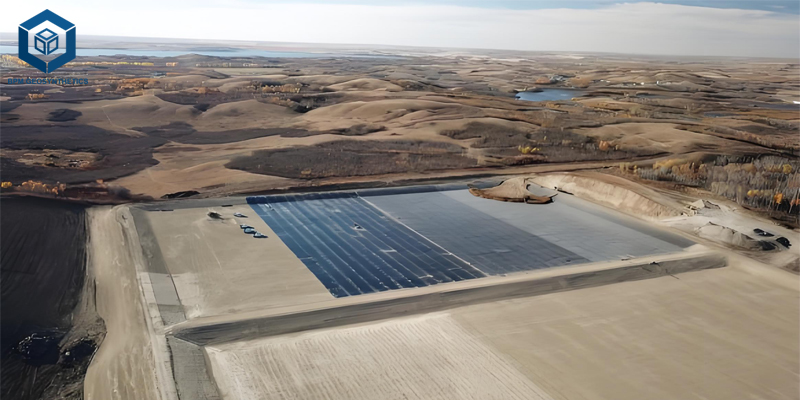

4. Mining Operations: In mining, HDPE geo membranes are used for tailings containment, heap leach pads, and to manipulate the runoff of hazardous materials, making advantageous blanketed and environment fantastic operations.
5. Agricultural Applications: They are employed in agricultural settings for irrigation ponds and to line canals, bettering water conservation and stopping soil erosion.
6. Aquaculture: HDPE geo membranes are used in fish farming and aquaculture structures to create impenetrable environments for aquatic life, stopping infection and bettering water retention.
7. Oil and Gas Industry: These HDPE geo membranes are utilized in secondary containment constructions to end leaks from storage tanks and pipelines, defending the surroundings from spills.
8. Civil Engineering Projects: HDPE geo membranes are used in pretty a variety civil engineering applications, which consist of slope stabilization and erosion control, supporting to manage water go with the flow and quit soil erosion.
9. Green Roofs: They are used in inexperienced roofing structures to create water-resistant barriers, permitting for tremendous drainage whilst helping vegetation and enhancing constructing insulation.
10. Recreation and Sports Fields: HDPE geomembranes can be determined in artificial turf fields and leisure ponds, offering dependable drainage and keeping best stipulations for sports activities activities.
Company Profile
The Best Project Material Co., Ltd. (BPM GEOSYNTHETICS) is a main producer and exporter of exquisite geosynthetic products, such as geomembranes, geotextiles, geogrids, geocells, and geosynthetic clay liners (GCL). Our products, licensed by way of EU CE and GLP, have surpassed ISO 9001, ISO 14001, and OHSAS 18001 standards, and are identified for their quality, performance, and durability.

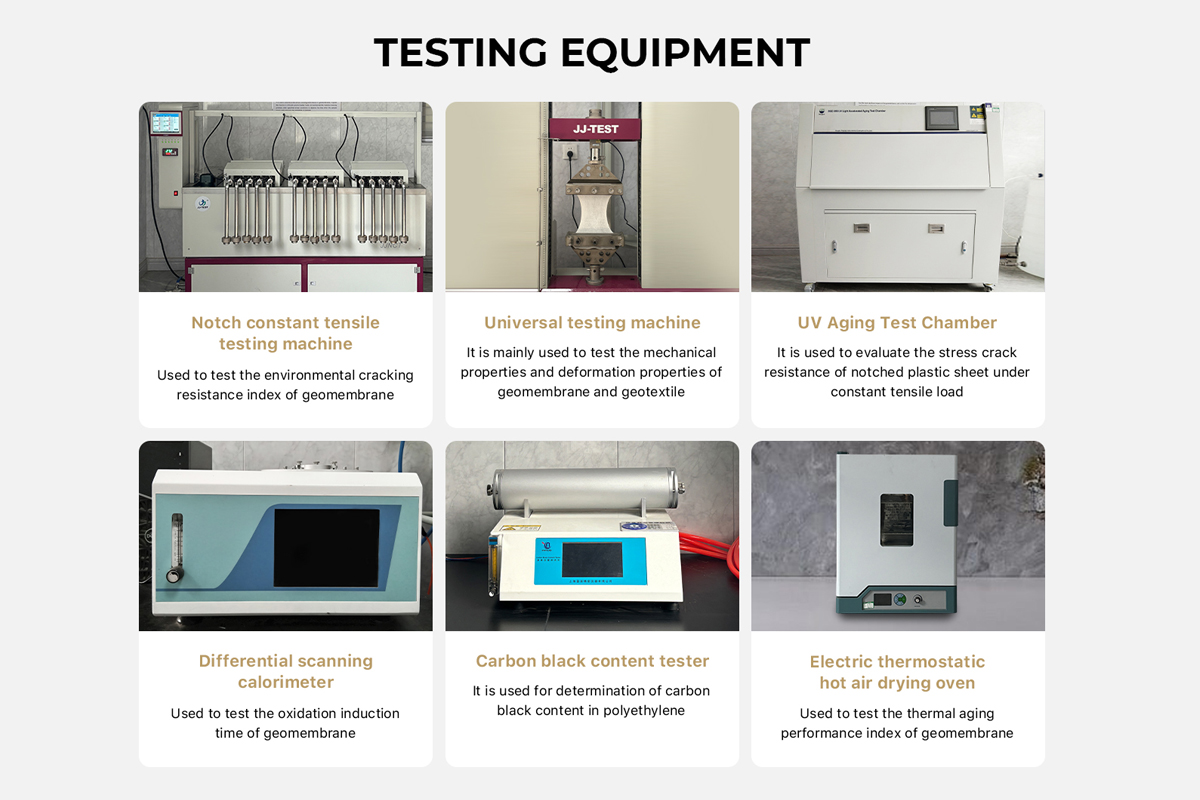

BPM GEOSYNTHETICS has been dedicated to imparting one-stop offerings for international clients in the lookup and development, production, sales, and export of geosynthetic substances when you consider that its institution in 2007. The corporation has a hundred and twenty senior technical abilities specializing in geotechnical materials. The manufacturing manufacturing facility covers an region of over 36000 rectangular meters and is outfitted with industry-leading automatic manufacturing gear and expert checking out instruments. Product innovation, great assurance, and purchaser pride have continually been BPM dedication to partners.
We're dedicated to innovation and quality, presenting bendy cooperation and the exceptional options for engineering tasks worldwide. Our merchandise are utilized in quite a number sectors like aquaculture, erosion control, drainage systems, municipal engineering, mining, and landscaping. We seem to be ahead to partnering with you to clear up complicated challenges with our high-performance geosynthetic products.
