Hdpe geomembrane vs pvc liner durability
HDPE geomembrane vs PVC liner durability refers to the engineering comparison between High-Density Polyethylene geomembranes and Polyvinyl Chloride liners used in containment systems. Both materials function as impermeable barriers in ponds, landfills, reservoirs, and wastewater facilities, but they differ significantly in long-term durability, chemical resistance, structural strength, and environmental performance.
Technical Parameters and Specifications
A detailed HDPE geomembrane vs PVC liner durability evaluation requires comparison of mechanical properties, environmental resistance, and long-term structural stability under field conditions.
| Parameter | HDPE Geomembrane | PVC Liner |
|---|---|---|
| Density | 0.940 – 0.965 g/cm³ | 1.20 – 1.40 g/cm³ |
| Typical Thickness | 0.75 – 2.5 mm | 0.5 – 1.5 mm |
| Tensile Strength | 20 – 35 MPa | 10 – 20 MPa |
| Elongation at Break | 700 – 900% | 250 – 400% |
| UV Resistance | Excellent with carbon black | Moderate |
| Chemical Resistance | Excellent | Moderate to good |
| Expected Service Life | 30 – 80 years | 10 – 25 years |
Structure and Material Composition
Understanding polymer structure is essential for analyzing HDPE geomembrane vs PVC liner durability.
HDPE Geomembrane Composition
High-Density Polyethylene Resin – Main structural polymer
Carbon Black (2–3%) – UV stabilization
Antioxidants – Prevent polymer degradation
Thermal Stabilizers – Maintain performance during extrusion
PVC Liner Composition
Polyvinyl Chloride Resin – Base waterproof polymer
Plasticizers – Increase flexibility
Stabilizers – Improve processing stability
Pigments and Fillers – Provide color and additional properties
Plasticizers used in PVC liners may gradually migrate over time, which can reduce long-term durability in certain environmental conditions.
Manufacturing Process
HDPE Geomembrane Production
Raw HDPE resin inspection and additive blending
Extrusion through flat die or blown film systems
Continuous sheet formation
Automated thickness monitoring
Cooling, trimming, and roll winding
Mechanical property testing and packaging
PVC Liner Manufacturing
PVC resin and plasticizer compounding
Calendering or extrusion sheet formation
Surface embossing or finishing
Cooling and dimensional stabilization
Cutting and roll packaging
Industry Comparison
The following engineering overview summarizes the practical differences in HDPE geomembrane vs PVC liner durability across typical containment applications.
| Material | Durability | Flexibility | Typical Applications |
|---|---|---|---|
| HDPE Geomembrane | Very high | Moderate | Landfills, mining ponds, industrial reservoirs |
| PVC Liner | Moderate | Very high | Decorative ponds, aquaculture systems |
| LLDPE Geomembrane | High | High | Water reservoirs, irrigation ponds |
Application Scenarios
Projects performing an HDPE geomembrane vs PVC liner durability evaluation typically include the following sectors:
Municipal landfill containment systems
Mining tailings and process water ponds
Industrial wastewater storage lagoons
Agricultural irrigation reservoirs

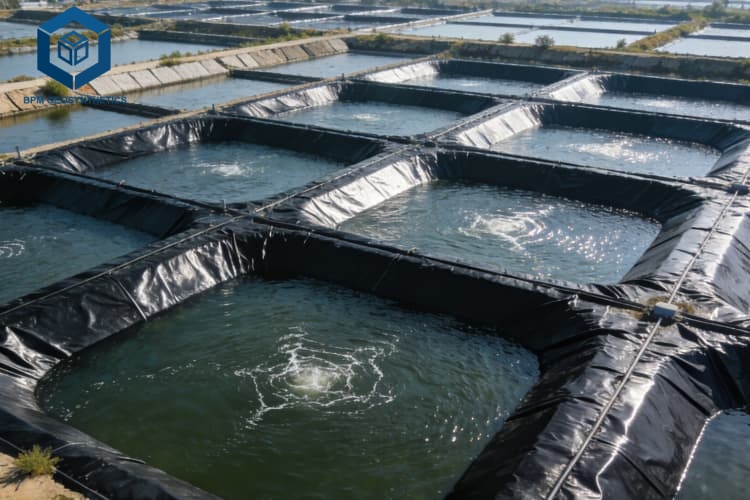

Aquaculture ponds
Stormwater management basins
HDPE geomembranes are generally preferred in large infrastructure projects requiring long-term durability and chemical resistance.
Core Pain Points and Solutions
1. UV Degradation in Outdoor Applications
Solution: Use HDPE geomembranes with carbon black stabilization for long-term UV resistance.
2. Flexibility for Complex Pond Shapes
Solution: PVC liners offer higher flexibility for small irregular pond installations.
3. Chemical Exposure Risk
Solution: HDPE geomembranes provide superior resistance to chemicals and industrial fluids.
4. Long-Term Durability Concerns
Solution: HDPE materials typically provide significantly longer service life.
Risk Warnings and Mitigation
PVC plasticizer migration may reduce flexibility over time
Improper welding can compromise geomembrane seams
Poor subgrade preparation may damage liner materials
Low-quality raw materials may reduce liner lifespan
Improper storage may cause liner deformation or contamination
Procurement and Selection Guidelines
Define containment performance requirements and design life
Conduct a technical HDPE geomembrane vs PVC liner durability evaluation
Assess exposure conditions such as UV and chemical contact
Review supplier manufacturing standards and certifications
Request laboratory testing reports and product datasheets
Evaluate installation methods and welding equipment requirements
Request engineering samples for field verification
Engineering Case Study
A mining process water containment facility required evaluation of liner materials for a 90,000 m² pond. Engineers conducted a detailed HDPE geomembrane vs PVC liner durability study considering chemical exposure, UV conditions, and project lifespan requirements. HDPE geomembrane with 1.5 mm thickness was selected due to its superior chemical resistance and expected service life exceeding 40 years under controlled operating conditions.
FAQ – HDPE Geomembrane vs PVC Liner Durability
1. Which material is more durable?
HDPE geomembranes generally provide significantly longer service life.
2. Why are PVC liners more flexible?
PVC contains plasticizers that increase flexibility.
3. Which liner is better for large industrial ponds?
HDPE geomembranes are commonly used in large containment systems.
4. Are both materials waterproof?
Yes, both function as impermeable barrier liners.
5. What thickness is common for HDPE geomembranes?
Typical thickness ranges from 1.0 mm to 2.0 mm.
6. Do PVC liners degrade in sunlight?
Extended UV exposure may accelerate aging if not stabilized.
7. Which liner resists chemicals better?
HDPE geomembranes offer stronger chemical resistance.
8. Can these liners be welded?
Yes, specialized welding equipment is used for seam joining.
9. Are protective layers required?
Geotextile underlayers are often used to prevent puncture damage.
10. Which material is more cost-effective long term?
HDPE geomembranes typically provide lower lifecycle cost.
Request Quotation or Technical Documentation
Engineering teams conducting an HDPE geomembrane vs PVC liner durability evaluation may request the following documentation:
Geomembrane technical datasheets
Third-party laboratory testing reports
Engineering installation guidelines
Material safety documentation
Project samples for evaluation
Author Expertise and Industry Authority
This technical analysis was prepared by professionals with experience in geomembrane manufacturing, environmental containment engineering, and infrastructure procurement. The information reflects engineering standards and material selection practices used by EPC contractors, environmental consultants, and industrial project developers worldwide.
