Ultimate Guide to Geomembrane for Landfill
In landfill construction, geomembrane is a key anti-seepage material, and their procurement at once affects the project's protection and long-term stability. Compared to traditional waterproofing membrane, geomembrane for landfill ought to stand up to greater complicated environmental conditions. This article systematically explains key factors to think about for the duration of the procurement process, focusing on technical parameters, material properties, and development compatibility.
1. Geomembrane for Landfill Material Selection
Common geo membranes on the market specifically consist of high-density polyethylene (HDPE), linear low-density polyethylene (LLDPE), and polyvinyl chloride (PVC). These substances fluctuate substantially in their performance.
HDPE geomembrane provide excessive mechanical power and chemical resistance, and are nicely resistant to each acidic and alkaline elements in landfill leachate. However, their distinctly terrible flexibility can lead to stress concentrations when uneven contract takes place in the base layer. LLDPE geomembrane provide greater elongation and deformation adaptability whilst retaining precise chemical stability, however their puncture resistance is barely decrease than that of HDPE liner.
When choosing a geomembrane liner, a complete evaluation need to be made primarily based on the landfill's geological conditions, the composition of the waste, and the predicted provider life. For example, in areas with bad basis prerequisites and achievable settlement, substances with greater elongation may also be considered; in environments with excessive chemical corrosion, substances with higher chemical steadiness ought to be prioritized.
2. Geomembrane for Landfill Thickness and Density
2.1 Thickness of Geomembrane for Landfill
The thickness of a hdpe geomembrane immediately influences its impermeability and durability. Common thicknesses vary from 1.0 mm to 2.0 mm. Thicker geomembrane sheet commonly provide higher puncture and stress crack resistance, however this additionally will increase cloth cost. When purchasing, the gorgeous thickness need to be decided primarily based on the landfill diagram requirements, whilst additionally thinking about cost.
2.2 Density of Geomembrane for Landfill
Density is some other essential parameter. High-density substances usually have a denser molecular structure, supplying elevated impermeability. For example, the density of hdpe membrane is typically no much less than 0.940 g/cm³. This parameter immediately affects the material's impermeability and chemical stability.
3. Geomembrane for Landfill Mechanical Performance Requirements
3.1 Mechanical Properties Overview
The mechanical houses of hdpe geomembrana encompass tensile strength, elongation at break, and tear strength. These homes decide the material's potential to stand up to a range of exterior forces in the course of building and use, making sure long-term balance and reliability of the landfill lining system.
3.2 Tensile Strength
Tensile energy determines the material's load-bearing capability beneath anxiety and is in particular essential when laying on slopes. A greater tensile energy reduces the danger of tearing or stretching beneath heavy masses or uneven subgrade conditions.
3.3 Elongation at Break
Elongation at wreck displays the high density polyethylene geomembrane material's toughness; a greater price shows a larger capability to adapt to deformation. This property helps the geo membrane sheet soak up stress prompted via soil contract or thermal enlargement besides cracking.
3.4 Tear Strength
Tear energy relates to the geomembrana in hdpe material's capability to face up to the unfold of injury after localized damage. Strong tear resistance is critical to forestall small punctures from turning into large disasters throughout set up or landfill operation.
3.5 Comparison with Building Waterproofing Materials
Compared to constructing waterproofing materials, the mechanical overall performance necessities for hdpe geo membrane used in landfills are extra stringent. This is due to the fact landfills are uncovered to greater stresses, chemical interactions, and uneven loads. When purchasing, the minimal necessities for every mechanical property ought to be decided based totally on the project's unique circumstances, and fabulous security margins need to be allowed to make certain sturdiness and safety.
4. Geomembrane for Landfill – Durability and Aging Resistance
4.1 Importance of Durability
Landfills are generally designed for a lengthy carrier life, requiring hdpe geomembrane liner to possess high-quality durability. Durable hdpe geomembrane sheet assist keep the integrity of the landfill liner gadget over decades, stopping leaks and environmental contamination.
4.2 Factors Affecting Durability
Factors that specially have an impact on impermeable geomembrane sturdiness encompass UV exposure, temperature fluctuations, chemical corrosion, and biodegradation. Proper consideration of these elements at some point of diagram and set up is indispensable to ensure long-term performance.
4.3 Enhancing Aging Resistance
To beautify growing older resistance, an gorgeous quantity of anti-aging dealers such as carbon black are regularly introduced in the course of hdpe liner sheet production. The carbon black content material is commonly managed between 2% and 3%, successfully resisting UV degradation except negatively impacting membrane liners properties, making sure the geomembrane continues electricity over time.
4.4 Comparison with Temporary Anti-Seepage Materials
Compared to transient anti-seepage materials, textured geomembrane used in landfills have greater sturdiness requirements. This needs a sound fabric formulation, rigorous manufacturing processes, and pleasant manage to meet the long-term carrier existence expectations of cutting-edge landfill projects.
5. Geomembrane for Landfill – Seam Quality Assurance
5.1 Importance of Seam Quality
Impermeable geomembrane liner set up usually requires on-site becoming a member of of more than one rolls. The exceptional of these joints is immediately associated to the ordinary anti-seepage effectiveness, as poorly welded seams can compromise the liner machine and lead to leakage.

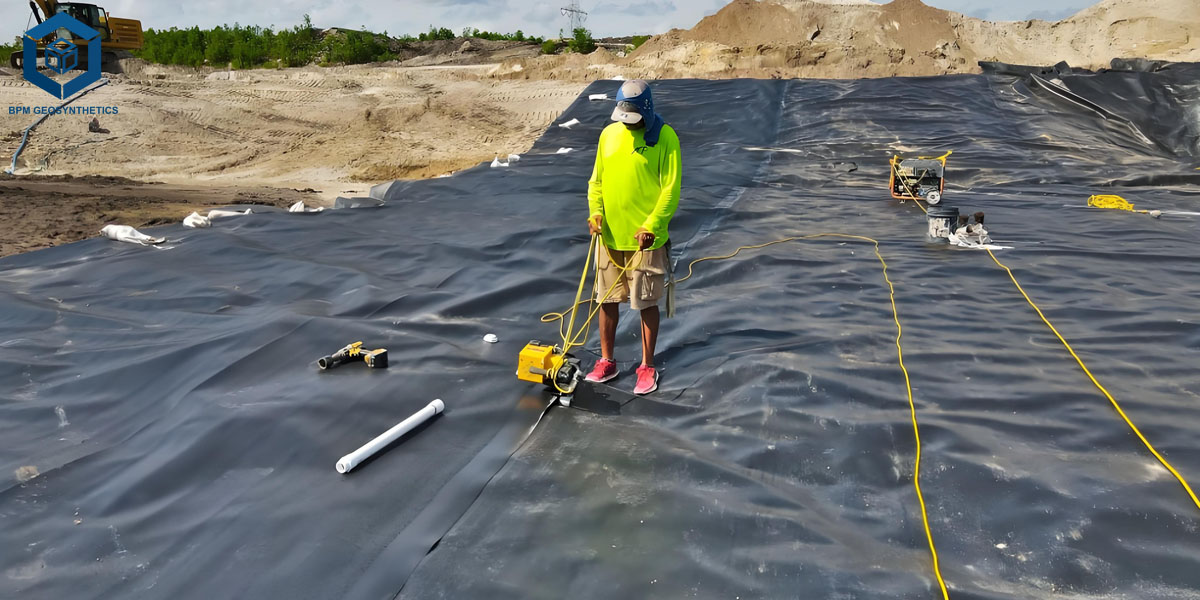

5.2 Hot Wedge Welding
Hot wedge welding heats the hdpe dam liners to soften it, then pressurizes it together. This creates a robust and long lasting joint, making sure splendid seam integrity, however it requires strict running techniques, educated personnel, and managed environmental prerequisites to obtain most appropriate results.
5.3 Extrusion Welding
Extrusion welding makes use of molten welding rods to fill the joints, making it appropriate for becoming a member of complicated shapes or areas that are challenging to get entry to with different methods. While it affords robust seam connections, its effectivity is especially low in contrast to warm wedge welding and might also require extra time for the duration of installation.
6. Geomembrane for Landfill - Quality Inspection and Certification
6.1 Quality Inspection Process
Quality inspection in the course of the hdpe impermeable liner procurement manner must consist of three steps: uncooked cloth inspection, manufacturing technique inspection, and completed product inspection.
Raw material inspection focuses on the great of the base material and components to make certain regular properties. Production method inspection video display units the balance of technique parameters to warranty uniformity in manufacturing. Finished product inspection verifies that the closing reinforced polypropylene geomembrane meets overall performance standards, which include thickness, density, mechanical properties, and impermeability.
6.2 Key Certifications
Important certifications encompass product fantastic administration machine certification (such as ISO 9001) and environmental administration gadget certification (such as ISO 14001). These certifications exhibit that the producer has hooked up a complete satisfactory manipulate system, making sure product stability, reliability, and environmental compliance.
6.3 Verification and Testing
When buying hdpe membrane sheet, suppliers ought to be requested to furnish the indispensable certification archives and check reports. Additionally, third-party checking out can be organized as wanted to confirm performance, giving challenge proprietors self belief in the material’s long-term sturdiness and effectiveness.
7. Geomembrane for Landfill Transportation and Storage Requirements
7.1 Protection During Transportation
Polyethylene geomembrane require cautious safety at some point of transportation to stop damage. Appropriate packaging materials, such as protecting movies and sturdy wrapping, ought to be used to stop scratches, punctures, or deformation of the geomembrane in hdpe floor at some point of managing and transit.
7.2 Proper Storage Conditions
The storage region need to be flat, solid, and free from sharp objects to keep away from nearby subsidence that should motive membrane deformation. Geomembrane liner landfill ought to additionally be saved out of direct sunlight, away from warmness sources, and separated from chemical substances to forestall untimely getting old or chemical degradation.
7.3 Stringent Requirements Compared to Other Materials
Geomembrane material have greater stringent storage necessities than different constructing materials. Improper storage can speed up cloth aging, decrease mechanical performance, and shorten the provider lifestyles of the geomembrane waterproofing, probably compromising the landfill’s anti-seepage system.
7.4 Comprehensive Procurement Considerations
The procurement of hdpe liner material for landfills requires complete consideration from more than one perspectives. It is vital to consider each the material's technical specs and the supplier's technical provider capabilities, making sure that the chosen product meets contemporary layout necessities whilst preserving long-term performance. Only thru systematic procurement administration can a protected and dependable landfill geomembrane device be ensured.
Summary
Selecting bpm geomembrane is a systematic task that requires complete consideration of more than one dimensions, which includes material, performance, software scenarios, producer reputation, price, etc. Scientific resolution can now not solely make sure the easy development of the project, however additionally correctly lengthen the carrier lifestyles of the assignment and enhance the ordinary excellent and protection of the project. In this process, keeping proper conversation with suppliers and acquiring expert recommendation are additionally the key to making sure the correctness of decision-making.
