Landfill Geomembrane
Landfill geomembrane are an essential aspect of waste administration systems, designed to grant dependable boundaries for controlling and defending leachate and pollution from garbage. These geomembranes are made of high-density polyethylene (HDPE) or different long lasting materials, making sure secure and tremendous administration of landfills.
-Leak proof: Designed to forestall the migration of leachate and defend groundwater and soil from pollution.
-Durability: resistant to puncture, tear, and environmental pressure, making sure long-term overall performance beneath harsh landfill conditions.
-Chemical resistance : in a position to face up to corrosive chemical compounds and waste, preserving structural integrity over time.
Landfill geomembrane are critical for sustainable waste management, contributing to environmental safety and regulatory compliance.
Landfill geomembranes are necessary factors in current day waste administration systems, specifically designed to create a reliable barrier that prevents the migration of leachate and contaminants from landfills into the surrounding environment. Typically made from high-density polyethylene (HDPE) or extraordinary sturdy materials, these geomembranes furnish great sturdiness and resistance to punctures, tears, and environmental stressors. Their primary attribute is to protect groundwater and soil from doable contamination brought about via hazardous waste materials.
Furthermore, landfill geomembranes are engineered to stand up to aggressive chemical compounds decided in a range of types of waste, making certain that they keep their structural integrity over time. Their lightweight and flexible nature moreover approves for handy installation, making them adaptable to wonderful landfill designs and terrains. Additionally, thru minimizing the prefer for sizable monitoring and maintenance, these geomembranes make a contribution to inexpensive landfill management. Overall, landfill geomembranes play a necessary feature in making certain environmental safety and regulatory compliance, supporting sustainable waste administration practices.
Parameter
ltem | Detailed item | Unit | Standard | Test Frequency | GS075 | GS010 | GS015 | GS020 | GS030 |
Mechanical Properties | Thickness | mm | D5199 | per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | D1505/D792 | 90.000kg | 0.94g/cc | ||||||
Tensile Properties | |||||||||
Yield Strength | KN/m | D6693 Type Iv | 9.000 kg | 11 | 15 | 22 | 29 | 44 | |
Break Strength | KN/m | 20 | 27 | 40 | 5 3 | 80 | |||
Yield Elongation | % | 12 | 12 | 12 | 12 | 12 | |||
Break Elongation | % | 700 | 700 | 700 | 700 | 700 | |||
Tear Resistance | N | D1004 | 20.000kg | 93 | 125 | 187 | 249 | 374 | |
Puncture Resistance | N | D4883 | 20.000kg | 240 | 320 | 480 | 640 | 960 | |
Stress Crack Resistance | Hr. | D5397 | per GRl GM-10 | 300 hr. | |||||
Carbon black content | % | D4218 | 9.000kg | 2.0-3.0% | |||||
Carbon black dispersion | D5596 | 20.000kg | For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 | ||||||
Reference Properties | Oxidative Induction Time | ||||||||
Standard OlT | min | D3895 | 90.000kg | 100 min | |||||
High pressure OlT
| D5885 | 90.000kg | 400 min | ||||||
Oven Aging at 85°C retained after 90 days
| % | D5721 | per each formulation | 55% | |||||
Standard OlT | D3895 | 80% | |||||||
High pressure OlT | D5885 | 80% | |||||||
UV Resistance | |||||||||
High Pressure OlT_% retained after 1600 hrs | % | D5885 | per each formulation | 50% | |||||
Roll Size | Roll widthe | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size stability | % | 2% | |||||||
Landfill Geomembrane Features
-High impermeability: Landfill geomembrane to supply an positive barrier to stop leachate and pollutants, and to forestall any damaging materials from migrating to soil and groundwater.
-Chemical resistance: Designed to face up to a number of corrosive chemicals, making sure sturdiness and long-term overall performance in harsh landfill environments.
-Puncture and tear resistance: Made of sturdy substances that can face up to bodily harm and keep integrity even underneath stress from waste and environmental factors.
-UV stability: After treatment, it can withstand the degradation of UV rays and permit for long-term out of doors use except notably decreasing performance.
-Flexibility: The bendy layout approves for handy set up on a variety of surfaces and shapes, adapting to complicated landfill designs and contours.
-Lightweight structure: effortless to take care of and deploy directly, lowering labor charges and enhancing effectivity throughout installation.
-Environmental compliance: Complies with regulatory requirements for waste manipulate and helps landfill operators comply with environmental safety laws.
These traits make landfill geomembranes an vital preference for superb waste administration and environmental protection.
Applications of Landfill Geomembrane

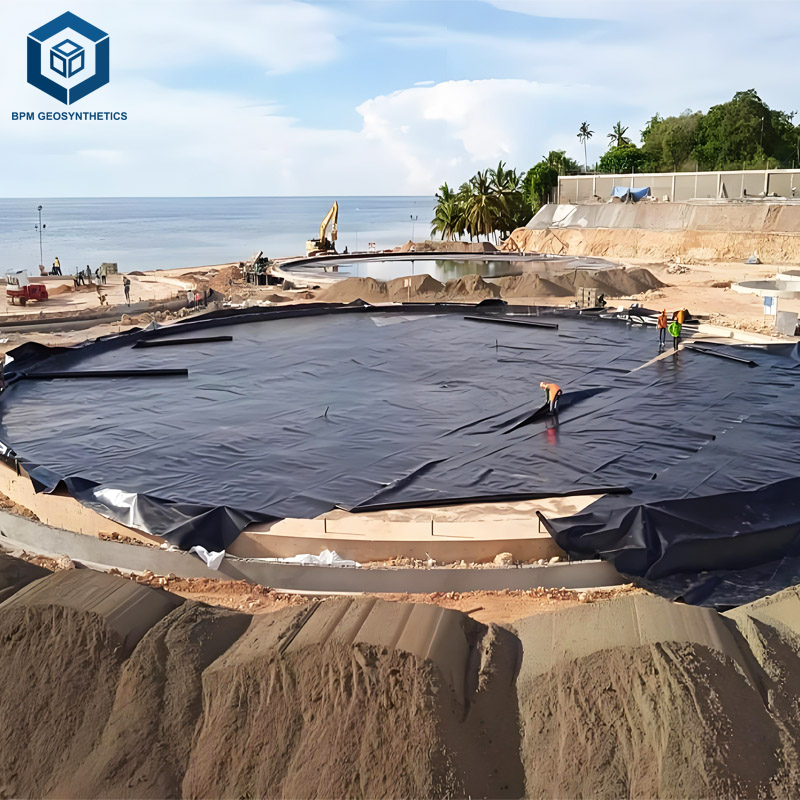

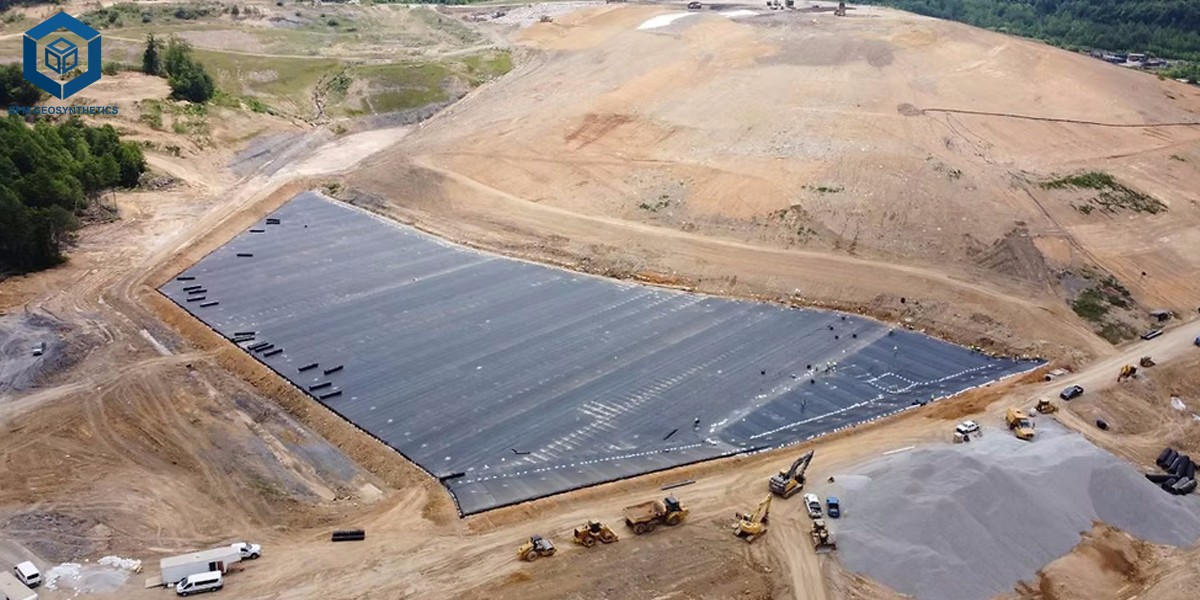

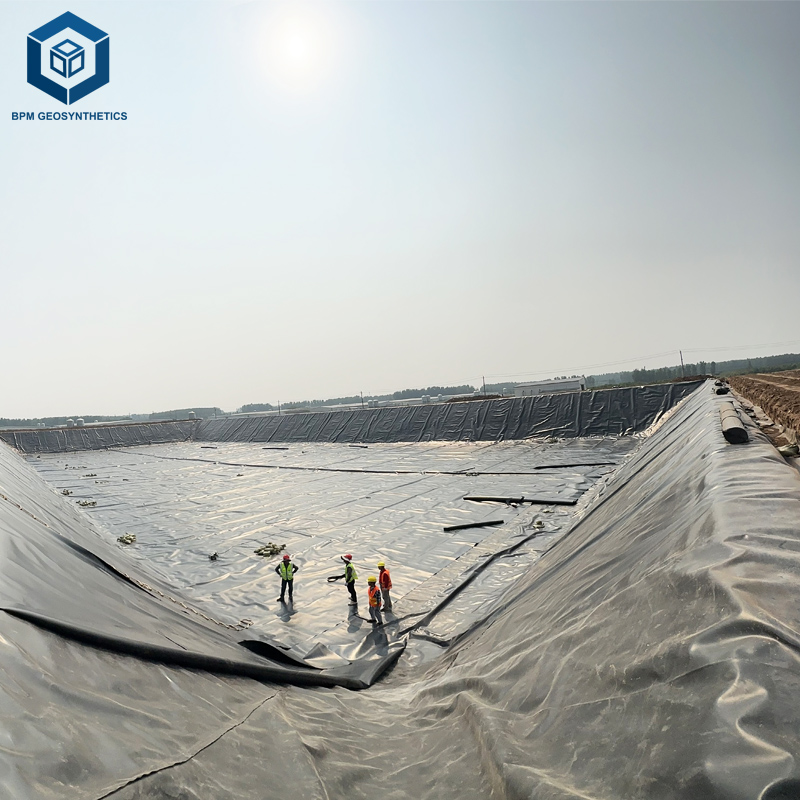

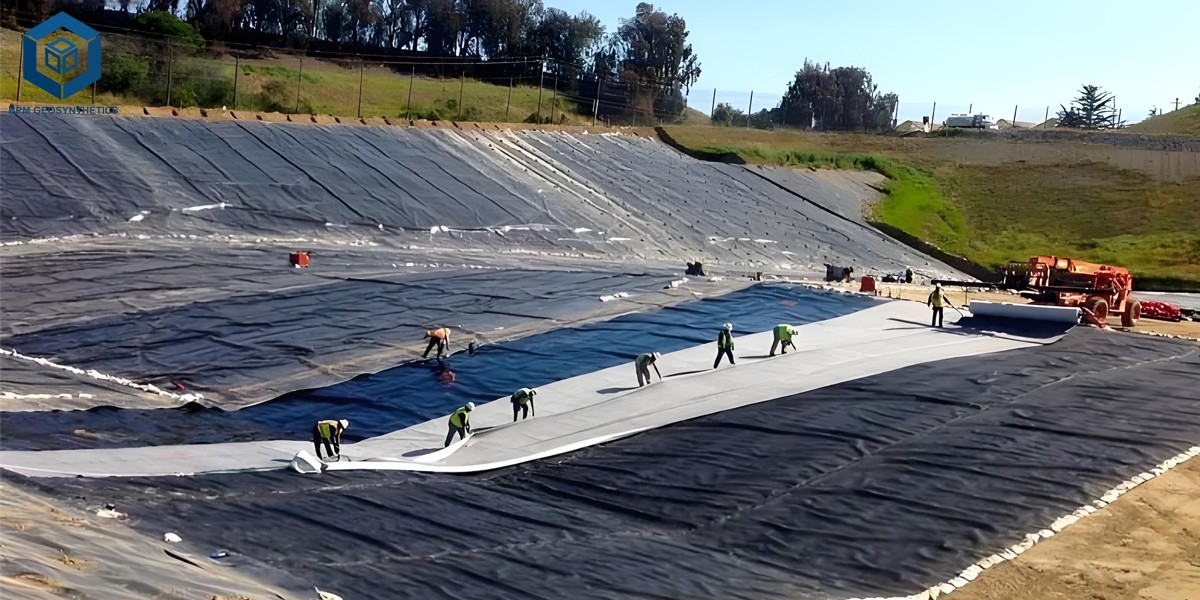

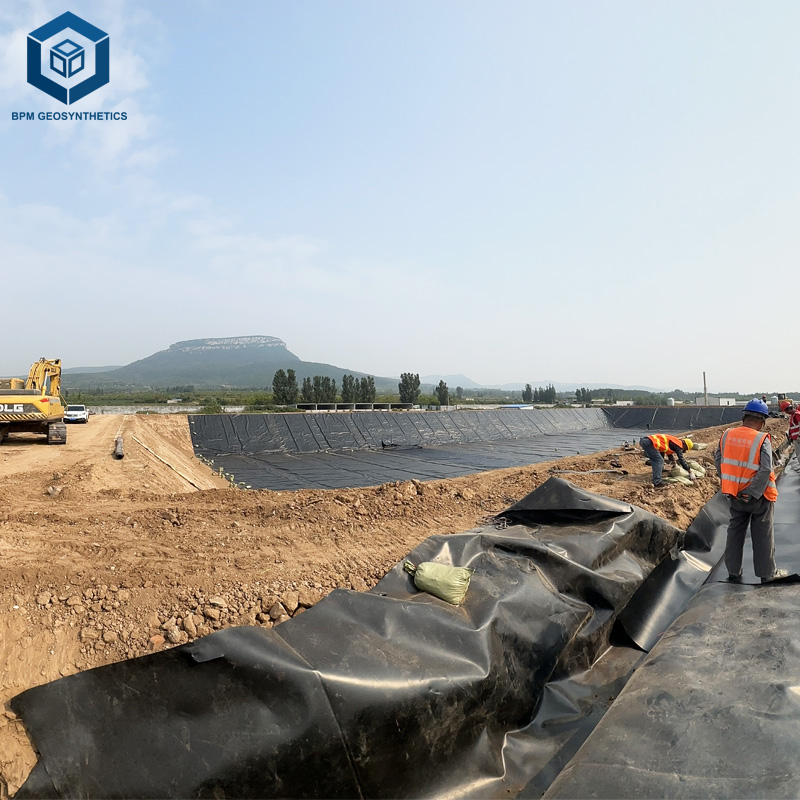

-Waste control: Landfill geomembranes are often used in landfills to furnish boundaries and stop leachate from contaminating the surrounding soil and groundwater.
-Leachate series system: Landfill geomembranes are used in the development of leachate series structures to assist manipulate and information the float of leachate for excellent remedy and disposal.
-Cover system: used for the cowl of enclosed landfill sites. Geomembrane can forestall water infiltration, limit the technology of leachate, and shield the environment.
-Polluted soil remediation: In tasks aimed at remediation of contaminated sites, geomembranes can isolate pollution and stop similarly diffusion for the duration of the cleansing process.

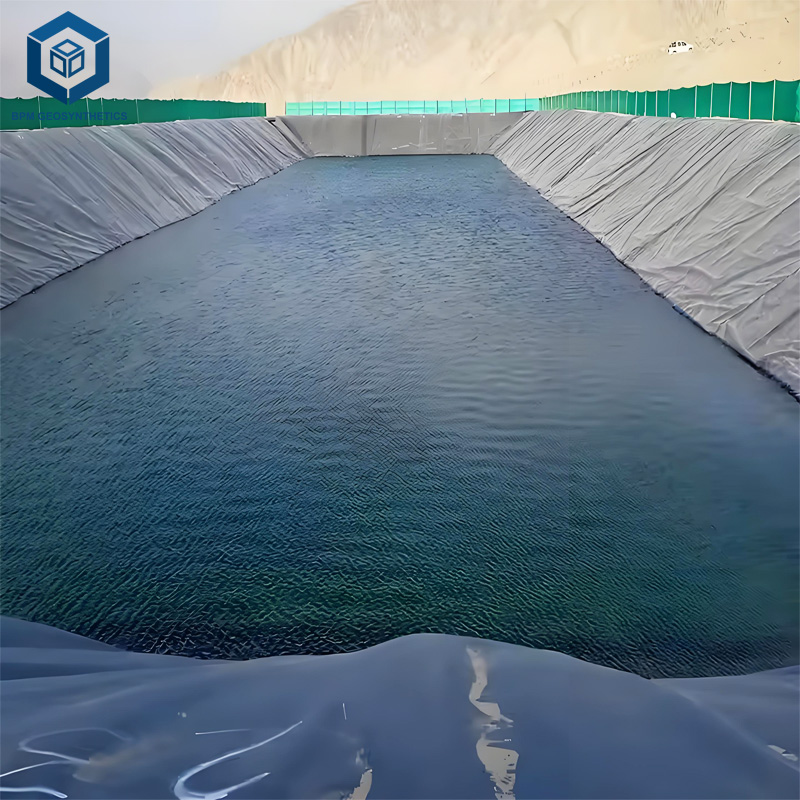

-Wastewater treatment: Geomembranes are used in the graph of waste therapy tanks to make sure that handled wastewater does no longer seep into the surrounding land.
-Mining operations: In mining, geomembranes are used in tailings containment structures to forestall the launch of dangerous components into the environment.
-Agricultural applications: Geomembranes are used for agricultural waste management, assisting to manipulate waste and forestall water supply pollution.
These functions exhibit the multifunctionality and significance of landfill geomembranes in more than a few fields, aiding environmental safety and wonderful waste management.
Company Profile
The Best Project Material Co., Ltd. (BPM GEOSYNTHETICS) is a leading manufacturer and exporter of high-quality geosynthetic products, including geomembranes, geotextiles, geogrids, geocells, and geosynthetic clay liners (GCL). Our products, certified by EU CE and GLP, have passed ISO 9001, ISO 14001, and OHSAS 18001 standards, and are recognized for their quality, performance, and durability.

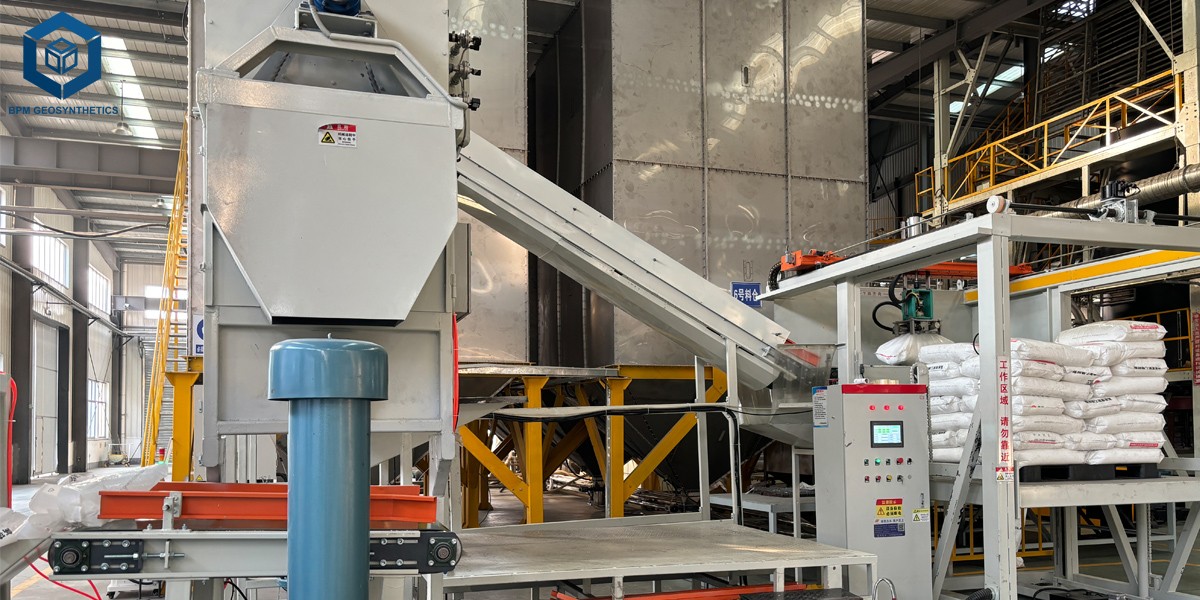

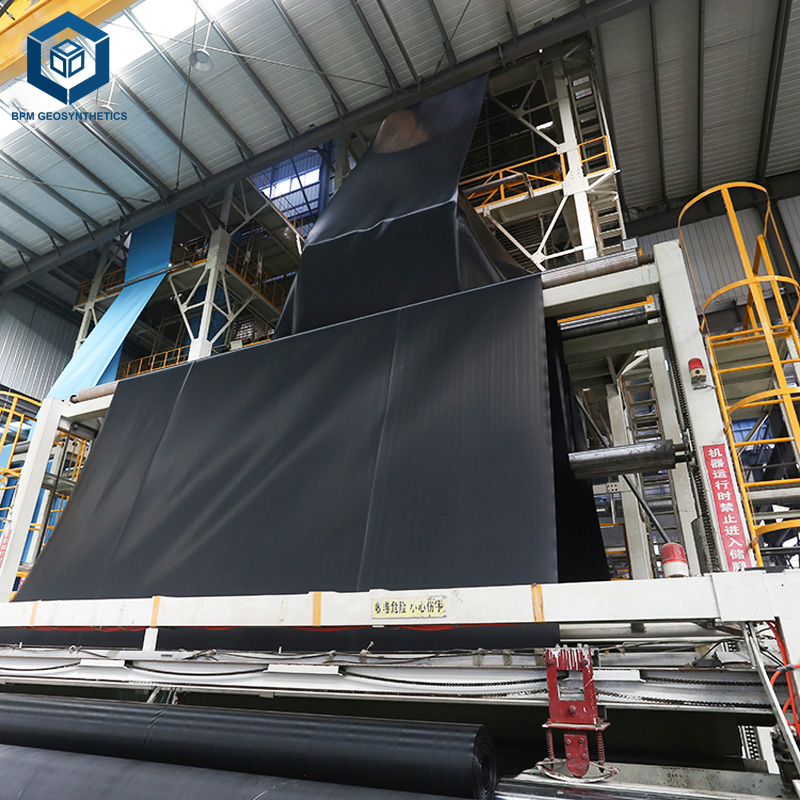

BPM GEOSYNTHETICS has been committed to providing one-stop services for global customers in the research and development, production, sales, and export of geosynthetic materials since its establishment in 2007. The company has 120 senior technical talents specializing in geotechnical materials. The manufacturing factory covers an area of over 36000 square meters and is equipped with industry-leading automated production equipment and professional testing instruments. Product innovation, quality assurance, and customer satisfaction have always been BPM commitment to partners.
We're committed to innovation and quality, offering flexible cooperation and the best solutions for engineering projects worldwide. Our products are utilized in various sectors like aquaculture, erosion control, drainage systems, municipal engineering, mining, and landscaping. We look forward to partnering with you to solve complex challenges with our high-performance geosynthetic products.
