1mm HDPE Geomembrane
1mm HDPE geomembrane is a high-performance impermeable liner extensively used in environmental, mining, agricultural, and civil engineering projects. Made from high-density polyethylene, this geomembrane gives an most efficient mixture of flexibility, chemical resistance, and mechanical strength, making it best for purposes that demand long-term containment and environmental protection.
- Thickness: 1mm (approx. forty mil), balancing energy and flexibility
- Material: High-density polyethylene (HDPE) for extremely good sturdiness and impermeability
- Chemical Resistance: Withstands publicity to acids, alkalis, and hydrocarbons
- UV Resistance: Suitable for outside applications
- Seamable: Compatible with thermal welding for secure, leak-proof installation
- Applications: Ideal for landfill liners, fish ponds, mining tailings, reservoirs, wastewater treatment, and canals
1. 1mm HDPE Geomembrane Product Overview
The 1mm HDPE geomembrane is a top rate impermeable membrane made from high-density polyethylene (HDPE). With superb durability, chemical resistance, and UV stability, it serves as a dependable barrier for fluid containment and environmental protection. Widely used in civil engineering, mining, agriculture, and waste administration projects, this liner presents an perfect stability between power and flexibility.
2. 1mm HDPE Geomembrane Key Features and Benefits
2.1 1mm HDPE Geomembrane Thickness
The 1mm thickness (approximately forty mil) gives an best stability between energy and flexibility. It provides splendid puncture resistance and structural integrity, making it appropriate for purposes the place average to excessive mechanical stress is expected, whilst nevertheless permitting for easy and environment friendly installation.
2.2 1mm HDPE Geomembrane Material Composition
Manufactured the usage of magnificent virgin HDPE (High-Density Polyethylene) resin, the geomembrane is free from recycled additives, making sure regular performance, longer lifespan, and higher resistance to cracking, stress, and chemical exposure.
2.3 1mm HDPE Geomembrane Durability
Designed for difficult environments, the geomembrane withstands punctures, tears, abrasions, and heavy loads. Its long lasting composition ensures long-term functionality, even beneath annoying subject prerequisites such as uneven terrain, sharp subgrade, or heavy equipment traffic.
2.4 1mm HDPE Geomembrane UV & Weather Resistance
Engineered to withstand degradation induced by using ultraviolet (UV) exposure, severe temperatures, and fluctuating climate conditions. This makes it perfect for each exposed outside applications (e.g., ponds, landfills) and buried installations (e.g., tunnels, foundations), retaining integrity over time except turning into brittle or discolored.
2.5 1mm HDPE Geomembrane Chemical Resistance
The geomembrane is chemically secure and unaffected by means of publicity to most acids, alkalis, salts, oils, and hydrocarbons. This chemical resistance makes it extraordinarily appropriate for hazardous waste containment, industrial lagoons, and chemical storage applications.
2.6 1mm HDPE Geomembrane Low Permeability
With an quite low permeability rate, the liner acts as a extraordinarily high-quality barrier in opposition to the migration of beverages and gases. This property is quintessential for environmental protection, water conservation, and leachate control in landfill, mining, and water storage applications.
2.7 1mm HDPE Geomembrane Seam Welding
The easy HDPE floor is well suited with a variety of thermal welding methods such as warm wedge welding and extrusion welding. These strategies create strong, leak-proof seams that make sure the integrity of the liner machine at some point of and after installation.
3. 1mm HDPE Geomembrane Technical Specifications (Sample Values – Customizable)
| Property | Test Method | Value |
Thickness | ASTM D5199 | 1.0 mm (±0.05 mm) |
Tensile Strength (MD/TD) | ASTM D6693 | ≥ 28 kN/m |
Elongation at Break | ASTM D638 | ≥ 700% |
Puncture Resistance | ASTM D4833 | ≥ 600 N |
Tear Resistance | ASTM D1004 | ≥ 150 N |
Carbon Black Content | ASTM D1603 | 2.0–3.0% |
Water Permeability | ASTM E96 | ≤ 1×10⁻¹³ cm/s |
UV Resistance | ASTM D4355 | ≥ 90% strength retention after 1600 hrs |
4. 1mm HDPE Geomembrane Certifications and Standards
BPM’s 1mm HDPE geomembrane meets a extensive vary of global standards, making sure it is appropriate for use in international infrastructure and environmental projects. These certifications replicate the product’s excessive quality, safety, and reliability in more than a few applications.
- GRI-GM13 compliance, following the Geosynthetic Research Institute's specification for HDPE geomembranes
- ISO 9001:2015 licensed Quality Management System, making sure regular manufacturing and pleasant control
- CE Certification (Conformité Européenne), permitting seamless export to European Union markets
- TUV and SGS check reviews reachable on request, imparting unbiased verification of product performance
- RoHS and REACH compliance, confirming the product is free from hazardous components and protected for use in environmentally touchy areas
These certifications make BPM’s geomembrane a relied on preference for engineers, contractors, and authorities companies worldwide.
5. 1mm HDPE Geomembrane Quality Assurance and Testing

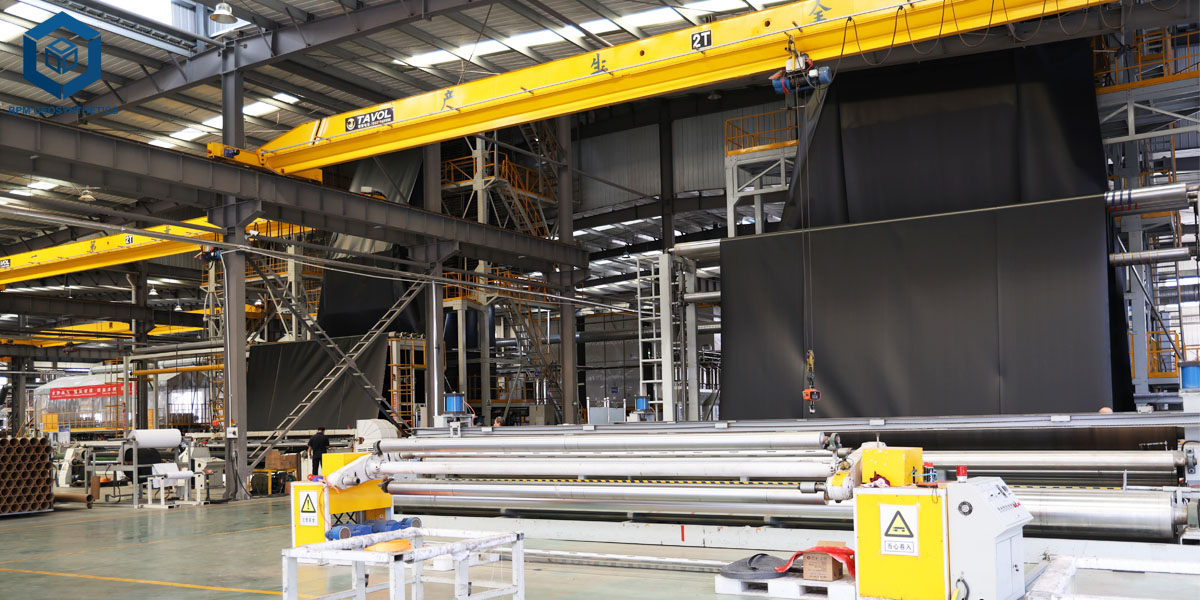

BPM enforces strict exceptional manage methods for the duration of each and every stage of manufacturing to make certain the 1mm HDPE geomembrane performs reliably beneath disturbing conditions. All manufacturing steps are carried out beneath ISO 9001-certified systems, from uncooked fabric sourcing to remaining product delivery.
In-house pleasant exams include:
- Verification of uncooked fabric properties, such as soften drift index (MFI) and resin density
- Precise thickness dimension and visible inspection for uniformity and floor quality
- Mechanical overall performance testing, together with tensile strength, puncture resistance, and tear resistance
- Seam energy trying out to make sure integrity after discipline welding
- Evaluation of carbon black content material and dispersion for UV safety and long-term stability
- UV growing old resistance and chemical publicity trying out to simulate real-world environmental conditions
Third-party trying out from approved laboratories such as SGS or BV can be supplied upon request, imparting delivered assurance and documentation for regulated or high-risk projects.
6. 1mm HDPE Geomembrane Typical Applications
The 1mm HDPE geomembrane is a versatile liner answer used throughout more than one industries the place invulnerable containment and environmental safety are critical. Its stability of flexibility, chemical resistance, and mechanical electricity makes it appropriate for a broad vary of projects.

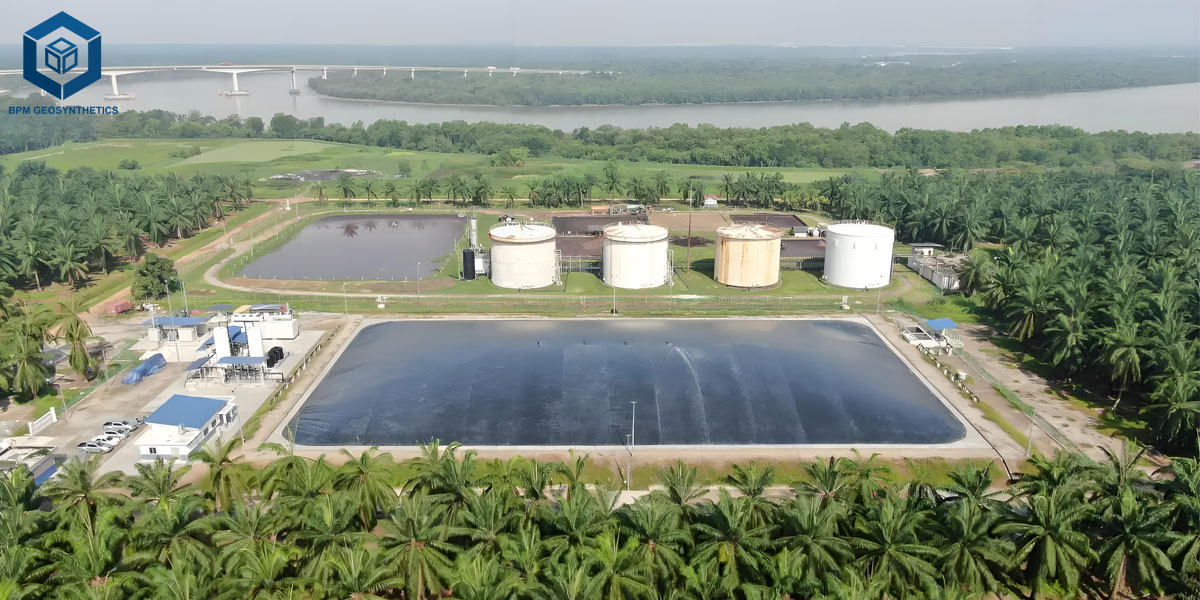

6.1 1mm HDPE Geomembrane for Landfills: Commonly used as a base liner, cowl system, and in leachate series layers to stop infection of surrounding soil and groundwater. It serves as a imperative environmental barrier in municipal and industrial waste disposal facilities.
6.2 1mm HDPE Geomembrane for Aquaculture: Widely used in fish ponds, shrimp farms, hatcheries, and different aquatic farming systems. The liner ensures a managed water surroundings by means of stopping seepage, decreasing water loss, and resisting harm from aquatic existence or UV exposure.
6.3 1mm HDPE Geomembrane for Mining: Applied in tailings storage facilities, heap leach pads, and technique ponds to comprise mining effluents and chemicals. Its fantastic chemical resistance and impermeability assist stop groundwater air pollution in mining operations.

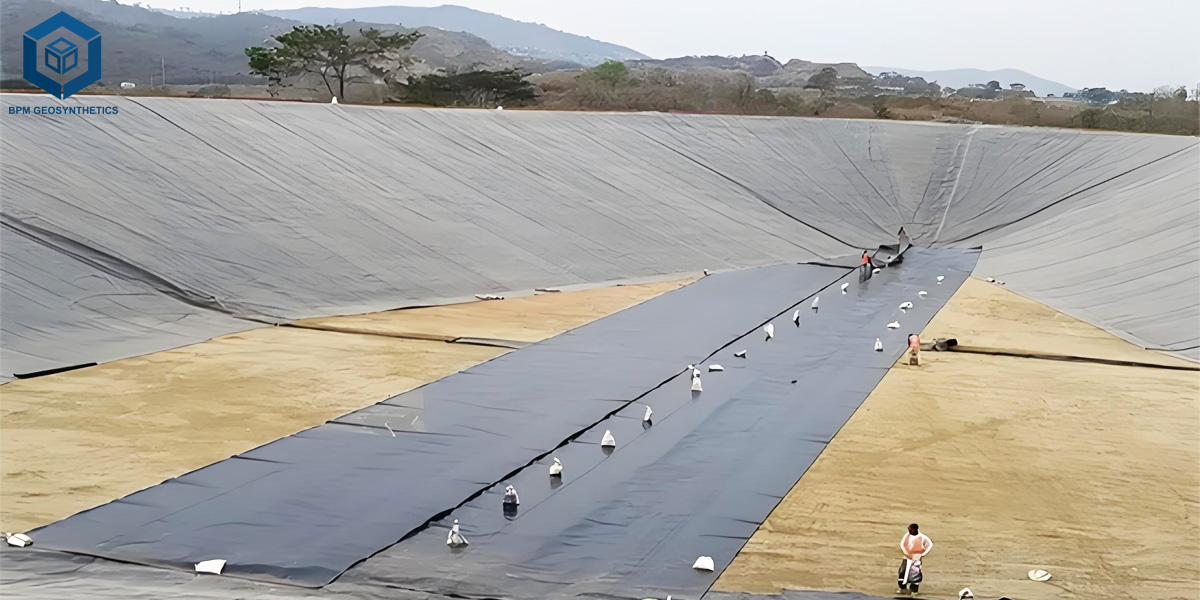

6.4 1mm HDPE Geomembrane for Water Reservoirs and Irrigation Canals: Used to line agricultural and municipal reservoirs, canals, and ditches to decrease seepage, preserve water, and keep environment friendly irrigation systems.
6.5 1mm HDPE Geomembrane for Industrial Containment: Serves as secondary containment for chemical storage tanks, wastewater lagoons, and hazardous liquid protecting areas. Its resistance to corrosive resources ensures protected and long-lasting containment.
6.6 1mm HDPE Geomembrane for Tunnels and Foundations: Acts as a water-resistant barrier in underground construction, consisting of tunnel linings, basement foundations, and subgrade waterproofing systems. It protects structural elements from moisture intrusion and water pressure.

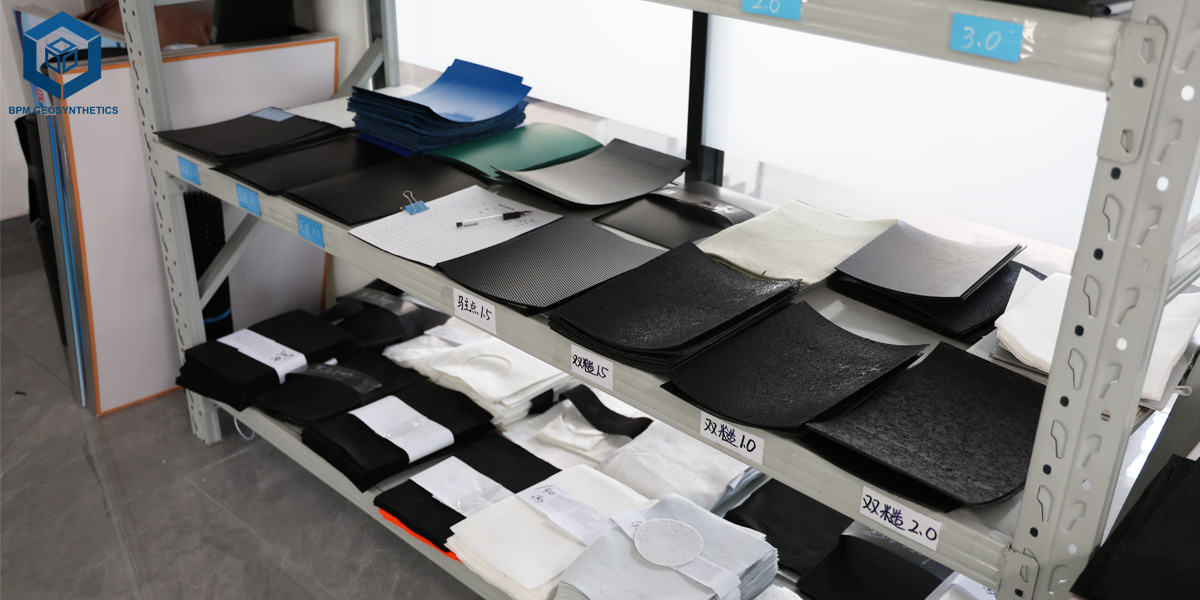

7. BPM HDPE Geomembrane Customization Options
To meet the unique wants of various engineering and environmental projects, BPM Geosynthetics affords a huge vary of customization picks for its HDPE geomembrane products. These tailor-made options make certain most beneficial performance, ease of installation, and compatibility with various challenge conditions.
7.1 Size customization: Available in a range of roll widths (up to 10 meters) and customized lengths to limit discipline seams and optimize set up time. Thickness preferences vary from 0.2 mm to three mm, permitting engineers to pick the best stability between flexibility and mechanical strength.
7.2 Color options: While preferred black is most frequent due to its most efficient UV resistance, liners are additionally on hand in green, white, or dual-color combinations. White or reflective surfaces can assist decrease floor heat, making them appropriate for uncovered applications.
7.3 Textured surface: In addition to easy liners, BPM affords single-sided and double-sided textured geomembranes. Texturing will increase floor friction, offering higher interface balance on steep slopes or when positioned in opposition to soil or different geosynthetics.
7.4 Pre-fabricated panels: Large panels can be factory-welded in managed conditions, lowering the wide variety of area seams and extensively enhancing set up efficiency, in particular in large-scale tasks such as landfills or reservoirs.
7.5 Liner structures integration: HDPE liners can be blended with different geosynthetic aspects such as nonwoven geotextiles, drainage composites, or geosynthetic clay liner (GCL) to structure multi-layer barrier structures for improved containment and protection.
8. 1mm HDPE Geomembrane Packaging and Delivery
BPM Geosynthetics ensures that each roll of 1mm HDPE geomembrane is cautiously packaged and delivered to hold product exceptional and facilitate environment friendly dealing with throughout transport and installation.
8.1 Supplied in tightly wound rolls with custom-made widths, generally 5.8 meters, 7 meters, or eight meters, and variable lengths tailor-made to undertaking requirements. Larger roll sizes assist decrease the wide variety of seams in the discipline and shop set up time.
8.2 Each roll is securely wound on sturdy paper or PVC cores to preserve structural integrity and stop creasing or deformation in the course of transport and storage. The rolls are then wrapped in high-strength defensive movie or woven material for brought safety towards moisture, dust, and UV exposure.
8.3 Clear labeling is utilized to each and every roll, together with product specs (thickness, width, length), manufacturing date, and batch number, making sure handy identification, traceability, and nice manipulate compliance on site.

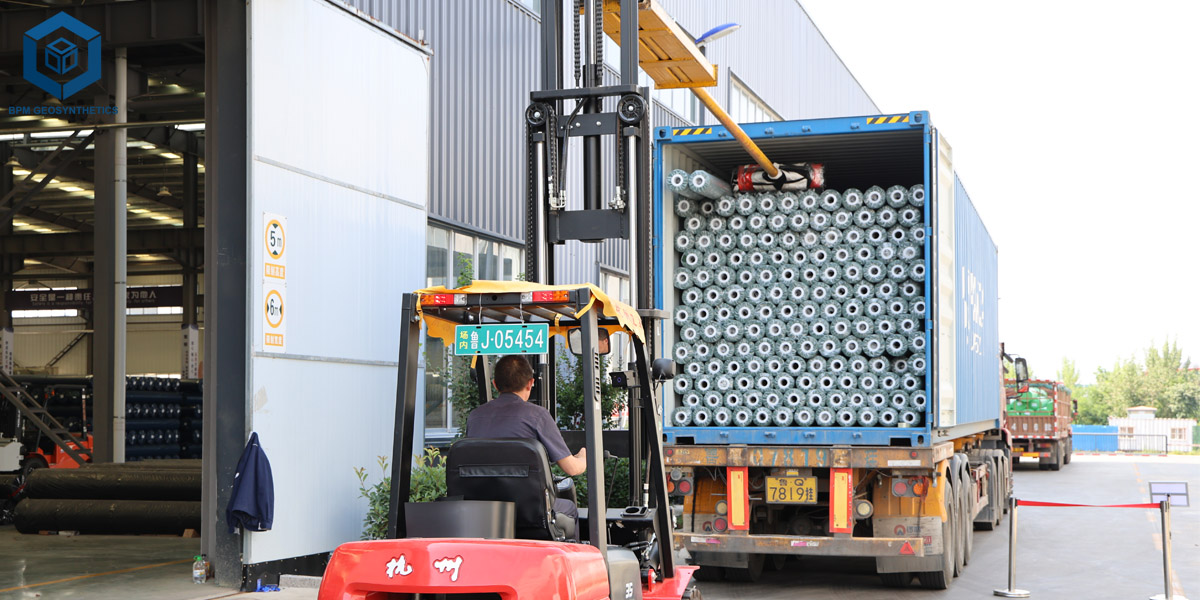

8.4 Global transport and logistics assist is available. Products are containerized and loaded with desirable securing measures for worldwide transport, making sure protected and damage-free shipping to ports or job websites round the world.
