The 7 Best HDPE Channel Lining Review

Controlling‍‌‍‍‌‍‌‍‍‌ water usage and improving irrigation techniques have become very important worldwide, especially in water-scarce areas with growing agricultural needs. Geomembrane liners made from High-Density Polyethylene (HDPE) are now recognized as an outstanding alternative for channel lining projects due to their enhanced properties that outperform traditional materials such as concrete. This in-depth review evaluates the top seven HDPE channel lining products in 2026, highlighting their features, pros and cons, and best uses.

With the introduction of HDPE Channel Lining systems, water conveyance networks have drastically evolved, enabling flexible, long-lasting, and economical leakage prevention measures. Numerous peer-reviewed studies have concluded that HDPE Channel Lining is superior to conventional concrete lining systems in most cases offering flexibility, conformity to irregular terrains, and relatively easier transportation and installation - a few aspects that are particularly beneficial in remote areas with logistical limitations . In the face of rapidly depleting world water resources, it is imperative to resort to efficient water channel lining methods for sustainable water management.

In order to provide this guide, we have analyzed data from lab testing, field reports of operations done during 2025-2026, comments of installers and engineers, and major indices such as tensile strength, puncture resistance, permeability, seam efficiency, and cost-effectiveness . Whether you are a farmer who wants to line irrigation canals, a civil engineer who is planning municipal water projects, or a contractor who specializes in containment solutions, this detailed guide will assist you in understanding the HDPE channel lining market and choosing the best product that meets your specific needs.

1. Understanding HDPE Channel Lining: Core Concepts and Benefits

1.1 What is HDPE Channel Lining?

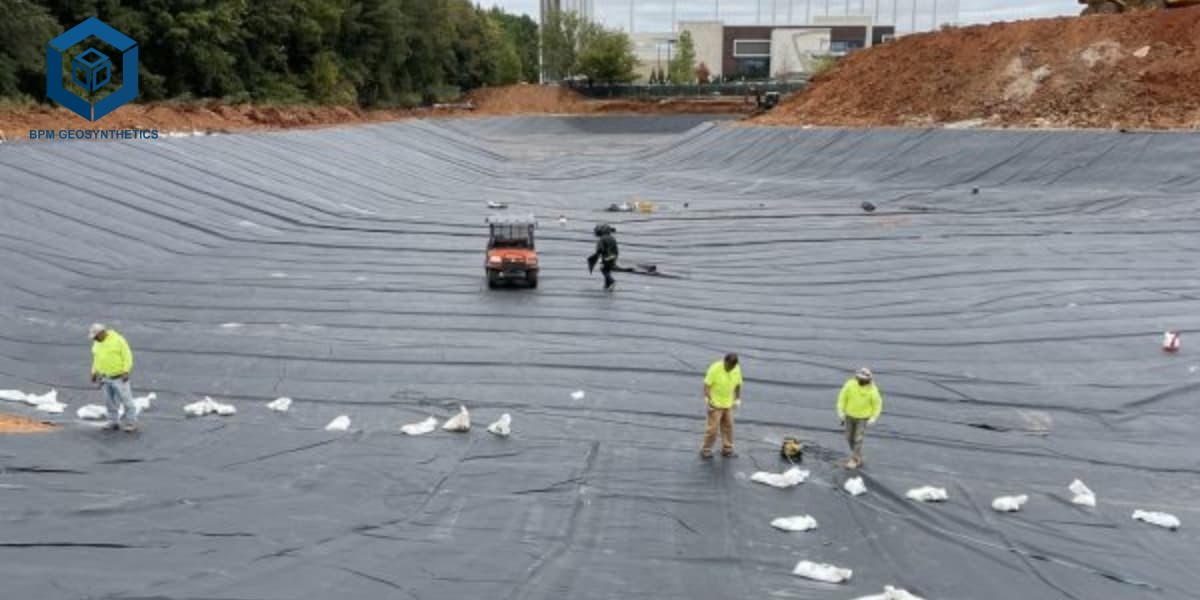

HDPE channel lining essentially refers to the application of high-density polyethylene geomembrane sheets to canal beds, irrigation channels, and other water dipping systems. These short sheets of flexible thermoplastic are produced from virgin HDPE resin combined with 2-3% carbon black and antioxidants, thus forming an impermeable layer that prevents both seepage and water loss . The carbon black content is responsible for providing adequate UV protection, thereby ensuring long-lasting exposure to sunlight.

The basic concept of HDPE lining is to create a seamless, waterproof membrane that separates the transported water from the ground. Such separation results in several benefits: minimizing water loss due to seepage, preserving water quality by preventing contamination from external sources, and extending the life of channel structures by reducing erosion and wear .

1.2 Key Performance Parameters

You need to familiarize yourself with the product details of hdpe geomembrane liner if you want to pick the right one for channel lining work. Below are some of the main factors that determine the functionality of the line:

Thickness may be the most basic aspect of specification, typically varying from 0.5 mm (20 mil) to 2.5 mm (100 mil) for channel works. Thickness has a direct relationship with puncture resistance, sturdiness, and longevity. For sheltered installations with well-conditioned subgrade, 20 mil (0.5 mm) liners can perform well, while channels undergoing greater mechanical stress might call for 40 mil (1.0 mm) or heavier materials .

Tensile strength tests how well a hdpe dam liners can resist stretching and breaking when exposed to stress. Standard figures for good quality HDPE liners range from 11-37 kN/m at the point of yield and 20-67 kN/m at break, according to thickness . More tensile strength means a liner can better handle installation damage, ground movement, and hydraulic ‍‌‍‍‌‍‌‍‍‌forces.

Puncture‍‌‍‍‌‍‌‍‍‌ and tear resistance are essential for channel applications, as the liner may come into contact with stones, roots, or other potentially sharp items. High-quality high density polyethylene liner usually exhibits puncture resistance within the range of 240-800 N and tear resistance of 93-311 N, which depend on thickness. Such characteristics are able to withstand the membrane from degradation even at very tough subgrade conditions.

Normally, the permeability coefficient of lining hdpe ranges between 1 × 10⁻¹¹ and 1 × 10⁻¹³ cm/s, thus making them nearly impermeable to water. The extremely low permeability is the main factor that explains why HDPE liners are quite efficient in preventing seepage loss.

Stress crack resistance is an important property that measures how long a material can withstand slow crack growth under constant elongation stress. Test results of premium HDPE geomembranes have shown stress crack resistance of more than 1,000 hours, which translates into a reliable product over the years.

1.3 Advantages Over Traditional Concrete Lining

Major shift from concrete to HDPE channel lining is on the basis of substantial evidence of better performance by HDPE products in numerous respects. Laboratory comparison of performances of HDPE geomembrane with concrete lining systems has pointed out some major benefits :

Being flexible and adaptable to change of shape (terrain) are features most valued by users of HDPE liners. On the other hand, concrete is inflexible and heavy and requires well-prepared subgrade at all places whereas it may crack as a result of settlement. The other side of rigid concrete is that it cannot adapt to changes in ground level by itself without being damaged so its support system has to be very stable. HDPE Channel Lining being highly flexible is a very good solution for seismic or expansive soil type of ground.

HDPE liners are very good in running remote projects because of their simplified transportation and installation that may need very few workers or sometimes none at all. The first option is to use concrete and that is quite unfavorable as it involves the use of heavy materials of the site and the new materials will have to be loaded onto the transport both coming and going, and the site is difficult bit by bit. HDPE rolls, on the other hand, will be shipped quickly and can be deployed with minimal equipment. Due to lighter nature of HDPE Channel Lining, there will be fewer logistical problems and this will result in reduced costs.

The lifetime of HDPE Channel Lining if properly secured would be much longer than that of a concrete structure. Good quality HDPE membranes are stabilized by carbon black which can provide service life from 40 to 80+ years depending on exposur ... Besides that, HDPE has been found to be very resistant to acids, alkalis, salts and many organic solvents that affected chemical characteristics of materials adversely.

HDPE Channel Lining offers less friction to the flow than concretes which have rough surfaces. This feature results in an increase of channel capacity and in some cases also allows for reduction in size of channels that carry given flow rate.

Cost-saving at the level of the whole period of usefulness is what comes out in the end. HDPE liners compared to materials and labor costs during installation and up to the minimum maintenance requirement only cannot be put on a par with but the longer service life does make them more attractive from a longer-term point of view.

2. The 7 Best HDPE Channel Lining Products of 2026

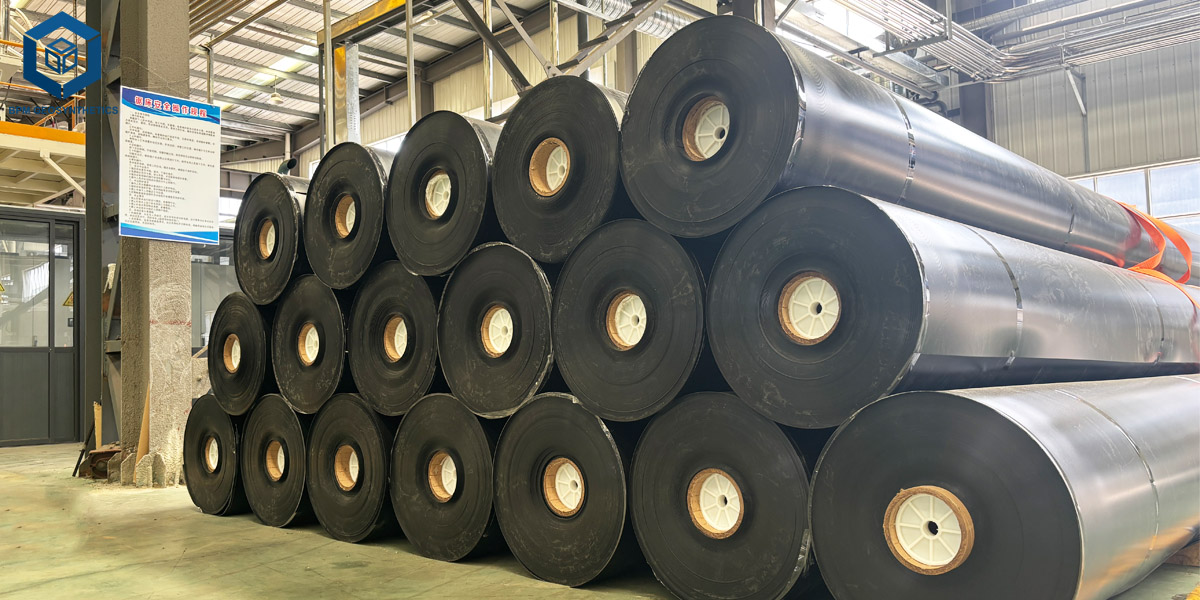

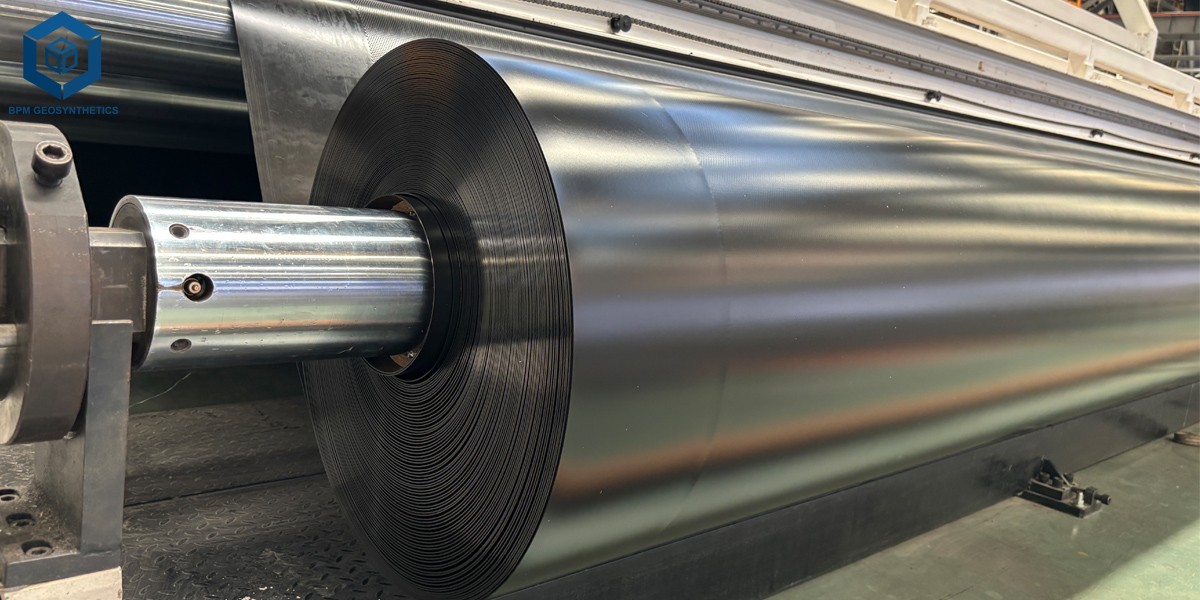

2.1 Manufacturer: The Best Project Material Co., Ltd.（BPM Geosynthetics）

Thickness Options: 0.5 mm (20 mil) to 3.0 mm (120 mil)

2.1.1 Key Specifications :

Tensile Strength: 20-28 kN/m (ASTM D6693)

Elongation at Break: ≥700%

Puncture Resistance: 300-450 N (ASTM D1004)

Tear Resistance: 100-180 N (ASTM D1004)

Permeability: ≤1 × 10⁻¹¹ cm/s (ASTM D5084)

Stress Crack Resistance: >1,000 hours (ASTM D1693)

Carbon Black Content: 2-3% with uniform dispersion

BPM Geomembrane's Smooth high density polyethylene liner is regarded as the best product available for channel lining owing to its excellent quality of manufacture and its performance that have been proven through reference sites. Made out of virgin high-density polyethylene resin with very limited variation in thickness (±5%), the high density polyethylene geomembrane offers very good weldability and resistance to chemicals over long period of time that makes it possible to use this type of lining in almost any environment of a channel ‍‌‍‍‌‍‌.

In 2025-2026 canal lining projects, BPM geomembrane high density polyethylene pond liner achieved remarkable performance metrics, including >98% seam efficiency and zero reported leaks in single-liner systems. Installers consistently praise the material's superior conformability on irregular subgrades, which translates to 20-35% savings in installation labor compared to thicker, less flexible alternatives .

The outstanding flexibility of BPM hdpe liner deserves particular mention for channel applications. Irrigation channels often follow natural terrain contours, requiring lining materials that can accommodate curves and grade changes without excessive folding or stress concentration. BPM Geosynthetics 's formulation achieves an optimal balance between flexibility and strength, allowing it to conform to channel geometry while maintaining structural integrity.

For channel lining projects where budget considerations are important but performance cannot be compromised, BPM represents the ideal compromise. The material delivers premium performance characteristics at a cost point that makes large-scale channel lining projects economically viable. With a price range of $0.60-$1.80 per square meter for 20 mil thickness, it offers exceptional value .

2.1.2 Pros:

- Outstanding flexibility and conformability for uneven channel surfaces

- Exceptional seam strength and weld quality ensuring leak-free installation

- Cost-effective solution for medium to large-scale channel projects

- Excellent UV resistance from uniform carbon black dispersion

- Proven track record in irrigation canal applications

2.2 Manufacturer: Taian Jingwei Geosynthetics

Thickness: 0.5 mm (20 mil)

2.2.1 Key Specifications :

Tensile Strength: 22-30 kN/m

Elongation at Break: ≥700%

Puncture Resistance: 320-500 N

Permeability: ≤1 × 10⁻¹¹ cm/s

Stress Crack Resistance: >1,200 hours

Taian Jingwei Geosynthetics has established itself as a premier manufacturer of geosynthetic materials, and their 20 mil HDPE Smooth hdpe geo membrane exemplifies the quality and consistency expected from a market leader. This product demonstrates exceptional mechanical properties that exceed standard requirements, making it the premium choice for channel lining applications where performance margins are critical.

The superior puncture resistance of Taian Jingwei Geosynthetics liners—ranging from 320-500 N—provides an extra margin of safety during installation and throughout the service life. This enhanced resistance to mechanical damage is particularly valuable in channel applications where subgrade conditions may include angular materials or where maintenance activities might subject the liner to point loads .

Stress crack resistance exceeding 1,200 hours represents another distinguishing characteristic of Taian Jingwei Geosynthetics geomembrane pond liner. This parameter, which measures the material's ability to resist cracking under sustained stress, directly correlates with long-term field performance. Channels experience continuous hydraulic pressure and may be subject to cyclic loading from water level fluctuations; exceptional stress crack resistance ensures the liner maintains integrity throughout its design life.

Weldability of Taian Jingwei Geosynthetics geomembrane sheet is consistently rated excellent by installation contractors. The material accepts hot wedge and extrusion welding with predictable behavior, achieving seam strengths that approach parent material properties. This reliable welding performance translates to faster installation and reduced risk of seam failures—a critical consideration for channel lining where leaks can undermine the entire project investment.

2.3 Manufacturer: Agru America

Thickness: 0.5 mm (20 mil)

2.3.1 Key Specifications :

Tensile Strength: 20-28 kN/m

Elongation at Break: ≥700%

Puncture Resistance: 280-450 N

Permeability: ≤1 × 10⁻¹¹ cm/s

Agru America brings decades of geosynthetic manufacturing expertise to their 20 mil HDPE liner, creating a product that excels in applications requiring high elongation and flexibility. While all quality HDPE Channel Lining meet minimum elongation requirements, Agru's formulation consistently achieves elongation values at the upper end of the specification range, providing enhanced ability to accommodate ground movement and settlement .

For channel lining applications in areas with expansive soils or seismic activity, this enhanced elongation capability proves invaluable. When the underlying subgrade shifts or settles, the liner must stretch to accommodate movement without tearing or puncturing. Agru's high-elongation characteristics provide this essential adaptability, maintaining barrier integrity despite challenging subsurface conditions.

The manufacturing quality of Agru hdpe geomembrane liner is widely recognized in the geosynthetics industry. As a vertically integrated manufacturer controlling the entire production process from resin selection to finished rolls, Agru maintains exceptional quality consistency. This reliability translates to predictable field performance and fewer installation complications .

Field feedback from irrigation channel projects highlights the material's excellent conformability to channel geometry. Installers report that Agru HDPE Channel Lining drape smoothly over channel side slopes and bottom contours, minimizing the folds and wrinkles that can complicate welding and create potential leak paths.

2.4 Manufacturer: Geosynthetics Africa

Thickness: 0.5 mm (500 micron)

Roll Size: 5.8m × 100m (580 m² per roll)

2.4.1 Key Features :

100% virgin-grade HDPE resin

UV stabilized for high-exposure environments

Compatible with hot wedge and extrusion welding

Engineered for African climate extremes

GEOLINE HD500 represents a specialized solution engineered specifically for the challenging environmental conditions prevalent across Africa and similar regions. This product addresses the unique demands of channel lining in environments characterized by high UV exposure, temperature fluctuations, and dry-wet soil cycles—conditions that challenge standard HDPE Channel Lining .

The wide-roll format of GEOLINE HD500—5.8 meters width by 100 meters length—provides significant advantages for large-scale channel lining projects. Each roll covers 580 square meters, reducing the number of field seams required and consequently decreasing installation time and welding costs. For extensive irrigation canal networks, this efficiency translates to substantial project savings .

UV stability receives particular attention in GEOLINE HD500 formulation. The product incorporates carefully controlled carbon black dispersion to ensure long-term resistance to solar degradation—a critical consideration for channels that remain uncovered throughout their service life. Field performance in African installations demonstrates that this liner maintains integrity despite continuous exposure to intense tropical and subtropical sunlight .

The product's design for compatibility with professional installation methods ensures that large projects can achieve the seam quality necessary for reliable long-term performance. GEOLINE HD500 accepts both hot wedge and extrusion welding techniques, allowing contractors to select the most appropriate method for project conditions .

2.5 Manufacturer: Solmax

Thickness: 0.5 mm (20 mil)

2.5.1 Key Specifications :

Tensile Strength: 19-26 kN/m

Elongation at Break: ≥650%

Puncture Resistance: 250-420 N

Permeability: ≤1 × 10⁻¹¹ cm/s

Price Range: $0.70-$1.70 per square meter

Solmax has positioned its 20 mil HDPE Channel Lining as the value leader in the channel lining market, offering reliable performance at an accessible price point. While mechanical properties are slightly reduced compared to premium alternatives, they remain fully compliant with industry standards and entirely adequate for most hdpe channel lining applications .

The cost advantage of Solmax liners—typically 15-25% below premium alternatives—makes them particularly attractive for large-scale channel lining projects where budget constraints are significant. For irrigation districts, government agencies, and agricultural operations managing extensive canal networks, this cost differential can enable project completion within available funding .

2.6 Manufacturer: GEOSINCERE Geosynthetics

Thickness Options: 0.75 mm to 2.5 mm (30-100 mil)

2.6.1 Key Specifications :

Tensile Strength: 11-37 kN/m at yield, 20-67 kN/m at break (varies by thickness)

Elongation at Break: 700% (≥12% at yield)

Tear Resistance: 93-311 N (ASTM D1004)

Puncture Resistance: 240-800 N (ASTM D4833)

Carbon Black Content: 2.0-3.0%

Certifications: CE, ISO, GM13, CRCC Railway Certification

GEOSINCERE offers a comprehensive range of hdpe geomembrane sheet thicknesses that make this product line particularly suitable for heavy-duty channel lining applications requiring enhanced mechanical properties. With thickness options from 0.75 mm (30 mil) through 2.5 mm (100 mil), GEOSINCERE provides solutions for channels subject to exceptional mechanical stress or requiring maximum service life .

The manufacturing quality of GEOSINCERE hdpe liner sheet reflects the company's substantial investment in production technology and quality control. As an ISO 9001:2000 certified manufacturer operating since 2002, GEOSINCERE  has developed expertise in both blowing and pressing production technologies—distinguishing them as the only company in their region utilizing both methods . This technical versatility allows optimization of material properties for specific applications.

For channel lining projects requiring maximum puncture resistance—such as those in rocky terrain or where maintenance equipment will operate directly on the liner—GEOSINCERE 's thicker options provide essential durability. The 2.0 mm (80 mil) and 2.5 mm (100 mil) thicknesses offer puncture resistance of 640 N and 800 N respectively, virtually eliminating the risk of mechanical damage during installation and operation .

Environmental stress crack resistance of GEOSINCERE hdpe membrane sheet meets industry standards, with testing according to ASTM D5397 ensuring long-term durability. Combined with comprehensive UV resistance testing demonstrating 50% OIT retention after 1,600 hours exposure, these liners provide confidence in extended service life for exposed channel applications

2.7 Manufacturer: ABG Geosynthetics

Material: High-quality virgin HDPE

Applications: Canal and river lining, pond and lagoon lining

2.7.1 Key Features :

Absolutely liquid and gas tight seal

Flexible and easy to seam (tape or weld)

Very high extensibility with good tensile strength

Good chemical and biological resistance

Rot proof and UV resistant

Drinking water safe, resistant to sea water

ABG Alphaline HD HDPE Channel Lining represents a specialized approach to channel lining, emphasizing the critical importance of seam integrity and material traceability. Each roll of Alphaline HD is manufactured in a quality-controlled environment with comprehensive quality assurance certification, providing documented proof of material properties and performance .

When selecting an HDPE Channel Lining for channel applications, consider the specific requirements of your project: subgrade conditions, exposure environment, budget constraints, and performance expectations. With proper material selection and installation practices, HDPE channel lining provides reliable, long-lasting water containment that justifies the investment through reduced water loss and extended infrastructure life.

The global importance of water conservation ensures that HDPE channel lining will remain an essential technology for sustainable water management. As manufacturing processes improve and new formulations emerge, the performance and value proposition of these products will only strengthen, making them increasingly attractive for water conveyance applications worldwide.

Conclusion

As the largest geomembrane liner companies in China, The Best Project Material Co., Ltd.（BPM Geosynthetics）has more than 160 professional staff and 36,000 square meters géomembrane manufacturing factory equipped with state of the art HDPE polyethylene pond liners production lines. BPM Geosynthetics geomembrane factory is certificated by ISO9001, ISO14001, and OHSAS18001. All BPM geomembranes have passed the certificates of the TUV, Soncap, SASO, BV and the test of SGS and Intertek etc. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to be your partner.
