Geomembrana HDPE
Geomembrana HDPE is a high-density polyethylene impermeable liner engineered for environmental containment, water retention, and industrial sealing applications, providing long-term chemical resistance, mechanical strength, and UV stability in civil and environmental projects.
Technical Parameters and Specifications
The performance of a Geomembrana HDPE is defined by internationally recognized standards such as ASTM and GRI-GM13. Below are typical parameters for smooth HDPE liners used in landfill, mining, and water containment systems.
| Property | 1.0 mm | 1.5 mm | 2.0 mm | Test Method |
|---|---|---|---|---|
| Thickness Tolerance | ±5% | ±5% | ±5% | ASTM D5199 |
| Density | ≥ 0.940 g/cm³ | ASTM D1505 | ||
| Tensile Strength (Yield) | ≥ 15 kN/m | ≥ 22 kN/m | ≥ 29 kN/m | ASTM D6693 |
| Elongation at Break | ≥ 700% | ASTM D6693 | ||
| Puncture Resistance | ≥ 320 N | ≥ 480 N | ≥ 640 N | ASTM D4833 |
| Carbon Black Content | 2.0–3.0% | ASTM D4218 | ||
| Oxidative Induction Time | ≥ 100 min (Std OIT) | ASTM D3895 | ||
Selection of thickness depends on subgrade conditions, load stress, and design life requirements.
Structure and Material Composition
A Geomembrana HDPE is composed of engineered polymer layers formulated for durability and containment safety.
Base Polymer: Virgin HDPE resin with controlled melt index
Carbon Black (2–3%): UV resistance and long-term stability
Antioxidant Package: Thermal aging protection
Processing Stabilizers: Improve extrusion consistency
Optional Surface: Smooth or textured (single/double side)
Textured variants improve interface friction for slope applications such as landfill sidewalls.

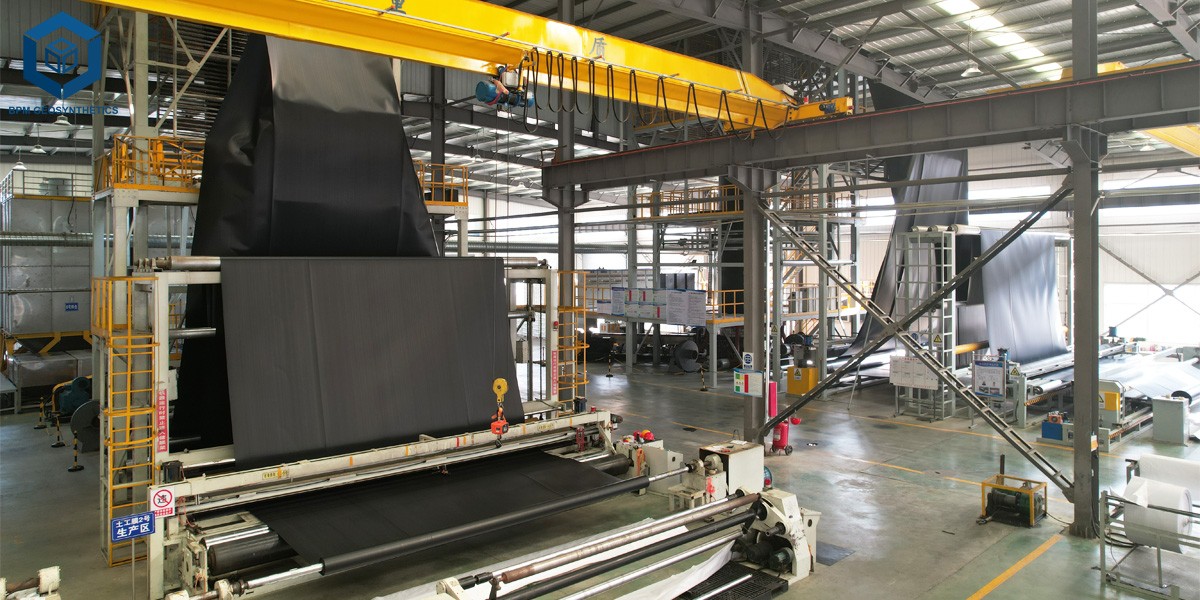

Manufacturing Process
1. Raw Material Verification
Incoming resin is tested for density, melt flow index, and contamination before production.
2. Extrusion Forming
Using flat-die or blown-film extrusion lines, resin is melted at controlled temperatures (200–240°C) and formed into sheets.
3. Thickness Control
Automated sensors continuously monitor thickness to meet specification tolerance.
4. Cooling and Rolling
Calibrated rollers ensure uniform surface finish before winding into labeled rolls.
5. Quality Testing
Each batch undergoes mechanical and physical testing prior to shipment.
Industry Comparison
| Material | Chemical Resistance | UV Stability | Design Life | Cost Level |
|---|---|---|---|---|
| Geomembrana HDPE | Excellent | High | 20–50 years | Moderate |
| PVC Liner | Good | Moderate | 10–20 years | Moderate |
| EPDM | Moderate | High | 15–25 years | Higher |
| Compacted Clay | Limited | Not Applicable | Variable | Low (material), High (installation) |
Compared to alternative liners, Geomembrana HDPE offers superior chemical resistance and structural integrity for industrial containment.
Application Scenarios

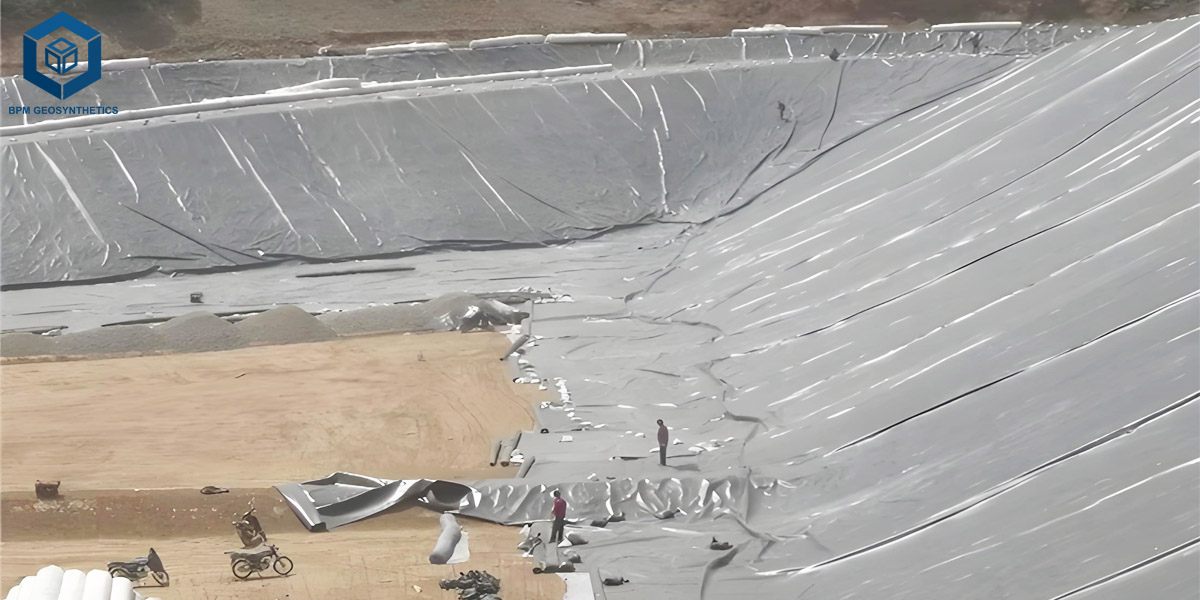

Landfill EPC Contractors: Base liner and capping systems
Mining Companies: Heap leach pads and tailings ponds
Water Infrastructure Developers: Reservoirs and canals
Industrial Facilities: Wastewater lagoons
Distributors & Importers: Bulk supply to regional contractors
Core Pain Points and Engineering Solutions

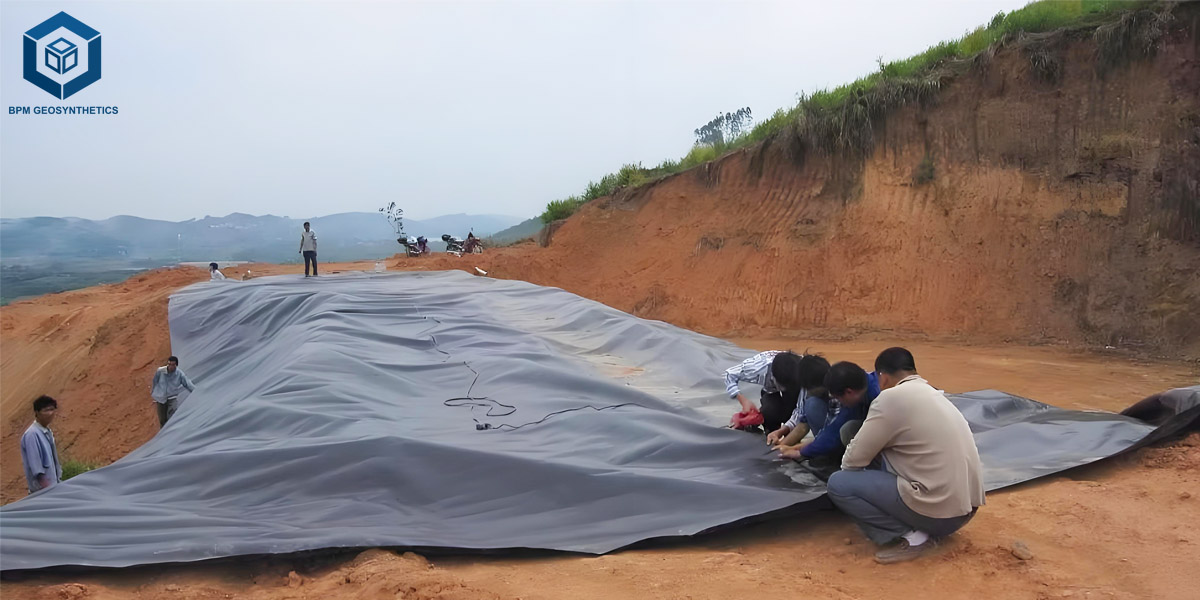

1. Seam Leakage Risk
Solution: Implement dual-track hot wedge welding and vacuum box testing.
2. UV Degradation in Exposed Installations
Solution: Verify carbon black dispersion and antioxidant package.
3. Subgrade Puncture Failure
Solution: Use geotextile cushioning and appropriate thickness selection.
4. Regulatory Non-Compliance
Solution: Align procurement with ASTM and GRI specifications.
Risk Warnings and Mitigation
Do not install on unprepared or sharp subgrade.
Avoid mixing rolls from unverified batches.
Ensure field welding personnel are certified.
Store rolls away from prolonged UV exposure before installation.
Procurement and Selection Guide
Define application (landfill, mining, water retention).
Determine required thickness based on stress analysis.
Specify smooth or textured surface.
Request full laboratory test reports per batch.
Confirm compliance with ASTM/GRI standards.
Verify manufacturer production capacity and QA system.
Review logistics packaging for international shipment.
Include field testing requirements in tender documents.
Engineering Case Example
Project: Copper heap leach pad – 85,000 m²
Material: 2.0 mm textured Geomembrana HDPE
System Structure: Compacted subgrade + nonwoven geotextile + HDPE liner + drainage layer
Testing: Factory ASTM verification and on-site air pressure seam testing
Result: Achieved full containment compliance with zero leakage during commissioning phase.
FAQ – Geomembrana HDPE
1. What thickness is recommended for landfill base?
Typically 1.5 mm to 2.0 mm depending on regulations.
2. Is virgin resin mandatory?
For environmental projects, yes.
3. What is the expected lifespan?
20–50 years depending on exposure conditions.
4. Can it resist acids?
Yes, HDPE shows strong chemical resistance.
5. Is textured liner necessary?
Required for slope stability applications.
6. How are seams tested?
Air pressure, vacuum box, and destructive peel tests.
7. Can Geomembrana HDPE be used in potable water?
Yes, if certified for drinking water standards.
8. What roll width is typical?
Usually 5–8 meters depending on equipment.
9. How should it be stored?
On flat ground, protected from excessive sunlight.
10. Is third-party inspection recommended?
Yes for government or EPC contracts.
Request Quotation or Technical Documentation
For detailed specifications, project evaluation, or bulk procurement of Geomembrana HDPE, submit your project drawings and containment requirements to receive technical data sheets, laboratory reports, and formal quotation.
Authoritative Statement (E-E-A-T)
This technical guide was prepared by engineering professionals with more than 10 years of experience in geomembrane manufacturing, environmental containment systems, and EPC coordination across landfill, mining, and hydraulic infrastructure projects. All technical data aligns with recognized international testing standards to support procurement and engineering decision-making.
