20 Mil HDPE Liner
20 mil HDPE liner is a sturdy, durable, and versatile solution largely used in a range of containment applications. This lining has a thickness of 20 mils (approximately 0.5 millimeters) and incredible sturdiness and impermeability, making it an fine want for initiatives such as landfill liners, ponds, and reservoirs. Its elasticity to environmental pressure ensures long-lasting usual overall performance underneath harsh conditions.
-High durability:Resistant to puncture, tear, and UV degradation, ensuring a long lifespan.
-Excellent chemical resistance:Compatible with extra than one chemicals, making it suitable for industrial applications.
-Economically efficient:Provide reliable choices barring compromising extremely good and reducing long-term protection costs.
-Easy to install:Lightweight and flexible, handy to characteristic and set up quickly.
20 mil HDPE liner is a fantastically long lasting and versatile answer designed for a variety of containment applications. The lining has a thickness of 20 mils, about 0.5 millimeters, and has wonderful energy and impermeability, making it best for use in environments that require dependable fluid sealing. Its sturdy shape has incredible puncture resistance, tear resistance, and UV degradation resistance, making sure long-lasting overall performance even below harsh conditions. 20 mil HDPE liner is mainly high quality in functions such as landfill lining, reservoirs, and agricultural ponds, stopping leachate and different pollution from infiltrating the surrounding soil and water sources. In addition, its compatibility with a range of chemical compounds makes it appropriate for industrial use and reassuring in preserving environmental safety. The lining is light-weight and flexible, convenient to manage and install, significantly reducing labor fees and time. Overall, the 20 mil HDPE liner is a dependable desire for initiatives centered on environmental safety and aid management, combining durability, ease of use, and cost-effectiveness.
Parameter
ltem | Detailed item | Unit | Standard | Test Frequency | GS075 | GS010 | GS015 | GS020 | GS030 |
Mechanical Properties | Thickness | mm | D5199 | per roll | 0.75 | 1.00 | 1.50 | 2.00 | 3.00 |
Density | D1505/D792 | 90.000kg | 0.94g/cc | ||||||
Tensile Properties | |||||||||
Yield Strength | KN/m | D6693 Type Iv | 9.000 kg | 11 | 15 | 22 | 29 | 44 | |
Break Strength | KN/m | 20 | 27 | 40 | 5 3 | 80 | |||
Yield Elongation | % | 12 | 12 | 12 | 12 | 12 | |||
Break Elongation | % | 700 | 700 | 700 | 700 | 700 | |||
Tear Resistance | N | D1004 | 20.000kg | 93 | 125 | 187 | 249 | 374 | |
Puncture Resistance | N | D4883 | 20.000kg | 240 | 320 | 480 | 640 | 960 | |
Stress Crack Resistance | Hr. | D5397 | per GRl GM-10 | 300 hr. | |||||
Carbon black content | % | D4218 | 9.000kg | 2.0-3.0% | |||||
Carbon black dispersion | D5596 | 20.000kg | For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 | ||||||
Reference Properties | Oxidative Induction Time | ||||||||
Standard OlT | min | D3895 | 90.000kg | 100 min | |||||
High pressure OlT
| D5885 | 90.000kg | 400 min | ||||||
Oven Aging at 85°C retained after 90 days
| % | D5721 | per each formulation | 55% | |||||
Standard OlT | D3895 | 80% | |||||||
High pressure OlT | D5885 | 80% | |||||||
UV Resistance | |||||||||
High Pressure OlT_% retained after 1600 hrs | % | D5885 | per each formulation | 50% | |||||
Roll Size | Roll widthe | m | 7 | 7 | 7 | 7 | 7 | ||
Roll Length | m | 280 | 210 | 140 | 105 | 70 | |||
Size stability | % | 2% | |||||||
20 Mil HDPE Liner Features
-High durability
The format of the 20 mil HDPE liner can stand up to punctures, tears, and environmental pressures, making sure its integrity over time.
-Excellent chemical resistance
This lining is well matched with quite a number chemicals, making it appropriate for industrial functions that often come into contact with disturbing substances.
-UV stability
The formulation of this lining can face up to the degradation of ultraviolet radiation, permitting it to function correctly in outside environments besides sizable put on and tear.
-Lightweight and flexible
Its light-weight traits facilitate dealing with and installation, lowering labor fees and time for the duration of the setup process.
-High cost-effectiveness
20 mil HDPE liner affords dependable options at aggressive prices, minimizing long-term protection and alternative costs.
-Multi practical application
This 20 mil HDPE liner can be used for a variety of applications, consisting of landfill lining, reservoirs, agricultural ponds, and sealing of industrial waste, making it a tremendously adaptable preference for one-of-a-kind projects.
-Environmental Protection
By stopping fluid migration, 20 mil HDPE liner assist defend soil and groundwater from air pollution and promote sustainable practices in a number industries.
Applications of 20 Mil HDPE Liner

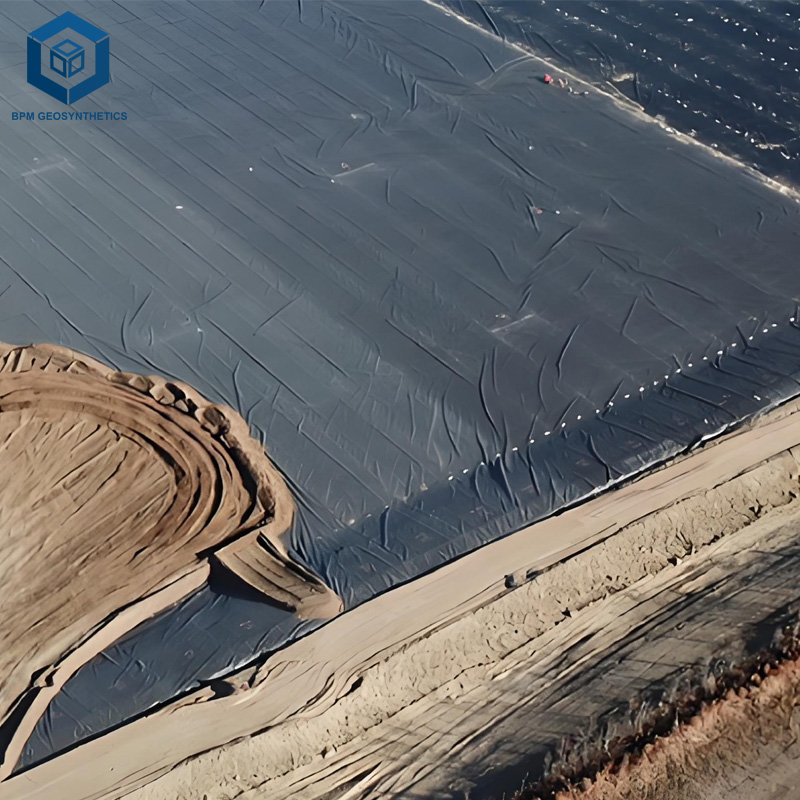

-Landfill liners
20 mil HDPE liner is often used as a barrier for landfills to stop leachate from contaminating the surrounding soil and groundwater. Its sturdiness ensures long-term manage over hazardous substances.

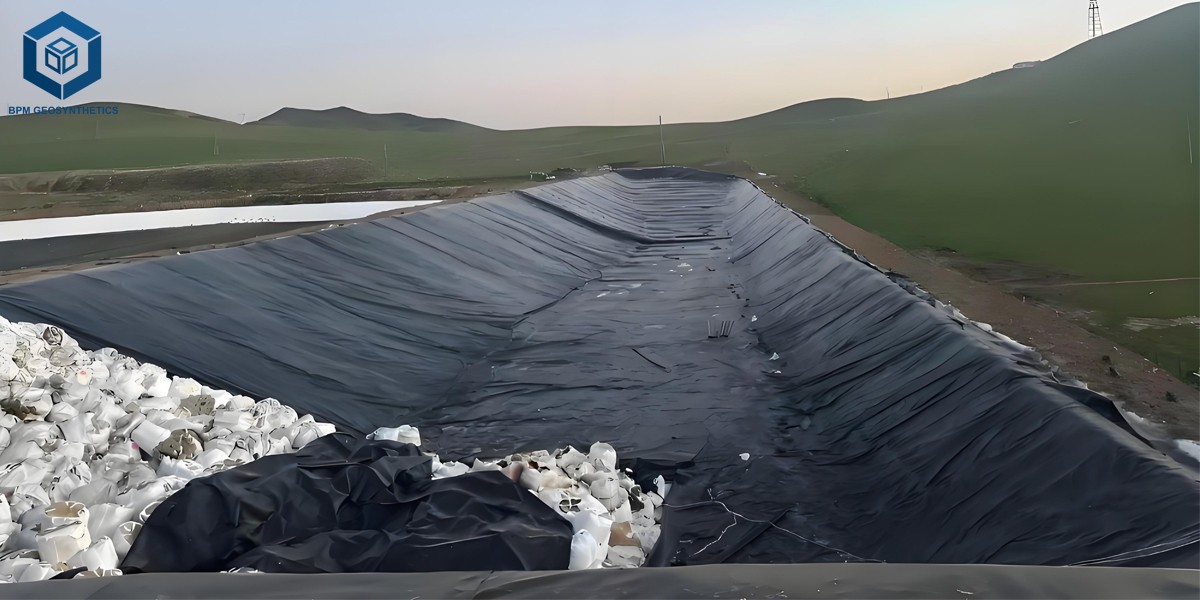

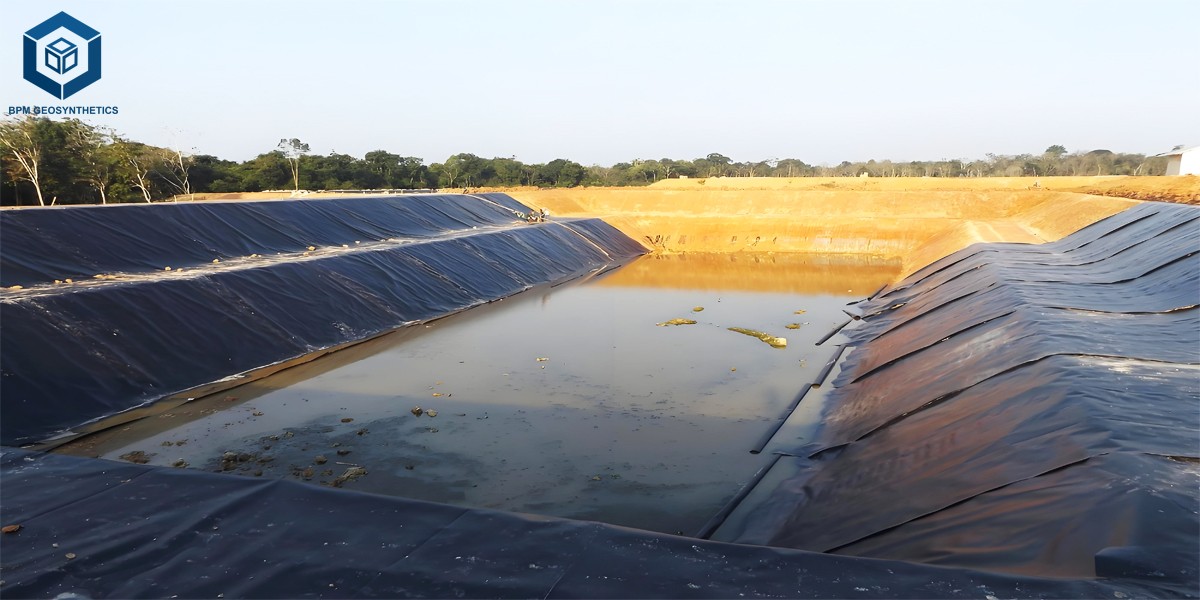

-Reservoir
This 20 mil HDPE liner is fantastically appropriate for water storage applications, supplying a dependable answer to reduce leakage and evaporation in reservoirs and ponds, thereby saving precious water resources.

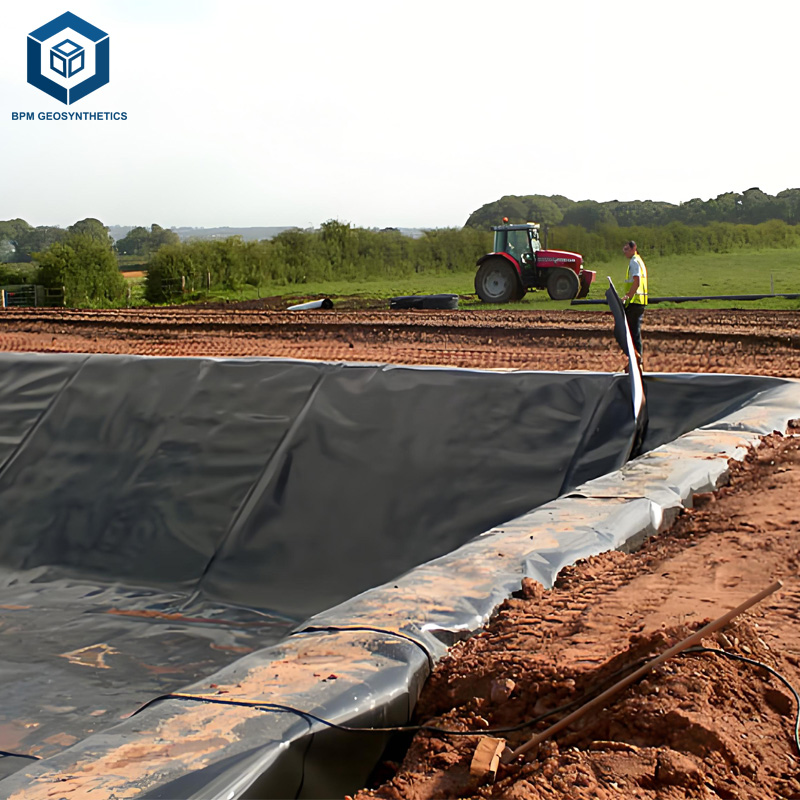

-Agricultural pond
In agriculture, 20 mil HDPE liners are used to create ponds for irrigation and farm animals consuming water, making sure environment friendly water aid administration whilst stopping runoff pollution.
-Mining operations
The mining web page makes use of 20 mil HDPE liner to control tailings and hazardous substances, defending the surroundings from viable leaks and spills.
-Industrial waste control
This lining is used in industrial environments to include waste and by-products, supplying a protected and fine barrier to forestall chemical publicity and environmental pollution.
-Aquaculture
This pad is additionally appropriate for aquaculture applications, assisting to preserve water fine and forestall leaks all through fish farming operations.

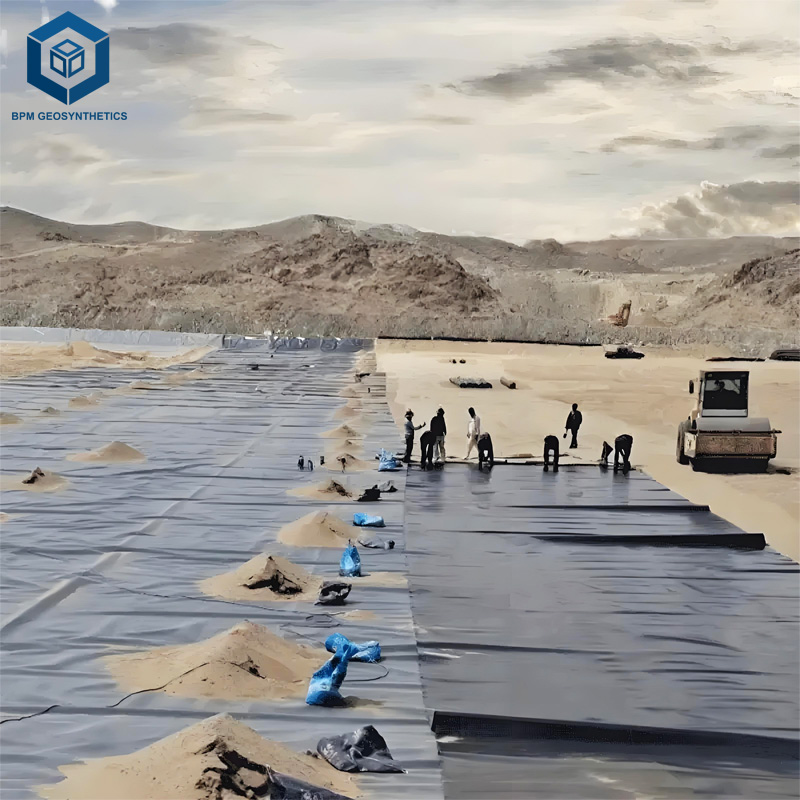

-Construction site
During construction, 20 mil HDPE liner can be used for transient fluid containment and as an tremendous answer for managing rainwater runoff, making sure compliance with environmental regulations.
Company Profile
The Best Project Material Co., Ltd. (BPM GEOSYNTHETICS) is a leading manufacturer and exporter of high-quality geosynthetic products, including geomembranes, geotextiles, geogrids, geocells, and geosynthetic clay liners (GCL). Our products, certified by EU CE and GLP, have passed ISO 9001, ISO 14001, and OHSAS 18001 standards, and are recognized for their quality, performance, and durability.

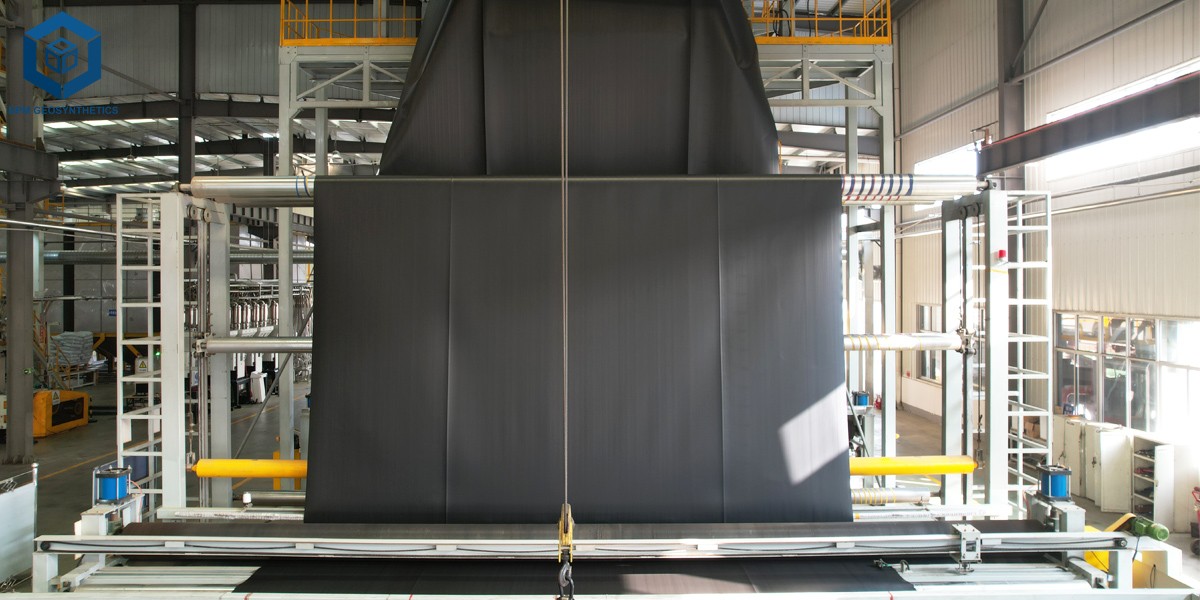

BPM GEOSYNTHETICS has been committed to providing one-stop services for global customers in the research and development, production, sales, and export of geosynthetic materials since its establishment in 2007. The company has 120 senior technical talents specializing in geotechnical materials. The manufacturing factory covers an area of over 36000 square meters and is equipped with industry-leading automated production equipment and professional testing instruments. Product innovation, quality assurance, and customer satisfaction have always been BPM commitment to partners.
