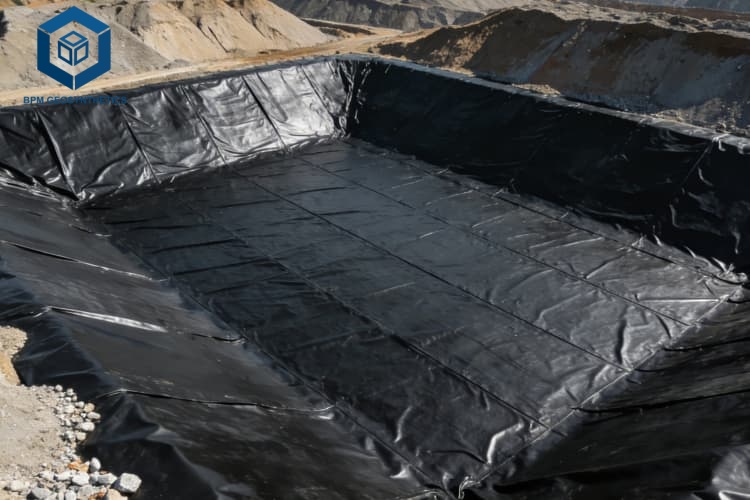

HDPE Liner for Lithium Brine Pond: Engineering Guide
What is HDPE Liner for Lithium Brine Pond?
HDPE liner for lithium brine pond refers to high-density polyethylene geomembrane used to contain lithium-rich brines in evaporation ponds during the extraction process in salars (salt flats) such as the Lithium Triangle (Chile, Argentina, Bolivia). For mining engineers, EPC contractors, and procurement managers, understanding HDPE liner for lithium brine pond is critical because lithium brines are chemically aggressive — high chloride (Cl⁻ up to 200 g/L), sulfate (SO₄²⁻), magnesium, potassium, and often low pH (4–6). HDPE offers excellent resistance to chloride and sulfate brines, with design life of 20–50 years in solar evaporation ponds. Typical thickness ranges from 1.0 mm for low-head ponds to 2.0 mm for high-head or high-risk areas. This guide provides engineering data on HDPE liner for lithium brine pond: brine chemistry compatibility, thickness selection based on pond depth, UV resistance (high-altitude solar radiation), installation requirements (large evaporation ponds, 10–100+ hectares), and procurement specifications for lithium extraction projects in South America, Australia, and China.
Technical Specifications of HDPE Liner for Lithium Brine Pond
The table below defines critical parameters for HDPE liner for lithium brine pond per GRI GM13 and mining industry standards.
| Parameter | Lithium Brine Specification | Standard (Non-Mining) | Engineering Importance | |
|---|---|---|---|---|
| Thickness | 1.0 – 2.0 mm (1.5 mm typical) | 1.0 – 1.5 mm | Lithium evaporation ponds have large areas (10–100+ ha) and low hydraulic head (< 2 m). 1.0–1.5 mm typical; 2.0 mm for high-risk zones.}, | |
| Brine Chemistry Resistance | Excellent for Cl⁻ (chloride), SO₄²⁻ (sulfate), Mg²⁺, K⁺ | General chemical resistance | HDPE unaffected by high-salinity brines. Critical for HDPE liner for lithium brine pond.}, | |
| UV Resistance (Carbon Black) | 2.0 – 3.0% (high UV exposure at high altitude) | 2.0 – 3.0% | Lithium salars (Atacama, Salar de Hombre Muerto) have extreme UV (> 4,000 hours/year). Carbon black essential.}, | |
| Temperature Range | -20°C to +50°C (daily cycles, high solar gain) | -40°C to +60°C了一道High-altitude deserts have large temperature swings. HDPE remains flexible.}, | ||
| PENT Stress Crack Resistance (ASTM F1473) | ≥ 500 hours (≥ 800 h recommended) | ≥ 500 hours | Long-term exposure to brine under thermal stress requires high PENT.}, | |
| Standard OIT (ASTM D3895) | ≥ 100 minutes (≥ 120 min for high UV) | ≥ 100 minutes | High UV exposure accelerates antioxidant depletion — higher OIT extends life.}, | |
| High Pressure OIT (ASTM D5885) | ≥ 400 minutes (≥ 500 min recommended) | ≥ 400 minutes | More sensitive to antioxidant depletion — critical for long-term service.}, | |
| Puncture Resistance (ASTM D4833) | 1.5 mm: ~320–380 N; 2.0 mm: ~450–520 N | 1.5 mm: ~320 N | Subgrade may have sharp evaporite crystals (halite, gypsum) — requires adequate thickness and geotextile cushion.}, |
Key takeaway: HDPE liner for lithium brine pond requires thickness 1.0–2.0 mm (1.5 mm typical), high UV resistance (carbon black 2–3%), and chemical compatibility with chloride/sulfate brines. High-altitude UV exposure demands higher OIT and PENT.
Material Structure and Composition: How HDPE Resists Lithium Brine
Understanding polymer chemistry helps in selecting HDPE liner for lithium brine pond.
Engineering insight: HDPE liner for lithium brine pond does not chemically react with brine salts. The main degradation risk is UV from high-altitude solar radiation, not brine chemistry. Carbon black (2–3%) and high OIT are critical.
Manufacturing Process: How Quality Affects HDPE Liner for Lithium Brine Pond
Factory quality directly influences performance in lithium evaporation ponds.
Resin compounding: Virgin PE100 resin + carbon black (2–3%) + antioxidant package. Premium manufacturers use higher OIT (≥ 120 min) for high-UV mining applications.
Extrusion: Flat die extrusion (200–220°C). Thickness tolerance ±5% for mining-grade geomembrane.
Calendering / polishing: Smooth surface preferred for evaporation ponds (textured not required).
Cooling: Controlled cooling to prevent residual stress that could accelerate stress cracking.
Quality inspection: PENT (≥ 500 h), OIT (≥ 100 min), puncture (ASTM D4833), UV resistance (carbon black dispersion).
Packaging: UV-protective wrapping for shipping to remote salar locations.
Performance Comparison: HDPE vs. Alternative Liners for Lithium Brine Ponds
Comparing HDPE liner for lithium brine pond with alternative materials.
| Component | Material | Function in Brine Environment |
|---|---|---|
| Base Resin (PE100/PE4710) | Bimodal HDPE (hexene or octene co-monomer) | High molecular weight fraction provides stress crack resistance. Brine salts (NaCl, KCl, MgCl₂) do not degrade HDPE.}, |
| Carbon Black | 2.0–3.0% furnace black | UV protection for exposed geomembrane — critical in high-altitude lithium salars (Atacama, 4,000 m elevation).}, |
| Antioxidant Package | Primary (hindered phenol) + secondary (phosphite) | Prevents thermal/oxidative degradation during service (15–25+ years). Higher OIT required for high UV exposure.}, |
| Liner Material | Brine Resistance (Cl⁻, SO₄²⁻) | UV Resistance | Cost (€/m² installed) | Installation Complexity | Typical Application |
|---|---|---|---|---|---|
| HDPE (1.5 mm) | Excellent | Excellent (2–3% carbon black) | 10 – 15 | High (welding required) | Lithium evaporation ponds — standard |
| LLDPE (1.5 mm) | Excellent | Excellent | 12 – 18 | High | Flexible applications, lower stress crack resistance |
| PVC (1.5 mm) | Good (but plasticizers may leach) | Fair (UV stabilizers deplete) | 8 – 14 | Medium | Not recommended for high-UV, long-term brine ponds |
| EPDM (rubber) | Good | Fair | 20 – 35 | Medium | Not cost-effective for large ponds |
Conclusion: HDPE liner for lithium brine pond is the preferred material due to excellent brine resistance, UV durability, and cost-effectiveness for large evaporation ponds.
Industrial Applications of HDPE Liner for Lithium Brine Pond
Specific applications within lithium extraction operations.
Primary evaporation ponds (lithium chloride concentration): 1.0–1.5 mm HDPE. Large areas (50–200 ha). Low head (< 1 m). UV exposure extreme.
Secondary evaporation ponds (potassium/magnesium removal): 1.0 mm HDPE. Lower salinity, but still aggressive.
Lithium carbonate precipitation ponds: 1.5 mm HDPE. pH may be higher (8–10) from sodium carbonate addition. HDPE resistant.
Brine storage ponds (intermediate storage): 1.5 mm HDPE. Higher head (2–5 m).
Freshwater ponds (for processing): 1.0 mm HDPE. Lower specification acceptable.
Common Industry Problems with HDPE Liner for Lithium Brine Pond
Real-world failures from inadequate specification.
Problem 1: UV degradation (carbon black < 2%) in high-altitude salar
Root cause: Geomembrane with 1.5% carbon black used in Atacama Desert (UV > 4,000 hours/year). Surface cracking within 3 years. Solution: Specify carbon black content 2.0–3.0% per ASTM D1603. This is critical for HDPE liner for lithium brine pond in high-UV environments.
Problem 2: Puncture from sharp evaporite crystals (halite, gypsum)
Root cause: Subgrade contains sharp salt crystals. 1.0 mm HDPE punctured. Solution: Use 1.5 mm HDPE minimum. Install nonwoven geotextile cushion (≥ 300 g/m²).
Problem 3: Low OIT (< 80 minutes) causing embrittlement after 5 years
Root cause: Antioxidant package insufficient for high UV/high temperature. Solution: Specify OIT ≥ 120 minutes and HP-OIT ≥ 500 minutes.
Problem 4: Seam failure from poor welding in remote location
Root cause: Contractor lacked skilled welders. Seam testing inadequate. Solution: Require certified welders. 100% non-destructive testing (air channel, vacuum box). Destructive testing every 500 m.
Risk Factors and Prevention Strategies for HDPE Liner for Lithium Brine Pond
Risk: Specifying 1.0 mm liner for high UV/high puncture risk area: Premature failure. Mitigation: Use 1.5 mm minimum; 2.0 mm for high-risk zones.
Risk: Insufficient carbon black (< 2%) for high-altitude UV: Surface cracking, embrittlement. Mitigation: Require ASTM D1603 test report (2.0–3.0%).
Risk: Low OIT (< 100 minutes) for long-term service: Antioxidant depletion. Mitigation: Specify OIT ≥ 120 minutes, HP-OIT ≥ 500 minutes for lithium brine ponds.
Risk: No geotextile cushion over sharp evaporite subgrade: Puncture from salt crystals. Mitigation: Install nonwoven geotextile ≥ 300 g/m² (500 g/m² for sharp subgrade).
Procurement Guide: How to Specify HDPE Liner for Lithium Brine Pond
Follow this 8-step checklist for B2B purchasing decisions.
Determine pond type and hydraulic head: Evaporation ponds (low head, < 1 m) → 1.0–1.5 mm. Storage ponds (head 2–5 m) → 1.5–2.0 mm.
Assess UV exposure (elevation, latitude): High-altitude salars (Atacama, 4,000 m) → require carbon black 2.0–3.0% and OIT ≥ 120 min.
Specify resin type: PE100/PE4710 bimodal with hexene/octene co-monomer. PENT ≥ 500 hours (≥ 800 h recommended).
Require OIT and HP-OIT: Standard OIT ≥ 100 minutes (≥ 120 min for high UV). HP-OIT ≥ 400 minutes (≥ 500 min recommended).
Specify carbon black content (ASTM D1603): 2.0–3.0%. Dispersion Category 1 or 2 (ASTM D5596).
Specify thickness: 1.5 mm typical. 2.0 mm for high puncture risk or high head.
Require geotextile cushion: Nonwoven ≥ 300 g/m² (500 g/m² for sharp evaporite crystals).
Require GRI GM13 compliance: All test reports (tensile, tear, puncture, PENT, OIT, carbon black).
Engineering Case Study: HDPE Liner for Lithium Brine Pond in Atacama, Chile
Project type: Lithium evaporation ponds (primary concentration).
Location: Atacama Desert, Chile (4,000 m elevation, extreme UV > 4,000 hours/year).
Project size: 200 hectares (2,000,000 m²).
Product specification: 1.5 mm HDPE, PE100 bimodal resin, PENT 850 hours, OIT 125 minutes, HP-OIT 520 minutes, carbon black 2.5%, Category 1 dispersion. Geotextile cushion: 300 g/m² nonwoven.
Results after 5 years: Zero leaks. No UV degradation (surface intact). No puncture from evaporite crystals. OIT retention 90%. This case demonstrates that proper HDPE liner for lithium brine pond specification (high OIT, high carbon black, adequate thickness) withstands aggressive high-altitude conditions.
Frequently Asked Questions: HDPE Liner for Lithium Brine Pond
Q1: Is HDPE resistant to lithium brine?
Yes. HDPE has excellent resistance to lithium brines containing high concentrations of chloride, sulfate, magnesium, and potassium. HDPE liner for lithium brine pond does not chemically react with brine salts.
Q2: What thickness HDPE is required for lithium evaporation ponds?
1.0–1.5 mm typical for low-head evaporation ponds (< 1 m). 1.5 mm is standard. 2.0 mm for high puncture risk or storage ponds with > 2 m head.
Q3: Why is carbon black content critical for lithium brine ponds?
Lithium salars are at high altitude (3,000–4,000 m) with extreme UV radiation (> 4,000 hours/year). Carbon black (2–3%) provides UV protection. Insufficient carbon black causes surface cracking and embrittlement.
Q4: What OIT is required for high-altitude lithium ponds?
Standard OIT ≥ 120 minutes (ASTM D3895). High Pressure OIT ≥ 500 minutes (ASTM D5885). High UV exposure accelerates antioxidant depletion.
Q5: Can LLDPE be used for lithium brine ponds?
Yes, LLDPE has similar chemical resistance. However, HDPE has higher stress crack resistance (PENT) and is preferred for long-term service under thermal stress.
Q6: Is a geotextile cushion required under the HDPE liner?
Yes, if subgrade contains sharp evaporite crystals (halite, gypsum). Use nonwoven geotextile ≥ 300 g/m² (500 g/m² for very sharp crystals).
Q7: How long does HDPE liner last in lithium brine ponds?
With proper specification (1.5 mm, PE100 resin, PENT ≥ 500 h, OIT ≥ 100 min), design life is 20–50 years. Field performance in Atacama confirms 15+ years with no degradation.
Q8: What is the maximum temperature for HDPE in lithium ponds?
HDPE can withstand 50–60°C continuous service. Shallow brine ponds in high-altitude deserts can reach 40–50°C surface temperature.
Q9: Can PVC be used for lithium brine ponds?
Not recommended. PVC plasticizers can leach in brine, and UV resistance is poor. HDPE is the preferred material for HDPE liner for lithium brine pond.
Q10: How are seams tested for lithium brine pond liners?
Non-destructive: air channel test for dual-track welds (100–200 kPa, 2–5 min hold). Vacuum box for extrusion welds. Destructive: peel and shear per ASTM D6392 (1 sample per 500 m).
Request Technical Support or Quotation for HDPE Liner for Lithium Brine Pond
For project-specific HDPE liner for lithium brine pond specifications, UV exposure assessment, or bulk procurement, our technical team is available.
Request a quotation – Provide pond area, hydraulic head, elevation, and UV exposure data.
Request engineering samples – Receive HDPE samples with PENT, OIT, and carbon black test reports.
Download technical specifications – GRI GM13 compliance guide, UV exposure assessment protocol, and installation QA/QC checklist for lithium ponds.
Contact technical support – Thickness selection, resin verification, and warranty validation for lithium extraction projects.
About the Author
This guide on HDPE liner for lithium brine pond was written by Dipl.-Ing. Hendrik Voss, a civil engineer with 19 years of experience in geosynthetics for mining and brine containment. He has designed over 30 lithium evaporation pond liner systems across the Lithium Triangle (Chile, Argentina, Bolivia) and Australia, specializing in high-UV material selection, brine compatibility, and installation QA/QC for lithium extraction projects. His work is referenced in GRI and ASTM D35 committee discussions on geomembrane standards for brine containment applications.
