Geogrid Material
Geogrid material is a specialised reinforcement answer used in a number civil engineering purposes to enhance soil balance and bearing capacity. This grid like shape is made of high-strength polymer and goals to efficiently distribute loads, making it an best preference for avenue construction, protecting walls, and slope stability. Its special overall performance makes it an vital thing of current infrastructure projects, making sure sturdiness and longevity.
-Effective load distribution: Distribute the load to a large area, limit the stress on the underlying soil, and forestall deformation.
-High Durability : Resistant to UV radiation and environmental degradation, supplying long-lasting overall performance beneath harsh conditions.
-Enhance drainage: enhance water flow, minimize erosion risk, and hold soil integrity.
-Lightweight and convenient to install: simplifies coping with and installation, speeds up assignment completion, and reduces labor costs.
Geogrid material is a specialised reinforcement answer aimed at enhancing the balance and bearing ability of soil in a number of civil engineering applications. Geogrid material is made of high-strength polymer and has a special grid structure, which can efficaciously distribute masses over a wider place and decrease stress on the underlying soil. This load distribution is quintessential for stopping deformation and extending the lifespan of infrastructure such as roads, protecting walls, and slopes. The long lasting factors of geogrids make certain resistance to ultraviolet radiation, chemical exposure, and environmental degradation, keeping dependable overall performance even beneath harsh conditions. In addition, modern layout promotes awesome drainage, reduces erosion risks, and keeps soil integrity. The light-weight and convenient to deploy geogrid cloth simplifies the building procedure and reduces labor costs. Their versatility makes them appropriate for a extensive vary of applications, inclusive of street construction, basis support, parking lots, landfill stabilization, and railway embankments. Ultimately, geogrid substances are an economically environment friendly answer that contributes to the improvement of secure and sustainable infrastructure.
Parameter
Properties | Unit | Product Specification | |||||||
BGUG25 | BGUG35 | BGUG50 | BGUG80 | BGUG110 | BGUG120 | BGUG150 | |||
Width | m | 1.0-2.0m | |||||||
Length/Roll | m | 50 | |||||||
Tensile Strength | HDPE | kN/m2 | ≥25 | ≥35 | ≥50 | ≥80 | ≥110 | ≥120 | ≥150 |
PP | kN/m2 | ≥25 | ≥35 | ≥50 | ≥80 | ≥110 | ≥120 | ≥150 | |
Elongation | HDPE | % | 11-16 | ||||||
PP | % | 10 | |||||||
Strength At 2%Elongation | HDPE | kN/m | ≥6 | ≥9 | ≥10 | ≥23 | ≥30 | ≥35 | ≥46 |
PP | kN/m | ≥7 | ≥10 | ≥12 | ≥26 | ≥32 | ≥38 | ≥48 | |
Strength At 5% Elongation | HDPE | kN/m | ≥12 | ≥18 | ≥25 | ≥44 | ≥60 | ≥70 | ≥87 |
PP | kN/m | ≥14 | ≥20 | ≥28 | ≥48 | ≥64 | ≥75 | ≥93 | |
Geogrid Material Features
-High tensile energy : Geogrid material substances are cautiously designed to stand up to large loads, making them an best desire for reinforcing soil and enhancing load-bearing potential in a number of applications.
-Durable Ingredients: The geogrid material is made of high-strength polymer, which can withstand ultraviolet radiation, chemical exposure, and environmental degradation, making sure long-term overall performance below harsh conditions.
-Innovative grid shape : The special grid diagram permits for environment friendly load distribution over a large area, minimizing stress on the underlying soil and stopping deformation.
-Enhanced drainage overall performance : Geogrid materials promote superb drainage via permitting water to glide thru the grid openings, decreasing erosion dangers and keeping soil stability.
-Lightweight design: The light-weight traits of geogrid materials simplify managing and installation, making them simpler to transport and set up on site, thereby decreasing labor charges and venture schedules.
-Multi useful software : Suitable for more than a few civil engineering projects, consisting of roads, protecting walls, embankments, and slope stability, imparting flexibility for more than a few engineering needs.
-Economically environment friendly solution: Geogrid material substances assist enhance universal undertaking effectivity and retailer fees by means of decreasing the want for extra substances and minimizing preservation requirements.
Applications of Geogrid Material
-Road construction: Geogrid materials are used to fortify roads, beautify load distribution, and stop street deformation for the duration of heavy traffic. This makes the street floor have a longer lifespan and decrease protection costs.

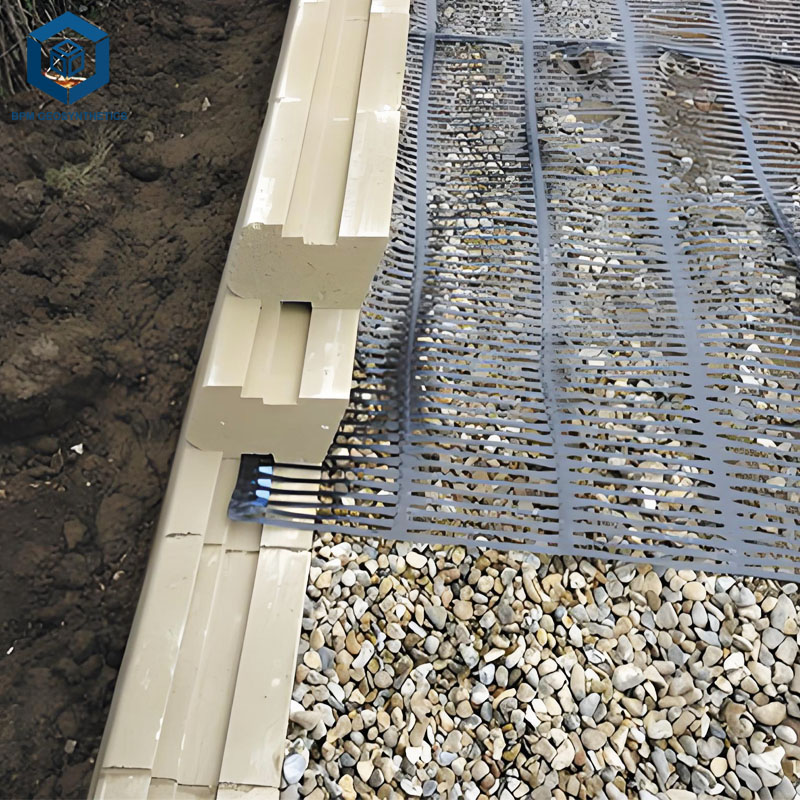

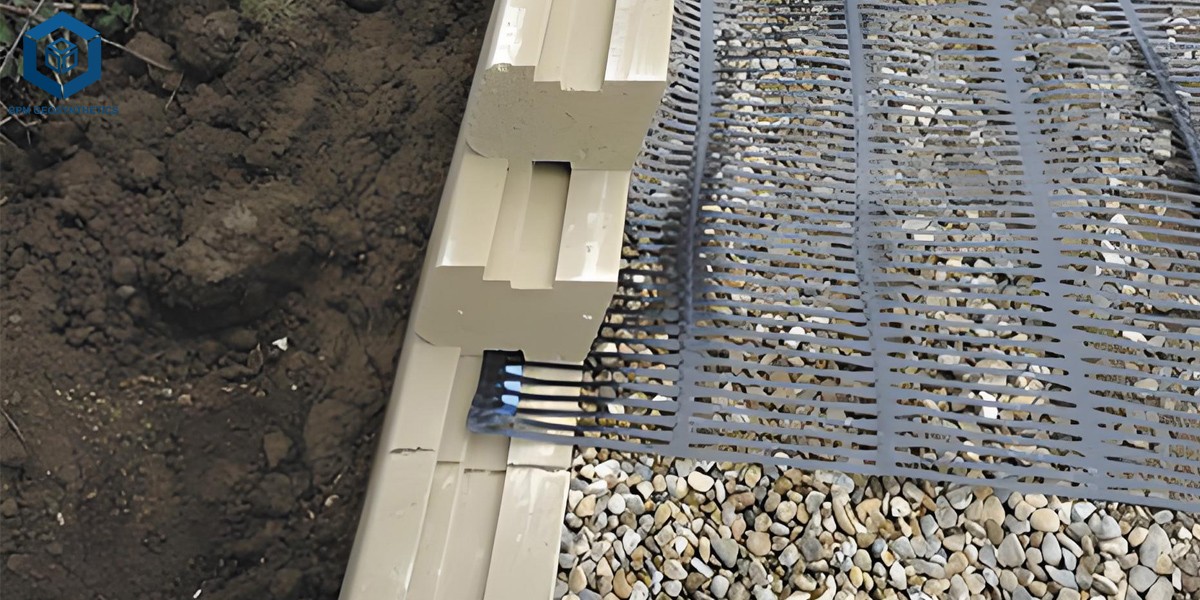

-Retaining wall : In the utility of conserving walls, geogrids grant fundamental reinforcement, stabilize the soil at the back of the wall, and forestall damage. This ensures the structural integrity and sturdiness of the wall.
-Slope steadiness : Geogrids are very high quality in slope steadiness projects, assisting to stop soil erosion and landslides. Its capability to support slopes helps set up safer infrastructure in hilly or unstable areas.
-Foundation guide : Geogrid is used for basis functions to enhance the bearing capability of vulnerable soil, limit settlement, and decorate the balance of buildings constructed on these foundations.
-Parking Lot : Geogrids fortify the floor of the parking lot to forestall ruts and deformations precipitated by way of car loads. This improves the floor situation and reduces protection requirements.
-Application of landfill site: In the development of landfill sites, geogrids stabilize the basis and slopes, enhance structural integrity, and promote high quality drainage, which is imperative for managing leachate.
-Railway Embankment : Geogrids are used in railway initiatives to supply assist for embankments, beautify music stability, limit settlement, and make sure protected and dependable transportation.
These purposes exhibit the multifunctionality and effectiveness of geogrid substances in enhancing the overall performance and lifespan of a range of civil engineering projects.
Company Profile
The Best Project Material Co., Ltd. (BPM GEOSYNTHETICS) is a leading manufacturer and exporter of high-quality geosynthetic products, including geomembranes, geotextiles, geogrids, geocells, and geosynthetic clay liners (GCL). Our products, certified by EU CE and GLP, have passed ISO 9001, ISO 14001, and OHSAS 18001 standards, and are recognized for their quality, performance, and durability.
BPM GEOSYNTHETICS has been committed to providing one-stop services for global customers in the research and development, production, sales, and export of geosynthetic materials since its establishment in 2007. The company has 120 senior technical talents specializing in geotechnical materials. The manufacturing factory covers an area of over 36000 square meters and is equipped with industry-leading automated production equipment and professional testing instruments. Product innovation, quality assurance, and customer satisfaction have always been BPM commitment to partners.
We're committed to innovation and quality, offering flexible cooperation and the best solutions for engineering projects worldwide. Our products are utilized in various sectors like aquaculture, erosion control, drainage systems, municipal engineering, mining, and landscaping. We look forward to partnering with you to solve complex challenges with our high-performance geosynthetic products.
