What is Geotextile Drainage Fabric and Its Applications?
Water is essential, but uncontrolled water can motive sizable problems, such as undermining foundations, washing away soil, and growing hazardous messes. In development and landscaping, geotextile drainage fabric performs a vital function in managing water effectively. This specialised fabric is designed to remedy complicated water troubles below the surface, making sure the durability and steadiness of a number projects. Let's discover what it is, how it works, and the place it is used.
1. Understanding Geotextile Drainage Fabric
Geotextile drainage fabric, frequently referred to as drainage cloth or filter fabric, is a permeable artificial fabric made from substances like polypropylene or polyester. It's used in civil engineering, construction, and environmental applications. Its major features consist of separation, filtration, drainage, and from time to time protection.
1.1 Geotextile Drainage Fabric - Separation
Non woven geotextile drainage fabric continues distinct soil layers, such as exceptional soil subgrade and coarse gravel aggregate, from mixing. Mixing can lead to contamination, loss of structural integrity, and decreased drainage potential over time. The geotextile fabric material acts as a bodily barrier.
1.2 Geotextile Drainage Fabric - Filtration
As water flows thru the soil in the direction of a drainage system, it contains great soil particles. The geotextile fabric filters out these particles, permitting water to ignore freely whilst keeping the soil on its upstream side. This prevents the drainage machine from clogging with sediment.
1.3 Geotextile Drainage Fabric - Drainage
Although no longer a conduit like a pipe, drainage geotextile is designed to have excessive permittivity (the capability to permit water go with the flow perpendicular via the material plane) and extensive transmissivity (the capability to permit water drift inside the airplane of the fabric). This helps acquire and pass water laterally toward outlets.
1.4 Geotextile Drainage Fabric - Protection
Non woven fabric acts as a cushion, defending prone geomembranes or drainage pipes from puncture by way of sharp rocks or gravel throughout set up and at some stage in the project's life.
2. Key Characteristics of Effective Geotextile Drainage Fabric
Not all drain filter fabric is designed to operate nicely in drainage applications. To make certain long-term efficiency and stability, high quality drainage fabric have to possess countless quintessential properties:
2.1 Geotextile Drainage Fabric - High Permeability / Permittivity
One of the most essential elements of a drainage material is its potential to enable water to waft via shortly and efficiently. A nonwoven geotextile drainage fabric with excessive permeability prevents water buildup and reduces hydrostatic strain at the back of maintaining walls, in street bases, or inside drainage systems. This ensures that water is eliminated effectively, decreasing the hazard of soil erosion, instability, or flooding.
2.2 Appropriate Pore Size (AOS – Apparent Opening Size)
The Apparent Opening Size (AOS) at once influences the filtration ability of the fabric. The AOS need to be cautiously chosen to stability soil retention and water flow. If the pores are too small, the geo drainage fabric might also clog prematurely; if too large, soil particles may additionally wash out. Typically, drainage fabric use AOS values ranging from O70 to O140, relying on soil gradation and mission requirements, to make sure ultimate filtration besides compromising flow.
2.3 Geotextile Drainage Fabric Strength and Durability
Drainage fabric ought to undergo sizeable stresses throughout set up and at some stage in their carrier life. They are required to have sufficient tensile strength, puncture resistance, and burst resistance to face up to mechanical injury from aggregates, machinery, or soil pressure. Additionally, UV resistance is crucial all through storage and managing earlier than the geofabric drainage is buried, stopping untimely degradation when uncovered to sunlight.
2.4 Geotextile Drainage Fabric Thickness and Porosity
The thickness of nonwoven drainage fabric immediately influences their performance. Thicker nonwovens typically supply increased cushioning ability, defending underlying geomembranes or soil layers from damage. At the identical time, they provide a large void quantity inside the fabric, which improves water float potential and enhances usual drainage performance.
2.5 Geotextile Drainage Fabric Clogging Resistance
Long-term performance relies upon on the fabric’s potential to withstand clogging by means of satisfactory soil particles. Effective drainage fabric are engineered with a mixture of fantastic pore dimension distribution and fiber shape to hold constant drift over time. This prevents blinding or clogging, even beneath sustained hydraulic pressure, making sure dependable overall performance for decades.
3. Why Choose Nonwoven Geotextile Drainage Fabric?
Geotextile is accessible in woven geotextile, nonwoven geotextile, and knitted types geotextile, however for drainage purposes, nonwoven geotextiles are generally the most fine and extensively adopted solution. Their special shape and overall performance traits make them most advantageous for filtration, water management, and soil stabilization in civil engineering projects.
3.1 Geotextile Drainage Fabric Structure
Nonwoven geotextiles are produced from randomly oriented artificial fibers (commonly polypropylene or polyester) that are bonded collectively via mechanical needle-punching, thermal bonding, or chemical processes. This consequences in a dense, felt-like, 3-dimensional matrix that offers both power and filtration capacity. The irregular pore shape of nonwovens creates a tortuous pathway for water flow, which enhances soil particle retention whilst keeping permeability.
3.2 Geotextile Drainage Fabric Advantages
3.2.1 Superior Filtration
The complicated geofabric filter association creates a herbal filtering effect, efficaciously trapping great soil particles whilst nonetheless permitting water to bypass through. This ensures long-term separation between soil layers and prevents soil loss into drainage systems.
3.2.2 High Permittivity
Nonwoven fabric furnish super permeability in the route perpendicular to the cloth plane. This permits water to waft thru the cloth quickly, decreasing water stress and minimizing the danger of soil erosion or hydraulic buildup.
3.2.3 Significant Transmissivity
Unlike woven fabrics, non woven geotextile for drainage permit water to glide no longer solely throughout their floor however additionally inside their thickness. This makes the material act as a skinny drainage layer itself, growing common drainage capability in functions such as holding walls, inexperienced roofs, or street bases.
3.2.4 Conformability
Due to their tender and bendy structure, nonwoven geotextiles can without problems adapt to irregular or uneven surfaces, wrapping round pipes, rocks, or soil contours. This property makes set up easier and greater superb in real-world conditions.
3.2.5 Separation
Nonwoven drainage fabric act as a dependable barrier between distinctive soil or combination layers. By stopping soil migration, they assist keep structural integrity and make sure that drainage structures do now not clog or lose functionality.
3.2.6 Cushioning
The thickness and resilience of nonwoven geotextiles grant an extra cushioning effect, defending geomembranes, drainage pipes, or different geosynthetic layers from puncture or mechanical harm throughout set up and carrier life.
3.3 Comparison with Woven Geotextile
Woven geotextiles are produced from slit-film or monofilament yarns, giving them greater tensile power however a greater ordinary pore structure. This makes them much less superb for filtration, mainly with fine-grained soils, due to the fact their decrease permittivity reduces water flow. As a result, woven geotextiles are higher proper for separation and reinforcement, whilst nonwoven geotextiles are the favored desire for major drainage and filtration applications.
4. Critical Applications of Geotextile Drainage Fabric
Geotextile drainage fabric is integral in cutting-edge civil engineering and landscaping projects. They no longer solely supply filtration and separation however additionally decorate the usual sturdiness of drainage systems. Below are the key purposes defined in detail:

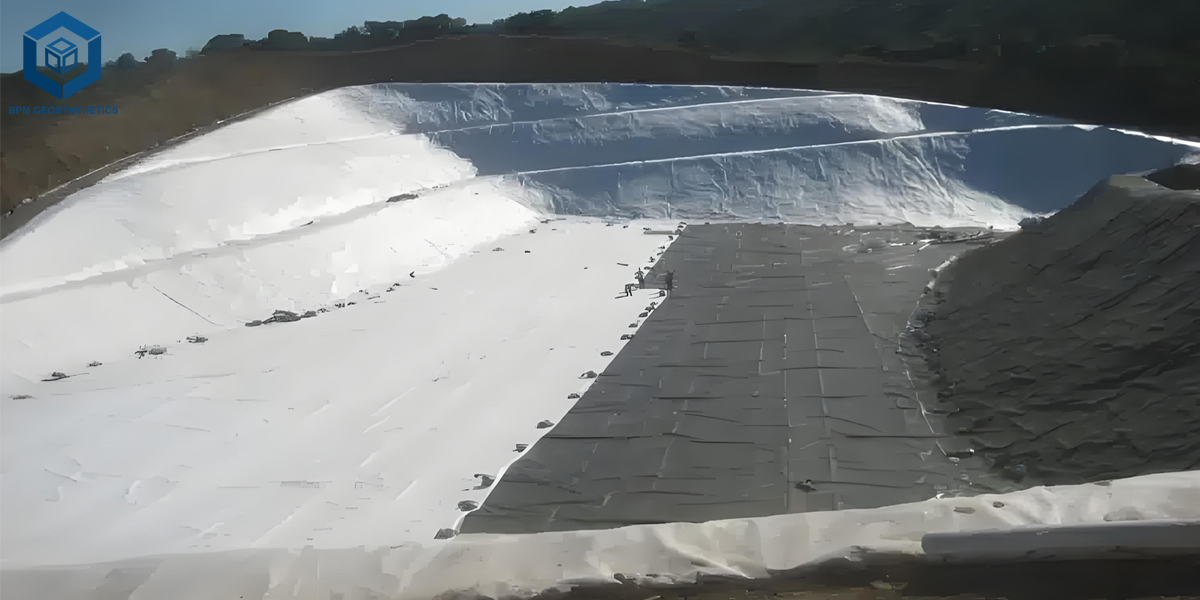

4.1 Geotextile Drainage Fabric for Retaining Walls and Structures
When water builds up in the back of conserving walls, it creates hydrostatic pressure, which can push the wall outward and reason bulging, cracking, or even whole failure. At the equal time, soil fines can migrate into drainage aggregates or weep holes, clogging the device and decreasing its efficiency.
By putting in geo fabric vertically in the back of the wall face, water is filtered and allowed to enter the gravel backfill or drain pipes, whilst exceptional soil particles are retained. This ensures long-term wall stability, reduces renovation needs, and extends the carrier existence of the structure.
4.2 Geotextile Drainage Fabric for French Drains and Trench Drains
Subsurface water should be efficiently accrued and redirected to keep away from flooding round foundations, basements, driveways, and low-lying areas. Without desirable filtration, surrounding soils infiltrate into the gravel and pipes, inflicting clogs and machine failure.
By wrapping non woven geotextile round perforated pipes and gravel envelopes, the non woven landscape fabric acts as a filter, permitting solely smooth water to pass by thru whilst preserving soil particles out. This ensures environment friendly water drift and protects underground drainage structures from silting and blockages.
4.3 Geotextile Drainage Fabric for Landscape Drainage Systems
In residential and business landscapes, poorly draining soils can motive waterlogging, root rot in plants, and injury to hardscape points such as patios or pathways.
Placing non woven landscape fabric underneath gravel paths, patios, backyard beds, and planter packing containers helps create a steady separation layer. It lets in extra rainwater to drain downward into subsoils whilst stopping soil from migrating upward and mixing with the gravel or mulch. This improves soil health, extends the lifespan of panorama installations, and ensures suited water management.
4.4 Geotextile Drainage Fabric for Underdrains for Roads, Pavements, and Sports Fields
Roads and pavements are particularly inclined to water infiltration, which weakens the base and subgrade, inflicting potholes, rutting, and cracking. Similarly, sports activities fields require superb sub-surface drainage to hold playability and forestall turf damage.
By putting geotextile fabric for driveway between the subgrade soil and combination base, engineers stop soil migration into the base course. The nonwoven geotextile fabric filters water transferring from the subgrade into the base, making sure steady load-bearing capacity, decreasing upkeep costs, and growing pavement or discipline longevity.

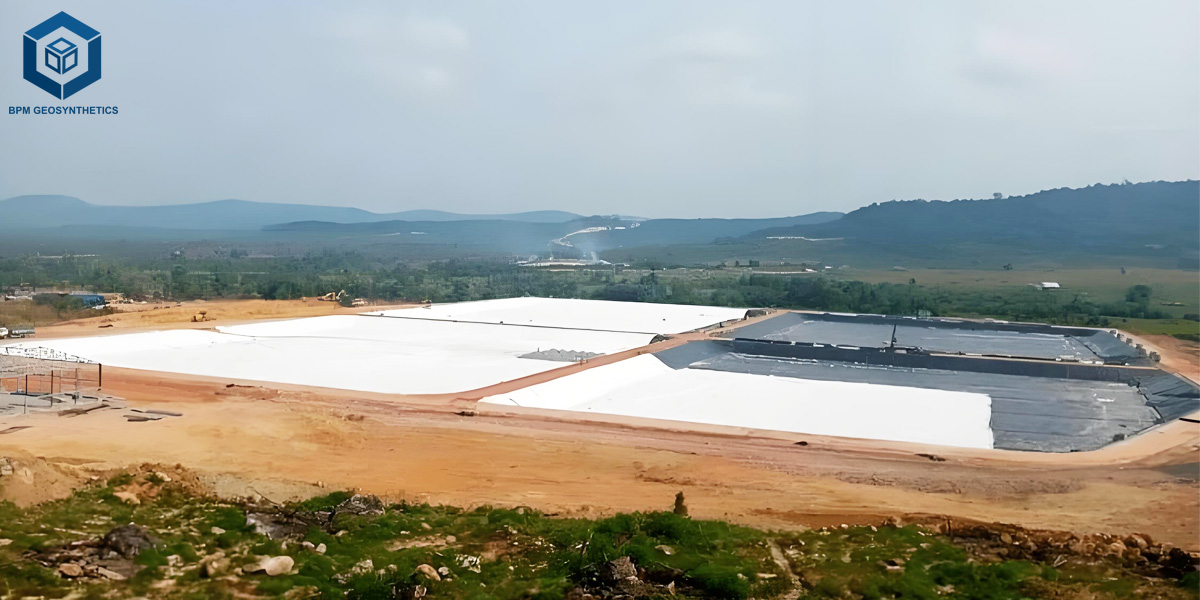

4.5 Geotextile Drainage Fabric for Landfills and Leachate Collection
Modern landfills have to manipulate leachate, the contaminated liquid fashioned when rainwater filters thru waste. This leachate ought to be gathered and handled to keep away from groundwater pollution.
Geotextile drainage fabric are used to shield geomembrane liners from puncture, encompass perforated pipes, and cowl gravel drainage layers in leachate series systems. By filtering waste particles and stopping clogging, the cloth ensures long-term effectivity of the leachate series machine and safeguards the environment.
4.6 Geotextile Drainage Fabric for Erosion Control Applications
Uncontrolled floor runoff on slopes, riverbanks, or ditches can wash away topsoil, main to extreme erosion. Riprap, gabions, or concrete mattresses are often used for slope stabilization, however besides filtration, soil can also nevertheless escape.
Placing slope protection geotextile under these shielding buildings lets in water to skip via freely whilst maintaining the soil underneath. This prevents undermining of the slope or channel lining and ensures long-term erosion resistance.
4.7 Geotextile Drainage Fabric for Pond and Reservoir Construction
In water-retaining structures, the liner have to be blanketed from punctures brought about with the aid of sharp stones, roots, or differential settlement.
Installing geotextile under geomembrane liner offers a cushioning and defensive function. In some cases, extra geotextile layers may also be positioned above the liner to forestall mechanical injury from backfilling materials. This helps hold liner integrity and extends the lifespan of ponds, reservoirs, and aquaculture facilities.

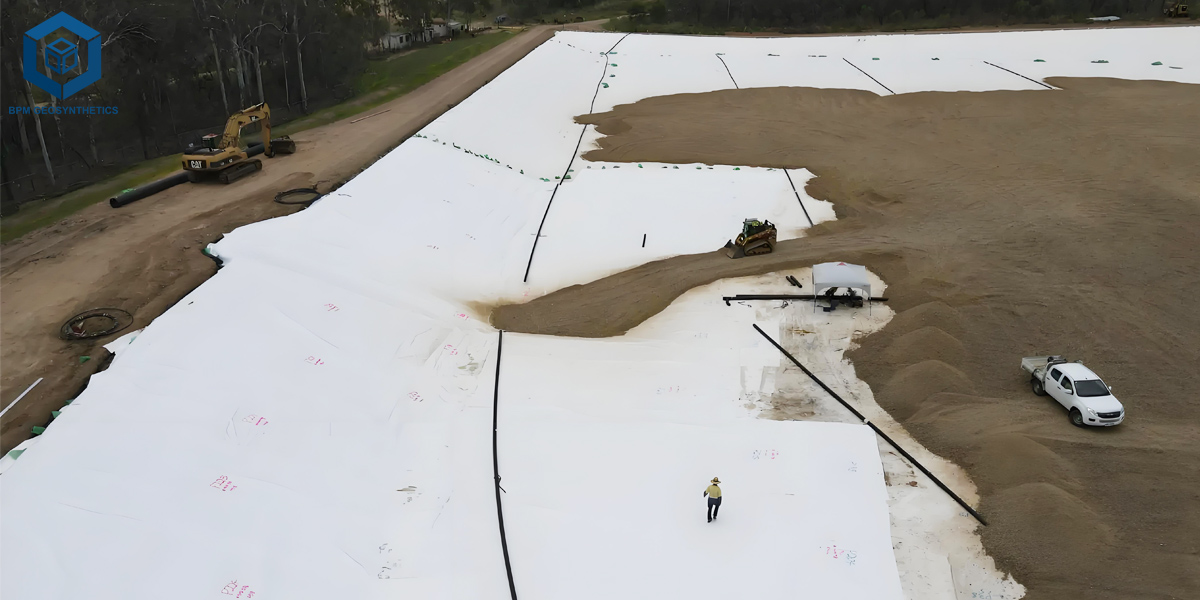

4.8 Geotextile Drainage Fabric for Green Roofs
Green roof structures require unique water management: extra water ought to drain efficiently, whilst soil particles ought to continue to be in place.
By putting in geotextile drainage needle punched geotextile fabric between the developing medium and the drainage layer, water can pass downward besides carrying pleasant soil particles. This prevents clogging of the drainage layer, helps wholesome plant growth, reduces roof load from water accumulation, and ensures sustainable rooftop landscaping.
5. Selecting the Right Geotextile Drainage Fabric
Choosing the right geotextile is vital for the long-term success of any project. Key issues include:
5.1 Application-Specific Requirements
Match the geotextile’s properties—such as Apparent Opening Size (AOS), permittivity, and tensile strength—with the useful wants of the project. For example, drainage at the back of a conserving wall requires excessive filtration efficiency, whilst roadway underdrains can also prioritize power and separation.
5.2 Soil Type
The kind of soil dictates the vital AOS.
- Fine-grained soils (silts and clays) require fabric with smaller AOS values (e.g., O70–O90) to efficiently maintain soil whilst permitting water flow.
- Coarse sands or gravels can use fabric with large AOS (e.g., O100–O140), which furnish greater permeability barring clogging.
5.3 Strength and Durability Requirements
Consider set up techniques and website conditions. Fabrics used in high-traffic or deep-burial environments want greater tensile strength, puncture resistance, and tear resistance. UV resistance can also additionally be required if the material will continue to be uncovered for extended durations earlier than covering.
5.4 Flow and Drainage Requirements
In tasks with excessive water volume, fabric with excessive permittivity and transmissivity are essential. These homes make sure speedy vertical and lateral drift except immoderate buildup of hydraulic pressure.
5.5 Compliance with Standards
Select fabric that meet diagnosed engineering and enterprise standards, such as ASTM, ISO, or AASHTO specifications, to warranty overall performance and sturdiness below predicted conditions.
6. Installation Geotextile Drainage Fabric Best Practices
Even the highest-quality geotextile can fail upfront if it is now not set up correctly. Following fantastic practices is essential:
6.1 Site Preparation
Clear the vicinity of sharp debris, rocks, and vegetation that may want to harm the fabric. The subgrade must be leveled and compacted as quintessential to supply a secure base.
6.2 Fabric Placement
Unroll the geotextile easily over the organized subgrade. Avoid wrinkles and folds that can also disrupt filtration. Overlap adjoining rolls by means of 12–24 inches (30–60 cm) to keep non-stop insurance and filtration. If the geotextile has a distinctive “soil side,” make sure it faces the right direction.
6.3 Securing the Fabric
Anchor the geotextile the use of staples, pins, stakes, or through burying edges in trenches to forestall motion at some point of backfilling. Avoid stretching the fabric excessively, as this might also compromise its filtration and electricity properties.
6.4 Covering the Fabric
Place gravel, soil, or drainage mixture cautiously on pinnacle of the geotextile. Materials need to be dropped from a low peak at first to stop puncturing or transferring the fabric. Heavy equipment have to no longer power immediately on the uncovered fabric.
6.5 Seams and Joints
In most applications, easy overlaps are sufficient. However, in necessary or high-stress installations—such as landfill leachate structures or massive keeping structures—sewn seams may additionally be required. These need to be carried out with specialised gear and strong, UV-resistant thread.
7. Conclusion
Geotextile drainage fabric is an indispensable answer for high-quality water management, imparting separation, filtration, and drainage to make certain long-term structural stability. Using the proper material prevents clogging, soil migration, and pricey failures, whilst enhancing sturdiness and overall performance throughout civil and landscaping projects.

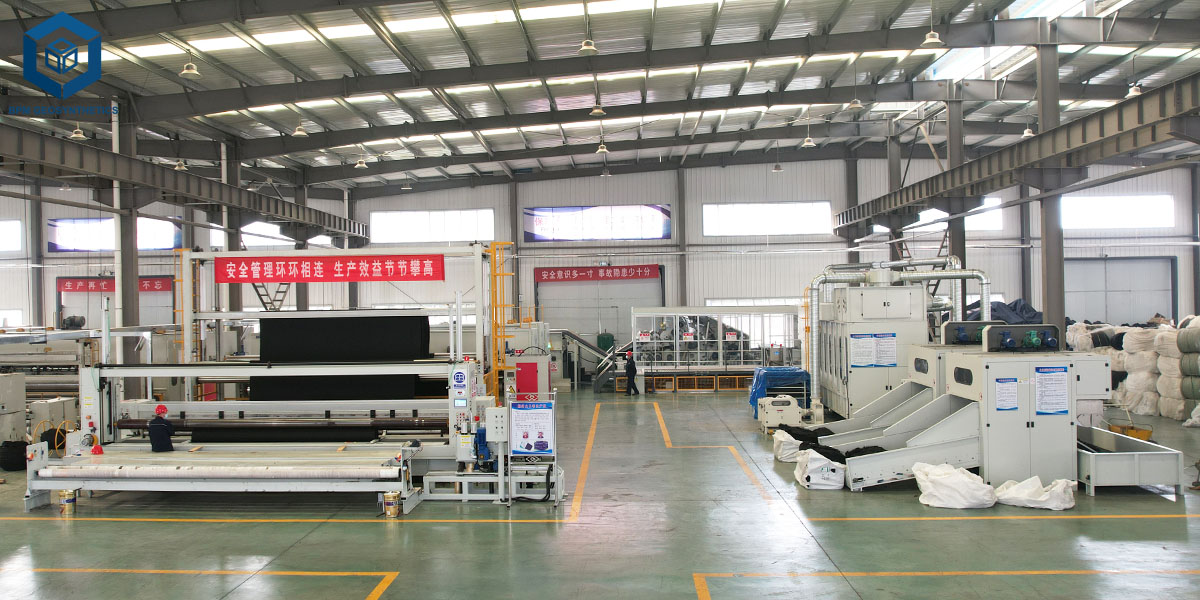

For dependable nice and established performance, The Best Project Material Co., Ltd（BPM Geosynthetics）offers high-grade geotextile drainage fabric tailor-made to numerous engineering needs. Choosing BPM Geosynthetics capacity long-lasting effects and relied on venture success.
