How to Choose Right Geocell for Slope Protection?
Geocell for slope protection is the fee effective geosythetic products which are extensively used in development for erosion control, soil stabilization on flat ground, shorelines, steep slopes, multi-layered keeping walls, channel safety and structural reinforcement for heavy duty load support roads and earth retention. BPM Geosynthetics geocell is made with best fine excessive density polyethylene (HDPE) or elastic resin to make certain consistent, longer lasting overall performance with a large vary of mobile sizes and depths to meet your undertaking and civil engineering utility requirements.
1. Geocell for Slope Protection Introduction
Slope safety is a fundamental issue of civil engineering and environmental conservation, in particular in areas susceptible to erosion, landslides, or soil instability. Geocell slope protection, a kind of geosynthetic material, have emerged as an tremendous answer for reinforcing slopes, stopping erosion, and promotion vegetation growth. However, choosing the proper geocell for slope safety requires cautious consideration of elements such as fabric type, mobile dimensions, load-bearing capacity, and environmental conditions.
This case learn about explores the key issues in deciding on the proper geocell for slope protection, supported with the aid of real-world purposes and first-rate practices.
2. Understanding Geocell for Slope Protection
Geocell slope protection is modern geosynthetic merchandise designed to grant structural balance and erosion manipulate for slopes, embankments, and different difficult terrains. They are three-dimensional, honeycomb-like constructions manufactured from high-density polyethylene (HDPE), polyester, or different superior polymer materials. Once increased and stuffed with soil, aggregate, sand, or even concrete, Geocell grid for slope protection create a inflexible but bendy confinement device that enhances load distribution, prevents soil movement, and protects towards floor erosion. This makes them a dependable answer for each transient and long-term slope stabilization projects.
2.1 HDPE Geocell for Slope Protection
- Durability: HDPE (High-Density Polyethylene) slope protection geocell is the most extensively used kind due to their robust resistance to chemical degradation, water absorption, and organic attack.
- UV Resistance: Geocell erosion control are designed to face up to extended publicity to daylight barring dropping strength, making them perfect for out of doors slope applications.
- Flexibility: Their inherent flexibility lets in them to adapt to herbal floor actions and irregular slope surfaces.
- Applications: Commonly used for slope reinforcement in highways, riverbanks, preserving walls, and landscaping initiatives the place long-term overall performance is required.
2.2 Polyester Geocell for Slope Protection
- Higher Tensile Strength: Polyester geocell furnish most beneficial tensile energy in contrast to HDPE, providing greater resistance in opposition to stretching and heavy mechanical stress.
- Reduced Flexibility: While stronger, they are barely much less bendy than HDPE geocell, which capability they are fine proper for purposes the place structural tension is greater indispensable than adaptability.
- Heavy-Load Applications: Frequently used in initiatives involving excessive load-bearing necessities such as mining roads, rail embankments, and industrial platforms.
- Durability Considerations: They may also require extra shielding measures in environments with excessive moisture or chemical exposure.
2.3 Nanocomposite Geocell for Slope Protection
- Advanced Material Engineering: Nanocomposite geocell material is better with nanoparticles that enhance their normal strength, durability, and resistance to environmental factors.
- Superior Environmental Resistance: Geocell slope can face up to severe conditions, together with extreme temperature fluctuations, aggressive chemical environments, and areas susceptible to excessive erosion.
- High Strength-to-Weight Ratio: Despite their light-weight nature, they grant exceptional load-bearing potential and lengthy carrier life.
- Specialized Applications: Often used in excessive or touchy environments such as wilderness slopes, coastal protection, and areas uncovered to harsh climate or seismic activity.
3. Key Factors in Choosing the Right Geocell for Slope Protection
Choosing the proper plastic geocell is integral to making sure long-term slope stability, erosion control, and fee efficiency. The choice procedure need to take into account a mixture of technical parameters, site-specific soil conditions, environmental exposure, and the practical necessities of the project. Below are the most important elements to consider:
3.1 Geocell for Slope Protection - Slope Gradient and Soil Type
- Steep Slopes (>30°):
Slopes with excessive inclinations demand geocell hdpe with greater tensile energy and deep phone walls. This ensures higher anchorage capacity, reduces the hazard of sliding, and presents the fundamental structural reinforcement in opposition to gravitational forces.
- Sandy or Loose Soil:
In areas with loose, sandy, or fine-grained soil, geocell slope erosion control with smaller telephone sizes are recommended. Smaller openings limit the chance of cloth washout, assist confine free particles, and enhance steadiness beneath rainfall or wind erosion.
- Clayey Soil:
Clay-rich soils have a tendency to preserve water and have bad drainage capacity. In such cases,slope protection geocell with large mobile openings are preferred. Larger cells promote higher water movement, decrease waterlogging, and decrease hydrostatic stress that ought to destabilize the slope.
3.2 Geocell for Slope Protection - Load-Bearing Requirements
- Light Loads (Pedestrian Traffic or Vegetation Cover):
For slopes the place the load is minimal—such as pedestrian walkways, landscaped areas, or vegetated embankments—standard HDPE geocells are sufficient. They furnish superb erosion manage and soil confinement besides useless cloth costs.
- Heavy Loads (Vehicular, Industrial, or Structural):

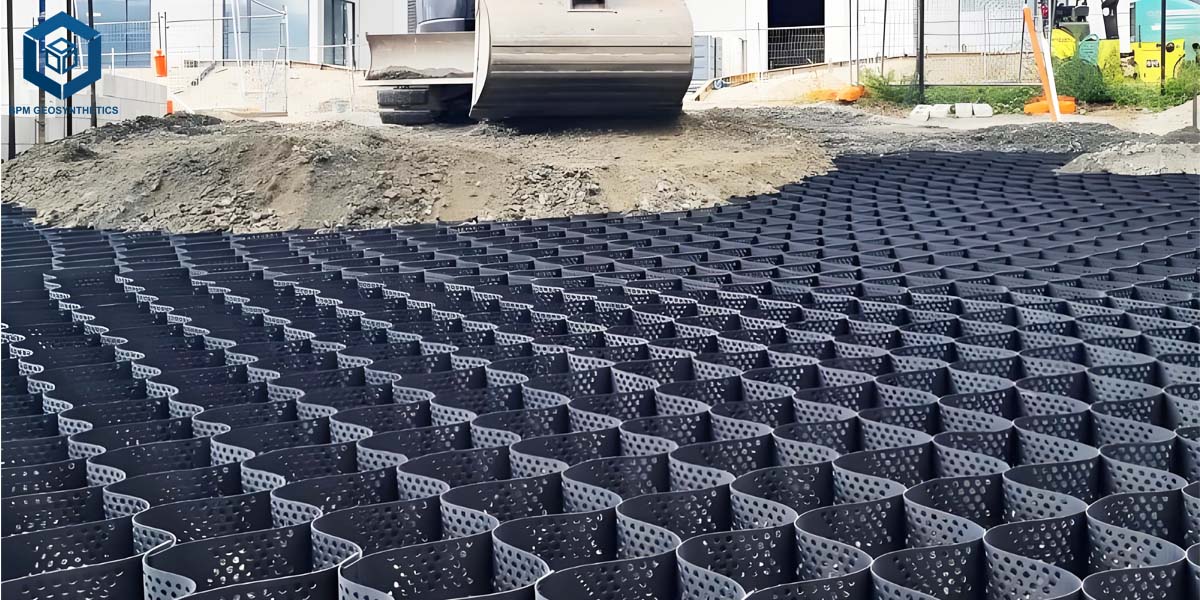

When slopes are subjected to heavy loads, such as get entry to roads, conserving walls, or mining platforms, more advantageous geocells are necessary. Reinforced polyester geocell or nanocomposite geocells are ideal, as they provide greater tensile strength, optimal rigidity, and long-term overall performance underneath mechanical stress.
3.3 Geocell for Slope Protection - Environmental Conditions
- High UV Exposure:
For areas with extreme sunlight, UV-stabilized HDPE geocells are crucial. UV resistance prevents fabric degradation and ensures the geocells keep structural integrity over time.
- Wet or Acidic Conditions:
In environments susceptible to excessive moisture levels, acidic soils, or chemical exposure, geocells need to withstand corrosion and degradation. Coated polyester geocells or chemically superior substances provide higher safety in such conditions.
- Freeze-Thaw Cycles:
In bloodless climates, freeze-thaw growth can crack or deform inflexible geosynthetics. Therefore, flexible, frost-resistant geocells are preferred. They adapt to temperature adjustments besides losing strength, lowering the chance of slope destabilization all through seasonal transitions.
3.4 Geocell for Slope Protection Size and Depth
- Smaller Geocell (10–20 cm):
Best appropriate for granular soils, smaller cells create greater confinement and reduce soil displacement. They are regularly used in areas the place precision and soil stabilization are critical.
- Larger Geocell (20–30 cm):
Larger cells are greater positive in functions the place vegetation boom is desired. They enable root structures to set up inside the telephone structure, imparting herbal erosion manage and reinforcing the slope with bio-stabilization.
- Deeper Geocell (>15 cm):
Deeper geocells furnish higher structural reinforcement, particularly in high-stress zones such as steep embankments or areas situation to heavy water flow. They enhance the load-bearing potential of the slope and minimize the possibility of failure.
3.5 Geocell for Slope Protection Installation and Maintenance
- Modular Geocell:
For slopes with irregular shapes, curves, or various inclinations, modular geocell is simpler to install. Their flexibility lets in for speedy adaptation to complicated terrain, lowering development time and labor costs.
- Perforated Design:
Perforated geocell characteristic small holes in their walls, enabling higher water drainage and root penetration. This plan is specially advisable for inexperienced slope applications, as it encourages vegetation boom whilst stopping hydrostatic strain buildup.
4. Case Study: Geocell for Slope Protection Application
4.1 Geocell for Slope Protection Project Background

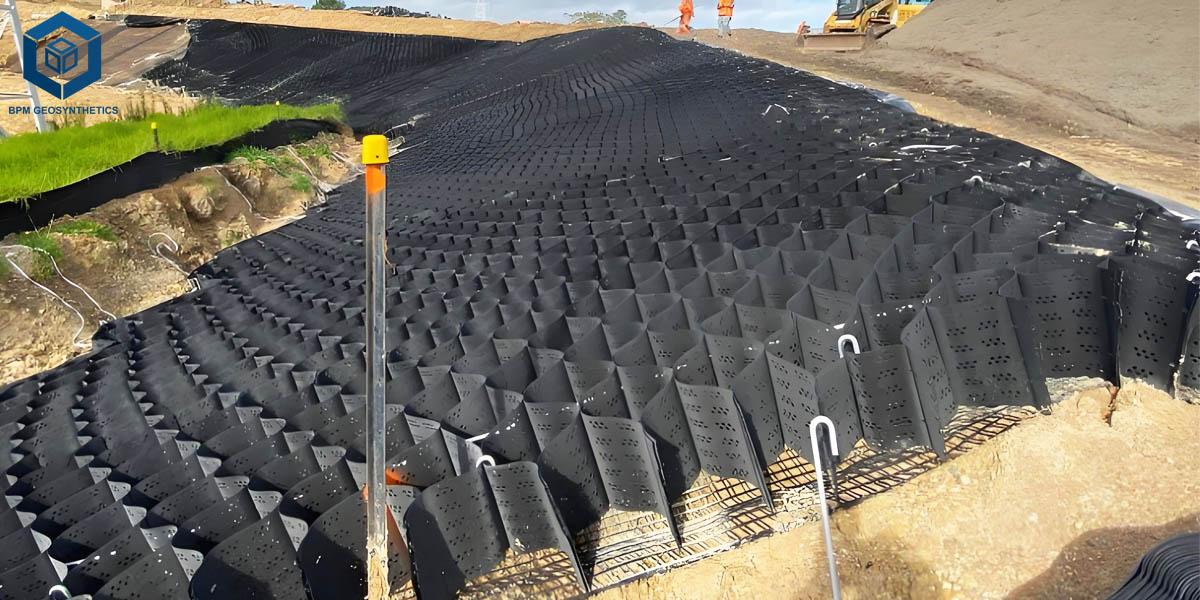

A foremost dual carriageway development task in a mountainous place encountered extreme challenges with slope stability. The herbal terrain consisted of unfastened sandy soils incredibly inclined to erosion, in particular for the duration of the heavy monsoon rains. Initial plan proposals protected traditional protecting walls; however, these had been rejected due to their excessive building charges and the giant environmental footprint. To gain both cost-efficiency and long-term slope stability, engineers explored geosynthetic options and in the end chosen geocells for erosion control reinforcement technology.
4.2 Geocell for Slope Protection Selection Process
The engineering group carried out a systematic comparison of site-specific elements earlier than finalizing the geocell solution:
- Soil Analysis: Loose, sandy soil with negative concord and excessive susceptibility to washout.
- Slope Angle: 35° incline, necessitating robust lateral confinement and deep anchorage.
- Environmental Conditions: Region characterised by using heavy seasonal rainfall and reasonable UV exposure.
- Load Requirements: Slope reinforcement wished to face up to mild to medium development automobile site visitors throughout and after assignment completion.
4.3 Chosen Geocell Solution:
- Material: UV-resistant HDPE geocell with excessive tensile strength, ensuring sturdiness beneath daylight and flexibility below soil pressure.
- Cell Size: 20 cm large cells to furnish gold standard soil confinement whilst aiding vegetation growth.
- Depth: 15 cm deep cells to enhance slope steadiness beneath each static and dynamic loads.
- Installation Method: Anchored with biodegradable stakes to decrease environmental have an impact on and permit for herbal soil integration over time.
4.4 Geocell for Slope Protection Results Achieved
After set up and one full seasonal cycle, the venture confirmed measurable and long-lasting improvements:
- Erosion Reduction: A 90% reduce in soil loss used to be recorded after the first monsoon season in contrast to untreated slopes.
- Vegetation Growth: Native grasses and shrubs correctly installed inside six months, in addition strengthening the slope via root reinforcement.
- Cost Efficiency: The answer proved 40% greater low-budget than standard concrete holding walls, decreasing each cloth and labor expenses.
- Service Life: The bolstered slope has an predicted lifespan of 20+ years with minimal maintenance, making sure long-term sustainability for the highway.
5. Best Practices for Geocell for Slope Protection Installation
Proper set up is crucial to making sure that geocells supply most overall performance and durability. The following pleasant practices grant a step-by-step framework for profitable slope safety projects:
5.1 Geocell for Slope Protection Site Preparation
- Soil Analysis: Conduct geotechnical investigations to determine soil type, compaction levels, and drainage capability (e.g., clay soils require higher drainage layout than sandy soils).
- Slope Grading: Reshape and clean the slope to the preferred gradient (ideally ≤3:1) to facilitate even geocell placement. Remove giant debris, vegetation, and sharp stones to keep away from puncturing the geocell material.
5.2 Geocell for Slope Protection Material Selection
- Geocell Type: Select HDPE geocells with splendid mobilephone peak (100–300 mm) and tensile energy based totally on slope attitude and load-bearing requirements.
- Infill Material: Use angular aggregates (50–100 mm) for positive interlock and stability. Avoid immoderate fines or rounded particles, as they decrease drainage effectivity and soil confinement.
5.3 Geocell for Slope Protection Installation Steps
- Unfolding & Anchoring: Expand the slope protection geocell panels throughout the slope and invulnerable them with ground stakes (minimum 15 cm depth) at cellphone corners and panel edges.
- Tensioning: Apply uniform anxiety to dispose of wrinkles and make certain tight contact with the slope surface. Connect adjoining panels with long lasting clips or staples for structural continuity.
- Infilling & Compaction: Place the infill in managed layers (≤150 mm) and compact every layer with a vibratory curler to obtain at least 95% Proctor density for long-term stability.
5.4 Geocell for Slope Protection Quality Control
- Post-Installation Inspection: Verify ideal cellphone alignment, impervious anchoring, and uniform compaction of infill material. Any uneven or collapsed cells must be corrected immediately.
- Drainage Systems: Integrate subsurface drainage, such as perforated pipes or geotextile filters, at the back of the geocell-reinforced slope to forestall hydrostatic stress buildup.
5.5 Geocell for Slope Protection Maintenance
- Regular Monitoring: Inspect the slope periodically, specifically after heavy rainfall or seasonal changes, to discover early symptoms of erosion, infill settlement, or cloth damage.
- Repairs: Promptly exchange broken geocell slope stabilization panels and re-compact any free infill to hold basic structural integrity.
- Vegetation Support: Encourage the institution of native vegetation inside the geocells to decorate ecological stabilization and limit long-term renovation needs.
6. Common Mistakes to Avoid in Geocell for Slope Protection
While geocells are surprisingly nice for slope stabilization, their overall performance can be compromised by using wrong layout or installation. To maximize long-term effectiveness, it is vital to keep away from the following mistakes:
6.1 Incorrect Cell Size Selection:
Choosing geocells that are too giant can substantially limit soil confinement, main to fabric washout and erosion. On the different hand, cells that are too small might also amplify prices and preclude vegetation growth. A cautious stability between cellphone size, slope gradient, and soil kind is critical.
6.2 Poor Anchoring:
Insufficient or shallow anchoring can motive geocells to shift, buckle, or give way below load. Proper anchorage—using stakes, pins, or mechanical anchors—is essential, in particular on steep slopes or in areas with heavy rainfall. Without impervious fixation, the device might also fail prematurely.
6.3 Ignoring Drainage Requirements:
One of the most frequent oversights is neglecting slope drainage. Using non-perforated geocells or failing to combine drainage layers can reason waterlogging, which will increase hydrostatic strain and weakens slope stability. Proper drainage design, which include perforated geocells, geotextile filters, or subsurface pipes, prevents water accumulation.
6.4 Using Low-Quality Materials:
Opting for cheaper, substandard geocell slope erosion control regularly consequences in untimely degradation. Materials missing UV stabilization deteriorate below sunlight, whilst these with terrible chemical resistance destroy down in acidic or saline environments. Investing in high-quality, examined merchandise ensures durability, safety, and long-term fee savings.
7. Conclusion
Choosing the proper geocell for slope protection safety requires cautious consideration of slope gradient, soil type, environmental conditions, and load requirements. As proven in the dual carriageway case study, suitable chosen and mounted geocells supply great results—reducing erosion, assisting vegetation growth, decreasing costs, and making sure long-term durability. By following first-class practices in set up and keeping off layout or fabric errors, engineers can maximize performance, making geocells a sustainable, cost-effective, and eco-friendly answer for cutting-edge slope stabilization.

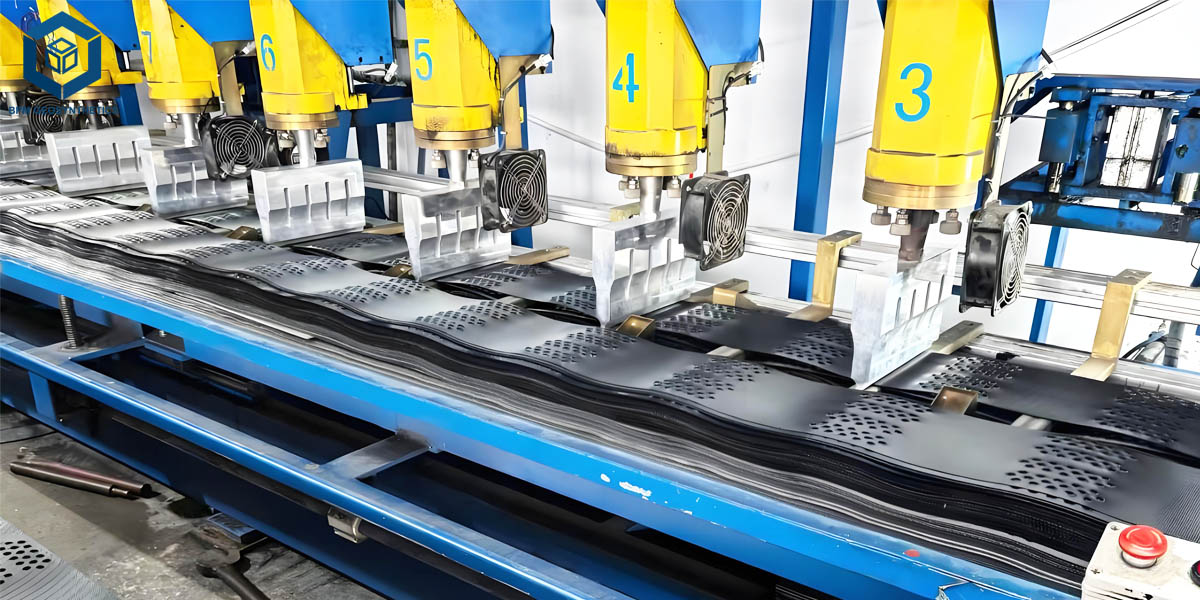

Equally vital is choosing a dependable supplier. The Best Project Material Co., Ltd.（BPM Geosynthetics）presents great HDPE geocell and associated geosynthetics engineered for strength, UV resistance, chemical durability, and long provider life. For durable, eco-friendly, and within your means slope protection, BPM geocell is relatively recommended.
